1kg 2300MHz TDD 4G Signal Repeater with 70dB Gain for LTE Band40

Brand Name:	ATNJ
Model Number:	ATNJ-DB2300/P
Price:	$139/sets 1-29 sets

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

4G Signal Booster

Network:

GPRS, 4g, GSM, 3G

Repeater Gain ::

70dB

Repeater Output ::

17--20dBm

Repeater Frequency ::

Band40 2300MHz

Cellular Network ::

2300-2400MHz/2300-2400MHz

Cellular Networks:

Coverage:

300--800m2

Weight:

1kg

Certificate ::

CE,ROHS,CCC

Antenna ::

LPDA+Ceilling Antenna

Product Type::

3G 4G Booster

Highlight:

4G Signal Repeater 70dB Gain

LTE Band40 Signal Booster

2300MHz TDD Signal Repeater

Product Description

1kg 2300MHz TDD 4G Signal Repeater with 70dB Gain for LTE Band40

Product Overview

ATNJ RF repeater with industrial design combines multiple mobile network signals to improve mobile voice and data communication, providing a cost-effective signal solution. Our repeater is easy to install and maintain, offering customers a fast deployment solution.

Key Specifications

Attribute	Value
Type	4G signal booster
Network	GPRS, 4G, GSM, 3G
Repeater Gain	70dB
Repeater Output	17-20dBm
Repeater Frequency	Band40 2300MHz
Cellular Network	2300-2400MHz/2300-2400MHz
Coverage	300-800m²
Weight	1kg
Certification	CE, ROHS, CCC
Antenna	LPDA + Ceiling antenna

Technical Specifications

Specification	Parameter
Frequency Range	TDD 2300MHz 2300-2400MHz/2300-2400MHz
Band Width	TDD 2300MHz 100MHz
Gain	68±2dB
Automatic Gain Control	31dB
MGC (Step Attenuation)	31dB@ 1dB/Step
Output Power	23dBm
Operating Temperature	-25°C to +55°C
Power Supply	DC 5V3A
Power Consumption	≤15W
Environment Conditions	IP43
Weight	0.35kg
Size	145×165×38mm

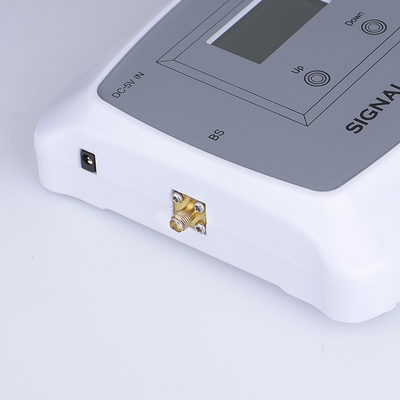

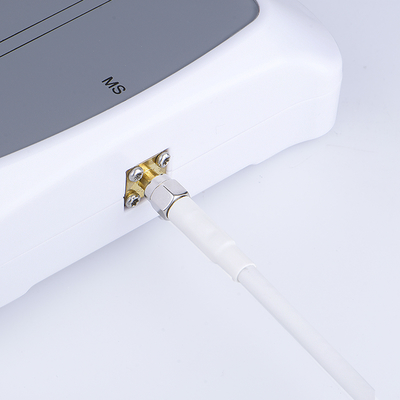

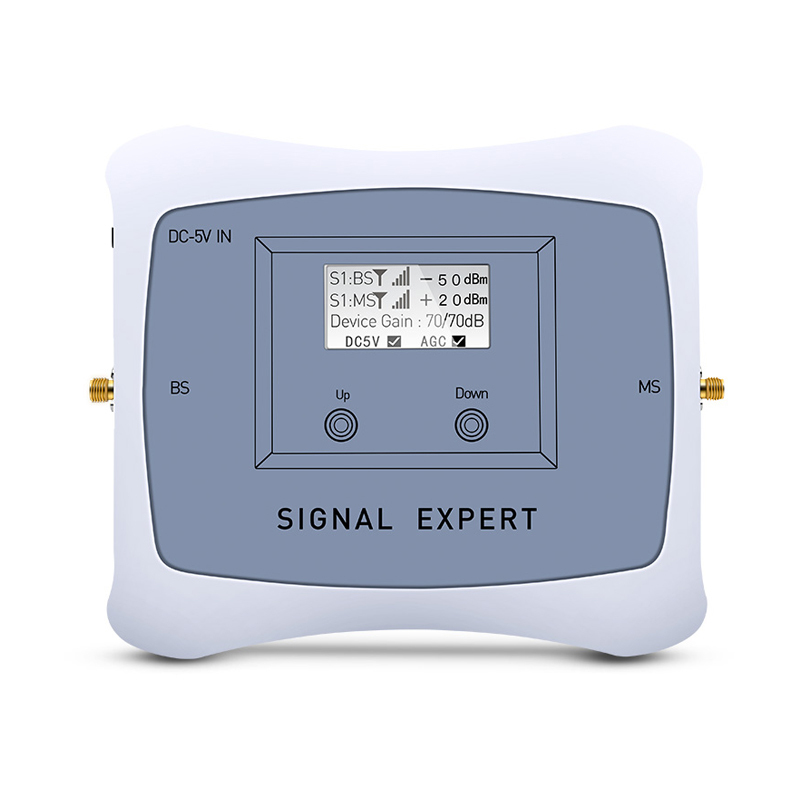

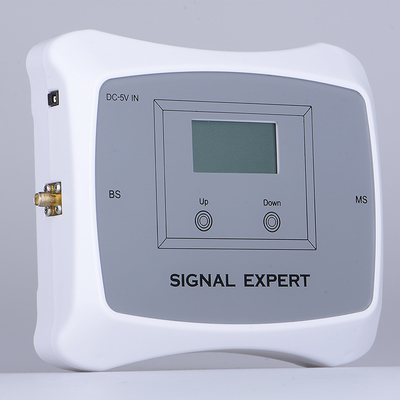

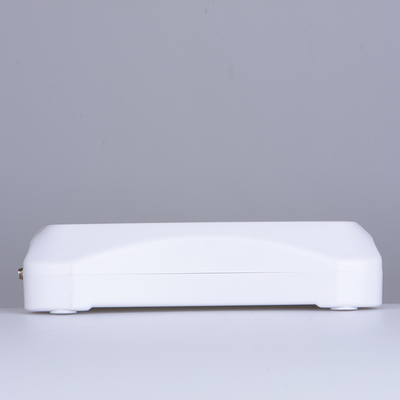

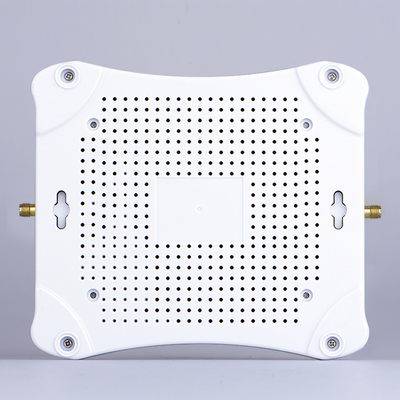

Product Images

How It Works

Wireless network signals travel through the air as waves. The outdoor antenna receives strong signals from outside and transmits them to the indoor booster. The booster amplifies the signal based on its frequency and emits the amplified signal through the indoor antenna, making it available for use.

Key Features

Intelligent installation guidance with LCD display
Real-time signal strength display
Automatic dormancy when not in use
Automatic alarm for installation errors with solutions
Automatic system gain adjustment to prevent self-excitation
Damage detection with proactive alerts
Adjustable bandwidth from 0.2 to 20MHz (customizable)
Supports 5G bandwidth up to 100MHz (customizable)
Optional WiFi monitoring and control
Optional network management system (NMS)

Packaging & Shipping

Shipping Information:

Neutral packaging standard for international shipments
Dispatch within 48 hours after payment confirmation
Please provide complete address details including zip code
Customs declaration with lower value to minimize duties (buyer responsible for any taxes)
Express shipping options available (FedEx, UPS, DHL)

Company Profile

Shenzhen ATNJ Communication Technology Company, founded in 2010, specializes in the production and development of signal boosters, wireless repeaters, and antenna systems. With a 2800sqm factory and over 50 employees, ATNJ combines experienced engineers with modern technology to deliver high-quality communication solutions.

ATNJ Advantages:

Experienced engineering team with 10+ years in communications
3-year warranty for main products (3 months for accessories)
Free repair service during warranty (customer covers shipping)
30-day full coverage for non-human damage faults
Continuous product innovation and development

Frequently Asked Questions

1. Are you a manufacturer? Can I use my own logo?

We are the factory and provide OEM/ODM services, including custom branding.

2. Can I order samples? What is your MOQ?

Yes, we welcome sample orders. Minimum order quantity is typically 1 unit.

3. Is installation difficult?

No, we provide detailed user manuals and 24/7 technical support.

4. What is your warranty policy?

We offer a 3-year warranty (excluding man-made damage and natural factors).

5. How can I get more information?

Please contact us directly with any additional questions.
