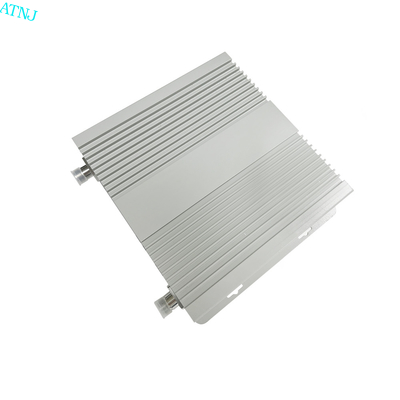

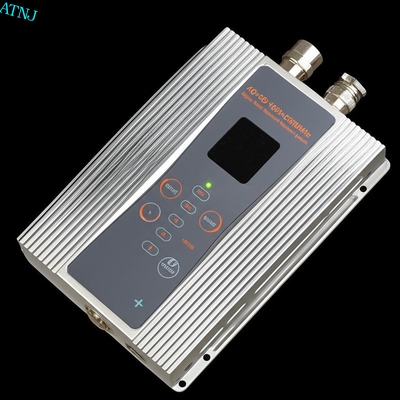

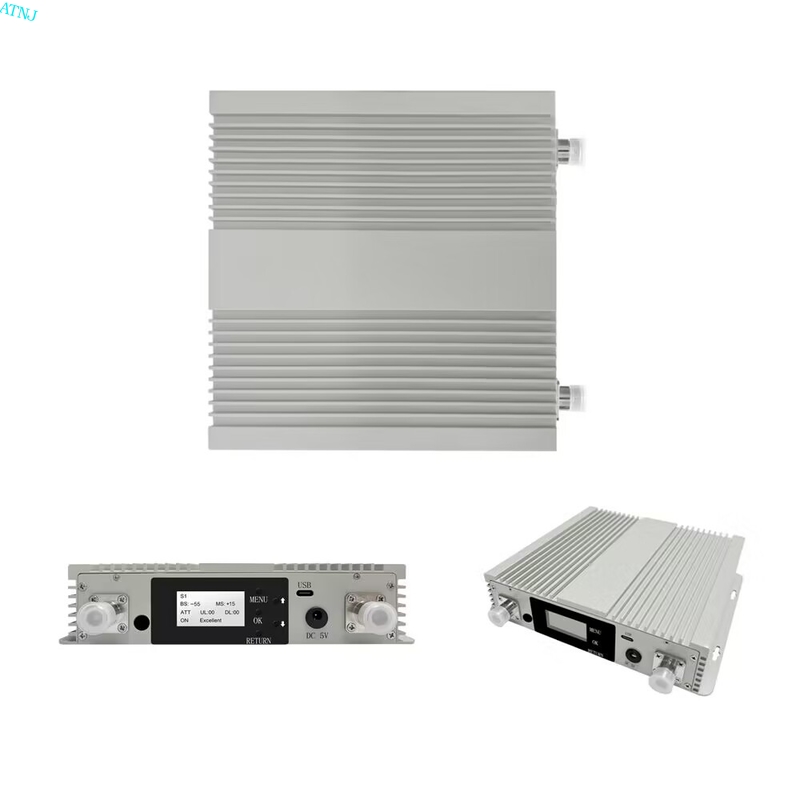

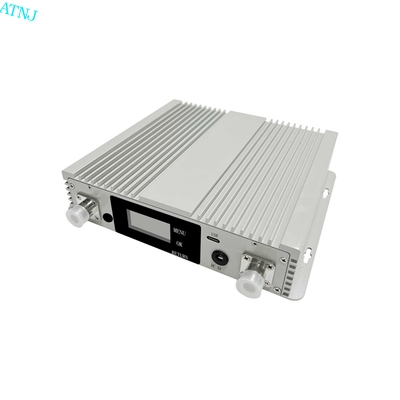

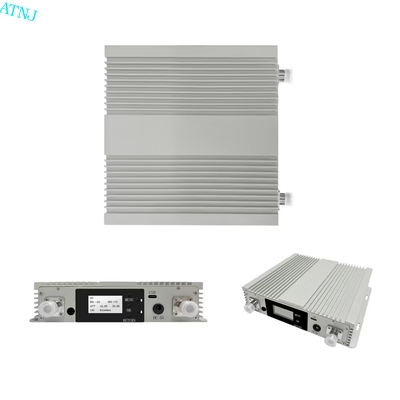

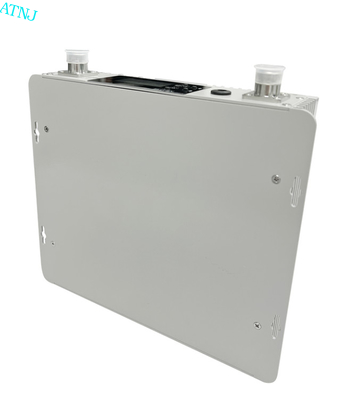

4G 5G 1800 3500MHz Digital Band Selective Repeater LTE Booster

4G 5G 1800 3500MHz Digital Band Selective Repeater LTE Booster

Brand Name:	ATNJ
Model Number:	DS-DN
MOQ:	5Pcs
Price:	＄320-338
Payment Terms:	T/T,Paypal,Western Union
Supply Ability:	10000

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong China

Certification:

CE,ROHS,CCC

Document:

4G 5G Digital Dual Band 180...20.pdf

Frequency Range:

1800MHz+3500MHz

1800MHz Bandwidth:

Supports 2 Sub-bands From 0.2 To 20MHz Bandwidth Adjusted

Spurious Emission:

9KHz-1GHz: -36dBm, 1GHz-12.75GHz: 30dBm

EVM:

Output Power:

UL: 17±2 DBm, DL:20±2 DBm

Gain:

UL:68± 3 DB DB, DL:72± 3dB

Connector Type:

N-Female

VSWR:

≤1.8

Packaging Details:

Neutral standard package

Supply Ability:

10000

Product Description

4G+5G 1800+3500MHz Digital Band Selective Repeater System LTE Booster Signal 5G Cell Phone Repeater

Product Attributes

Frequency Range	1800MHz+3500MHz
1800MHz Bandwidth	Supports 2 sub-bands From 0.2 To 20MHz Bandwidth Adjusted
Spurious Emission	9KHz-1GHz: -36dBm, 1GHz-12.75GHz: 30dBm
EVM	8%
Output Power	UL: 17±2 dBm, DL:20±2 dBm
Gain	UL:68± 3 dB dB, DL:72± 3dB
Connector Type	N-Female
VSWR	≤1.8

Digital 1800+3500MHz Band Selective Repeater System

ATNJ Digital RF repeater with industrial design is specially designed for mobile provider needs. It combines multiple mobile network signals to improve mobile voice and data communication, providing a cost-effective signal solution. The ATNJ Digital RF repeater features easy installation and maintenance, helping signal providers implement fast solutions.

Product Features:

Digital bandwidth-adjustable features allow for seamless adaptability to different frequency bands
LCD display shows input/output signal strength
Auto isolation detection
Improves any three mobile networks simultaneously
Built-in Auto Gain Control (AGC) & Auto Level Control (ALC)
Center frequency movable
OMS Lite for remote/local control and monitoring (Optional)

Technical Specifications

Item	Uplink	Downlink
Frequency Range	LTE1800 MHz: 1710-1730MHz, 1745-1765MHz 3500 MHz: 3400-3600MHz	LTE1800 MHz: 1805-1825MHz, 1840-1860MHz 3500 MHz: 3400-3600MHz
Bandwidth	1800 MHz: 20*2MHz
RF Carriers ARFCN Filtering	Digital
Gain	68± 3 dB	72± 3dB
Gain control range	30dB/1dB
Minimum Input power	≥ -90dBm
Gain Flatness / PB Ripple	≤8dB
Max Output power	17± 2dBm	20± 2dBm
Automatic Level Control	≥ 25dB
Noise Figure	≤ 8dB
EVM	1800MHz ≤8 3500MHz≤3.5
Group Delay	≤ 6 µs
ACPR	≤ -36dBc
Error Vector Magnitude	≤ 8%
VSWR	≤ 2.5
Impedance	50 Ω
Out of Band Gain(1800MHz)	2,5 £ f_offset_CW< 5,0 MHz \| ≤60 dB 5,0£f_offset_CW<10,0 MHz \| ≤45 dB 10,0 MHz £ f_offset_CW \| ≤35 dB
Connectors Type	N-Female Type
Power Supply	DC 5V5A
Power consumption	≤ 20W
Operating temperature range	-25°C to +55°C
Dimensions	23423052 mm
Storage temperature range	-40°C to +85°C
Control & Monitoring	Local: Via USB WI FI	Remote: MODEM(Optional)

Applications

Customization

Welcome to ATNJ custom service for digital band selective repeater. Our model number is DS-W1. This product originates from Guangdong, China, with CE, ROHS, and CCC certifications. Minimum order quantity is 5 units at $280-300 per unit. We provide neutral standard packaging with a delivery time of 5-10 days. Payment methods include T/T, PayPal, and Western Union. Our supply capacity is 10,000 units.

Product specifications include N(Female) connector type, noise figure ≤5dB, operating temperature range of -25℃ to +55℃, output power of 17-20dBm, and DC 24V/5A power supply.

Support and Services

Our Mobile Signal Repeater comes with comprehensive technical support and services. Our 24/7 technical support team is available to answer questions and troubleshoot issues. We offer installation, maintenance, and repair services, with expert advice on optimal system deployment for your specific environment. Customer satisfaction is our top priority.
