2G 4G Dual Band Repeater 900MHz 1800MHz 70dB Gain Cellular Amplifier

2G 4G Dual Band Repeater 900MHz 1800MHz 70dB Gain Cellular Amplifier

Brand Name:	ATNJ
Model Number:	JS-DB900/1800/P
MOQ:	5Pcs
Price:	USD+70---85+kit
Payment Terms:	T/T,Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability:	1000+unit+per day.

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS，CCC，TUV,BV， ISO

Document:

900+1800MHz C03 Mobile Sign...er.pdf

900MHz Frequency Range:

890-915MHz / 935-960MHz

1800MHz Frequency Range:

1710-1785MHz / 1805-1880MHz

Color:

Black,Gold,Customized

Warranty:

3 Years

Packing Size:

52x21x16cm

Products Type:

Sxjc Amplificateur Parabole, Cell Signal Boosters

Packaging Details:

Standard neutral packing,52x24x16cm(1 kit), 4kits as 1 carton(54x49x33cm)

Supply Ability:

1000+unit+per day.

Highlight:

1800MHz Dual Band Repeater

2G 4G Dual Band Repeater

900MHz GSM LTE Booster

Product Description

2G 4G 900MHz 1800MHz Dual Band Repeater GSM LTE Cellular Amplifier

Product Overview

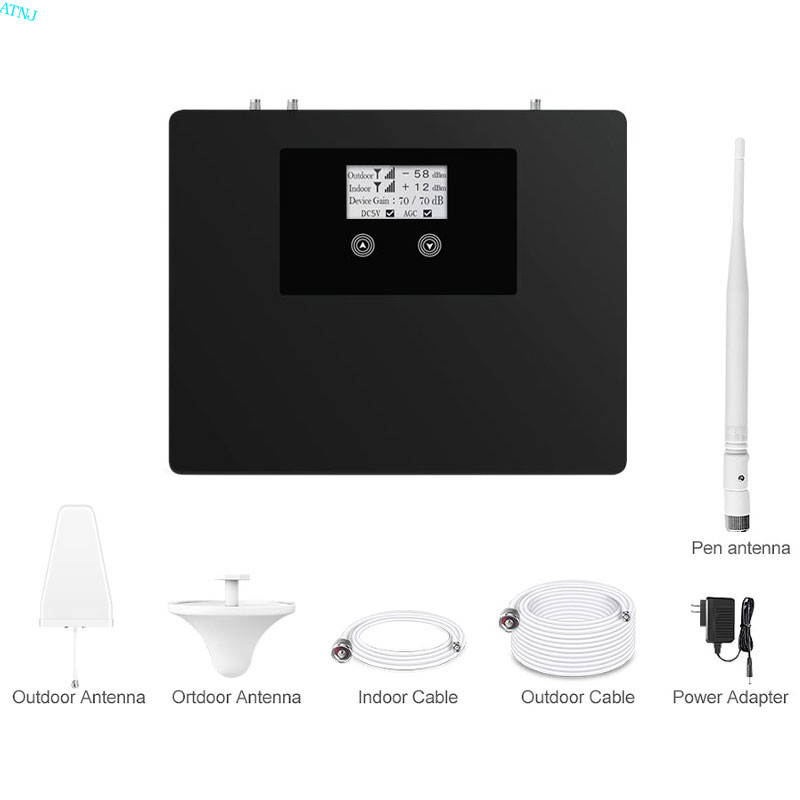

This latest generation LCD amplifier boosts weak GSM signals across two frequencies (900MHz and 1800MHz). The LCD screen displays real-time signal strength, setup guidance, error messages, power levels, and ALC data. An additional port allows connection of an internal antenna for even signal distribution.

Key Features

Dual-band amplification (900MHz + 1800MHz) for comprehensive coverage
Effective coverage for medium-sized spaces up to 300 m² (3200 ft²)
70dB gain with 20dBm max output power
ALC function prevents excessive signal output and interference
Compatible with most European mobile networks (France, Italy, Spain, Germany, etc.)
Improves 4G internet speeds and call reliability while reducing phone radiation

Technical Specifications

Specification	Parameters
Frequency Range	Uplink: 890-915MHz, 1710-1785MHz Downlink: 935-960MHz, 1805-1880MHz
Frequency Bandwidth	25MHz & 75MHz
Gain	70dB
Output Power	20dBm
Operating Temperature	-10°C to +55°C (Operation) -20°C to +60°C (Storage)
Power Supply	AC 110~220V±20%, 50/60Hz
Dimensions	16513040 mm
Weight	≤0.8 kg (Net)
