Band Selective Repeater
>
Digital Band Selective Signal Booster 4G 5G LTE 800MHz Support Bandwidth adjustment

Digital Band Selective Signal Booster 4G 5G LTE 800MHz Support Bandwidth adjustment

Brand Name: ATNJ
Model Number: AS-140-135-L
Detail Information
Place of Origin:
shenzhen
Certification:
CE, RoHs, CCC, ISO9001
800MHz Frequency Range:
832-862MHz/791-821MHz
Bandwidth:
30MHz; Supports From 0.2 To 20MHz Bandwidth Adjusted
Power Supply:
AC 100-240V, 50/60Hz
Output Power:
Up To 30 DBm
Group Delay:
≤ 3 μs
Auto Shut Off:
Available
Product Description

Product Description:

The AS-140-135-L Band Selective Repeater is a powerful tool for enhancing 4G signals. It is ideal for use in areas where the signal strength is weak or where there are dead spots. The repeater is especially useful in buildings, tunnels, and other areas where signal attenuation is a problem. It can also be used in vehicles such as cars, trucks, and buses to enhance 4G signals.

The AS-140-135-L Band Selective Repeater is designed to work with all major 4G cell phone networks. It is also compatible with WIFI/Type-C port devices. This makes it a versatile tool for enhancing the signals of a wide range of devices.

Overall, the AS-140-135-L Band Selective Repeater is an excellent tool for boosting 4G signals. Its versatility, ease of use, and powerful amplification capabilities make it an ideal tool for a wide range of applications.



Features:

  • Digital filtering supports adjustable bandwidth, each Band Supports Up to 1 sub-bands
  • Each Sub band is turned on and off, and gain control is performed separately.
  • Supports from 0.2 to 20MHz bandwidth adjusted(Customized).
  • USB Cable for local connection
  • LCD display the input/output signal strength
  • Support Wifi control and monitor via Android smart device
  • Supports 4G LTE FDD Technologies

Technical Parameters:

AS-140-135-L 800 MHz
Frequency Range Uplink 832-862MHz
Downlink 791-821MHz
Number of Sub-Bands 1 Sub-Band
Bandwidth Each Sub-Band support (0.2 - 20 MHz adjustable) Step/200KHz
Max Gain Uplink 65dBm
Downlink 70dBm
Manual Gain Control 31 dB in step of 1 dB
Automatic Gain Control ≧ 20 dB
Gain Flatness ≦ ±2 dB (peak-to-peak)
Max. Input Power Without Damage 0 dBm
Output Power Uplink 17 ±2dBm
Downlink 20 ±2dBm
Operating band unwanted emissions Comply with 3GPP
Spurious Emission 9kHz~1GHz ≦ -36dBm
1GHz~12.75GHz ≦ -30dBm
ACPR ±20MHz Uplink≦-36dBc/Downlink≦-45dBc
±40MHz Uplink≦-45dBc/Downlink≦-50dBc
EVM ≦ 8
Frequecy Stability ≦ ±0.01 ppm
Noise Figure ≦ 8 dB
VSWR ≦ 2
Group Delay ≦ 3 μs
RF Connector Digital Band Selective Signal Booster 4G 5G LTE 800MHz Support Bandwidth adjustment 0N-Female
Impedance 50 Ω
Power Supply Input: AC 100~240 V; Output: DC 5 V/ 5 A
Power Consumption ≦ 75 W
Dimensions 234*230*52mm
Weight ≦ 5 Kg
IP Rating IP40
Operating Temperature -25 ℃ to 55 ℃
Control &
Monitoring
Local WIFI/Type-C port
Remote NA

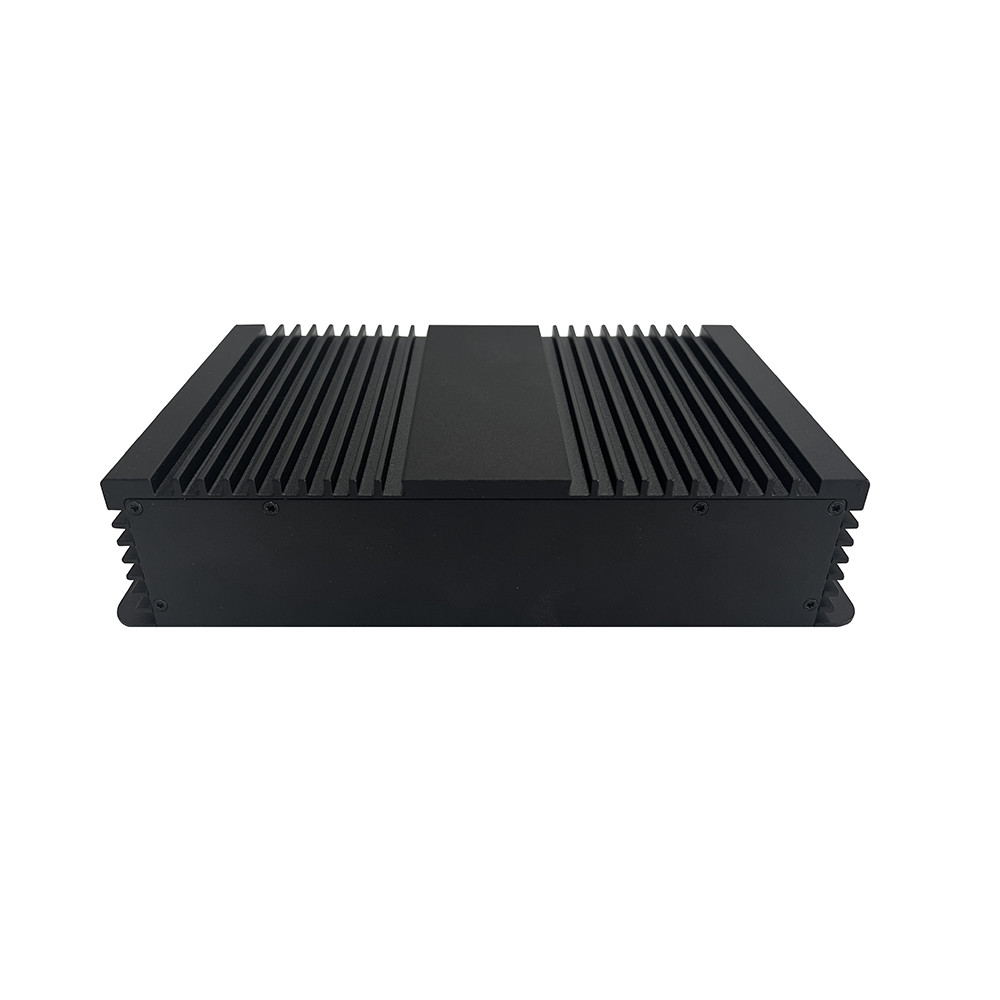

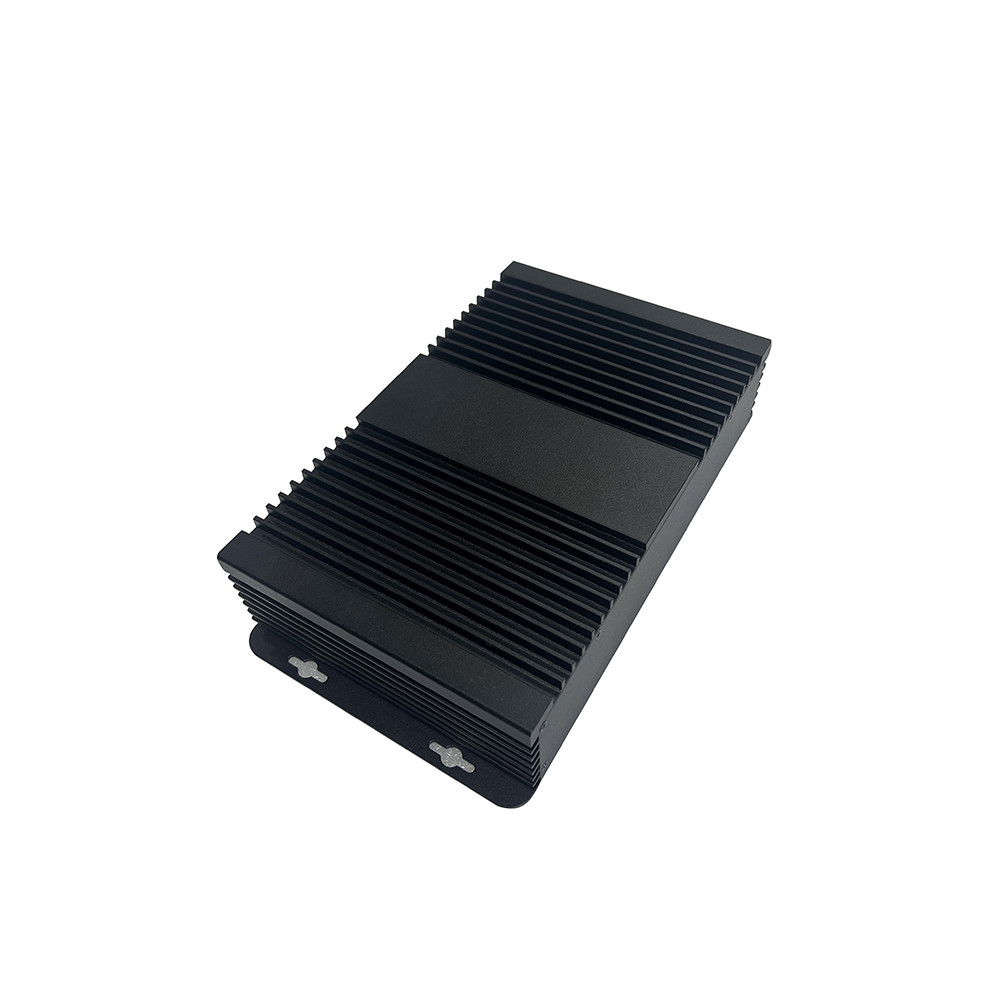

Digital Band Selective Signal Booster 4G 5G LTE 800MHz Support Bandwidth adjustment 1Digital Band Selective Signal Booster 4G 5G LTE 800MHz Support Bandwidth adjustment 2Digital Band Selective Signal Booster 4G 5G LTE 800MHz Support Bandwidth adjustment 3Digital Band Selective Signal Booster 4G 5G LTE 800MHz Support Bandwidth adjustment 4Digital Band Selective Signal Booster 4G 5G LTE 800MHz Support Bandwidth adjustment 5Digital Band Selective Signal Booster 4G 5G LTE 800MHz Support Bandwidth adjustment 6Digital Band Selective Signal Booster 4G 5G LTE 800MHz Support Bandwidth adjustment 7Digital Band Selective Signal Booster 4G 5G LTE 800MHz Support Bandwidth adjustment 8Digital Band Selective Signal Booster 4G 5G LTE 800MHz Support Bandwidth adjustment 9Digital Band Selective Signal Booster 4G 5G LTE 800MHz Support Bandwidth adjustment 10Digital Band Selective Signal Booster 4G 5G LTE 800MHz Support Bandwidth adjustment 11Digital Band Selective Signal Booster 4G 5G LTE 800MHz Support Bandwidth adjustment 12

Packing and Shipping:

Product Packaging:

The Band Selective Repeater product will be packaged in a sturdy cardboard box with foam inserts to protect the product during shipping. The product will be secured in place using packing materials to prevent any damage during transportation. The packaging will also include a user manual and warranty information.

Shipping:

The Band Selective Repeater product will be shipped via a trusted courier service. The shipping cost will depend on the destination and chosen shipping speed. The product will be shipped within 3 business days after the order is placed and payment is received. The customer will receive a tracking number to monitor the shipment status. Delivery time may vary depending on the destination and chosen shipping speed.
