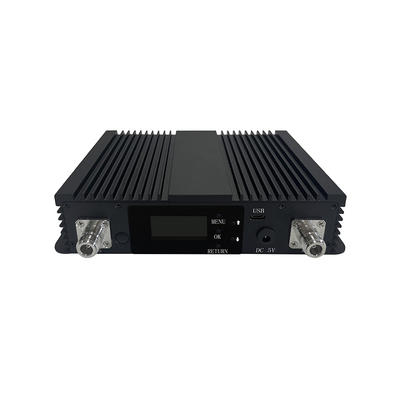

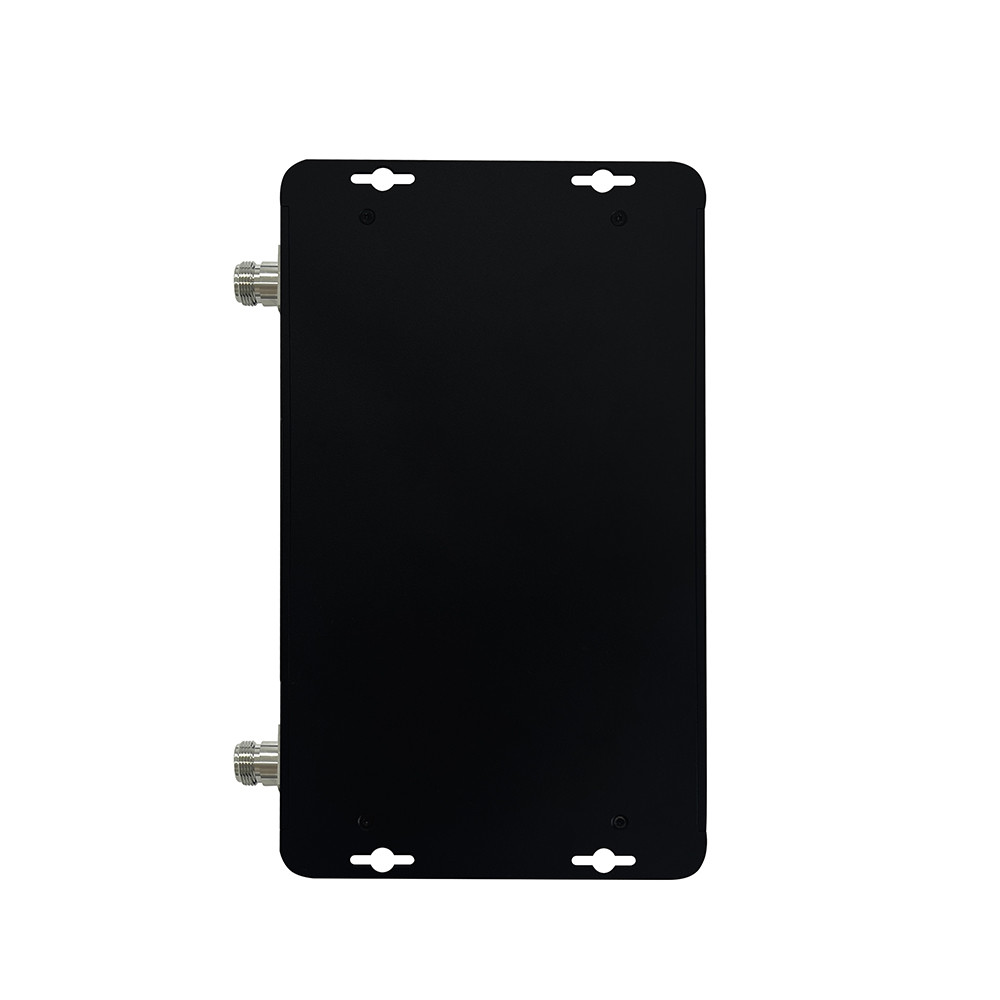

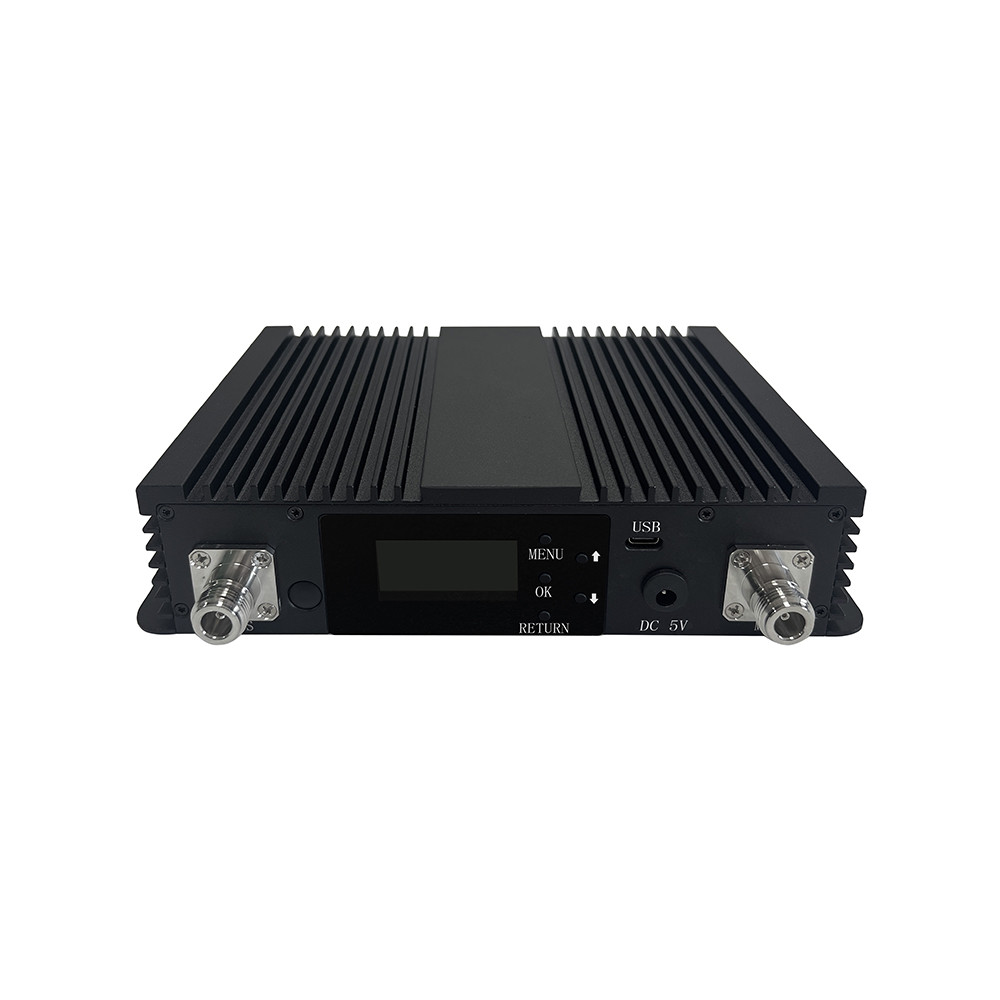

800MHz Cellphone Signal Booster 4G 5G Mobile Signal Repeater Digital Selective Amplifier

Product Details

Place of Origin: shenzhen

Brand Name: ATNJ

Certification: CE, RoHs, CCC, ISO9001

Model Number: AS-140-135-L8

Document: 140-135-800MHz Digital sele...nd.pdf

Payment & Shipping Terms

Minimum Order Quantity: 5Pcs

Price: $200-240

Packaging Details: Neutral standard package 44x44x30cm

Delivery Time: 5--8 working days

Payment Terms: T/T, Paypal, Western Union, Alibaba insurance payment

Get Best Price
Highlight:

800MHz mobile signal repeater

,

4G mobile signal repeater

,

5G mobile signal repeater

Model:
AS-140-135-L8
Frequency Range:
UL 832-862MHz, DL 791-821MHz;
Operating Temperature:
-10°C To +55°C
Auto Shut Off:
Available
Sub Bands:
Supports 1 Sub-Bands From 0.2 To 20MHz Bandwidth Adjusted
Output Power:
UL:15dBm; DL:≥17dBm
Band:
Single Band
Power Supply:
AC 100-240V, 50/60Hz
Model:
AS-140-135-L8
Frequency Range:
UL 832-862MHz, DL 791-821MHz;
Operating Temperature:
-10°C To +55°C
Auto Shut Off:
Available
Sub Bands:
Supports 1 Sub-Bands From 0.2 To 20MHz Bandwidth Adjusted
Output Power:
UL:15dBm; DL:≥17dBm
Band:
Single Band
Power Supply:
AC 100-240V, 50/60Hz
800MHz Cellphone Signal Booster 4G 5G Mobile Signal Repeater Digital Selective Amplifier

Features:

① Intelligent to guide the installation with LCD
② Real time display the signal strength.
     Automatic dormancy when no user make the calling.
③ Automatic alarm when installation mistake and provide the according solution.
④ Automatic adjust the system gain to avoid the repeater self-excitation.
⑤ Initiative reminding when the device was damaged.
⑥ Supports from 0.2 to 35MHz bandwidth adjusted(Customized) ,Supports 5G bandwidth,40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .
⑦ WIFIMonitor+Control(Customized),NMS(network management system), Function Optional

Technical Parameters:

SPECIFICATIONS
Parameters
Frequency Range (Customers to Choose)
800MHz UL: 832-862MHz; DL: 791-821MHz
Frequency Bandwidth
25MHz; Supports 1 Sub-bands From 0.2 To 20MHz Bandwidth Adjusted
Gain
UL: 65dB DL: 70dB
Automatic gain control (Step Attenuation)
Automatic gain control (Step Attenuation)
Auto Gain Control
20dB Min.
Output Power(Customers to Choose)

UL:15dBm DL:≥17dBm


Spurious Emission
≤ -15dBm/30kHz
9kHz~1GHz: ≤ -36dBm/30kHz
1GHz~12.75GHz: ≤ -30dBm/30kHz
In-band Ripple
≤ 3dB
Inter-Modulation Attenuation ACPR
≤ -40dBc / 30kHz (measured under rated output power)
VSWR
<=2
I/O Impedance
50 Ω
Noise Figure
≤ 5dB
RF Connector(Customers to Choose)
N (Female)
Operating Temperature
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C
Power Supply
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)
Weight
≤5 kg(Net)
Alarm Monitoring System
Alarm for uplink self-oscillation
Indication LED
Power supply
800MHz Cellphone Signal Booster 4G 5G Mobile Signal Repeater Digital Selective Amplifier 0800MHz Cellphone Signal Booster 4G 5G Mobile Signal Repeater Digital Selective Amplifier 1800MHz Cellphone Signal Booster 4G 5G Mobile Signal Repeater Digital Selective Amplifier 2800MHz Cellphone Signal Booster 4G 5G Mobile Signal Repeater Digital Selective Amplifier 3800MHz Cellphone Signal Booster 4G 5G Mobile Signal Repeater Digital Selective Amplifier 4800MHz Cellphone Signal Booster 4G 5G Mobile Signal Repeater Digital Selective Amplifier 5800MHz Cellphone Signal Booster 4G 5G Mobile Signal Repeater Digital Selective Amplifier 6

800MHz Cellphone Signal Booster 4G 5G Mobile Signal Repeater Digital Selective Amplifier 7800MHz Cellphone Signal Booster 4G 5G Mobile Signal Repeater Digital Selective Amplifier 8800MHz Cellphone Signal Booster 4G 5G Mobile Signal Repeater Digital Selective Amplifier 9800MHz Cellphone Signal Booster 4G 5G Mobile Signal Repeater Digital Selective Amplifier 10800MHz Cellphone Signal Booster 4G 5G Mobile Signal Repeater Digital Selective Amplifier 11

How It Works:

Wireless network signal travels through the air in the form of waves. The outdoor antenna is designed to receive the weak signal
from the air and transmit it to the indoor booster. The booster amplifies the signal based on its frequency and emits the
amplified signal through the indoor antenna making it available for use.
