Brand Name: | ATNJ |
Model Number: | AS-140-GD |
MOQ: | 5Pcs |
Price: | USD+300---320+pcs |
Packaging Details: | Standard neutral packing,48x46x18cm(1pcs), |
Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |

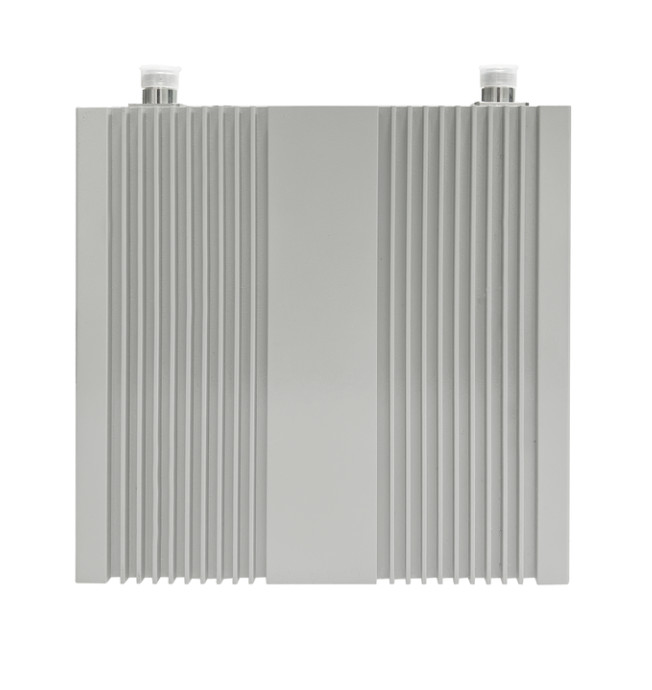

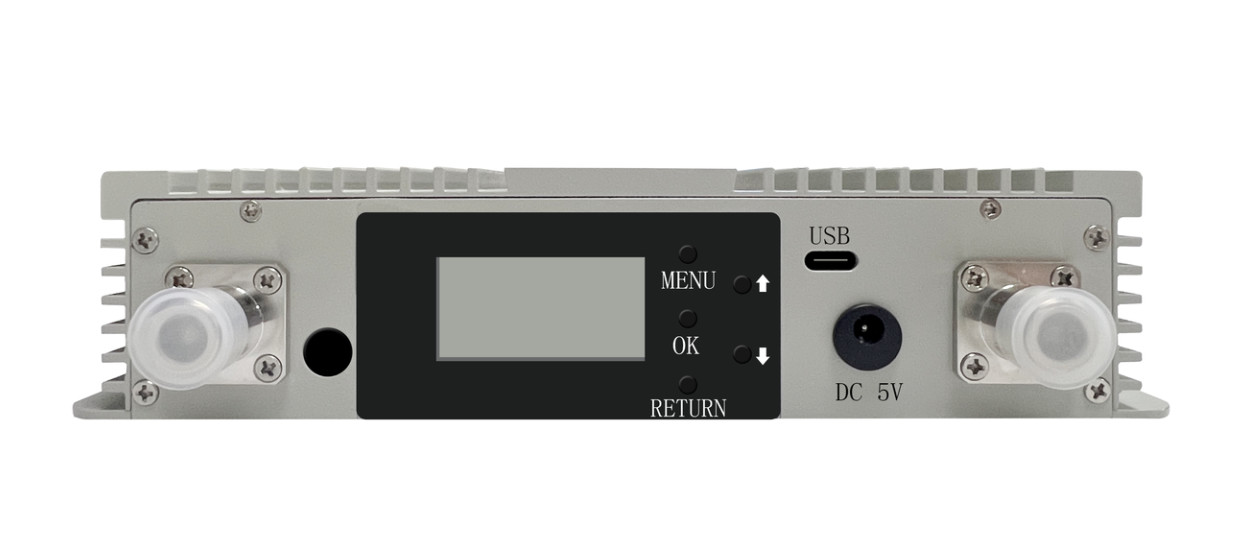

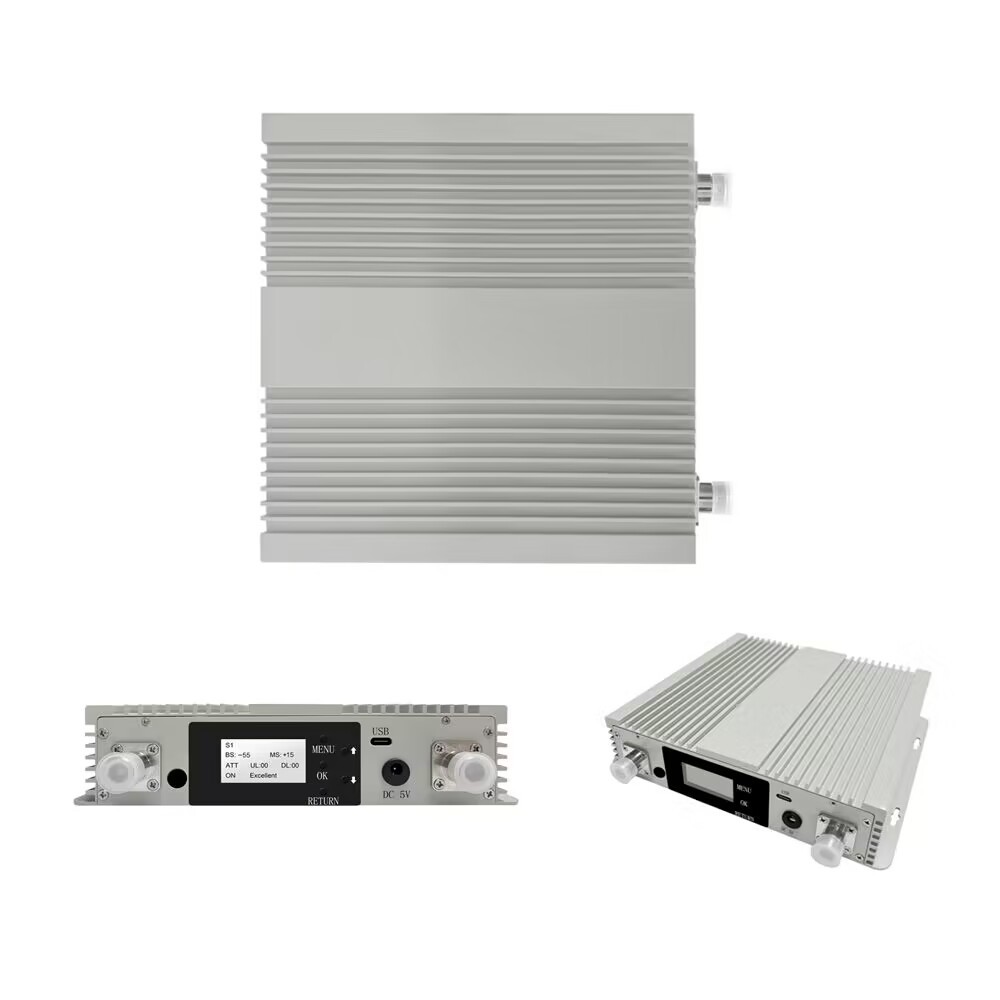

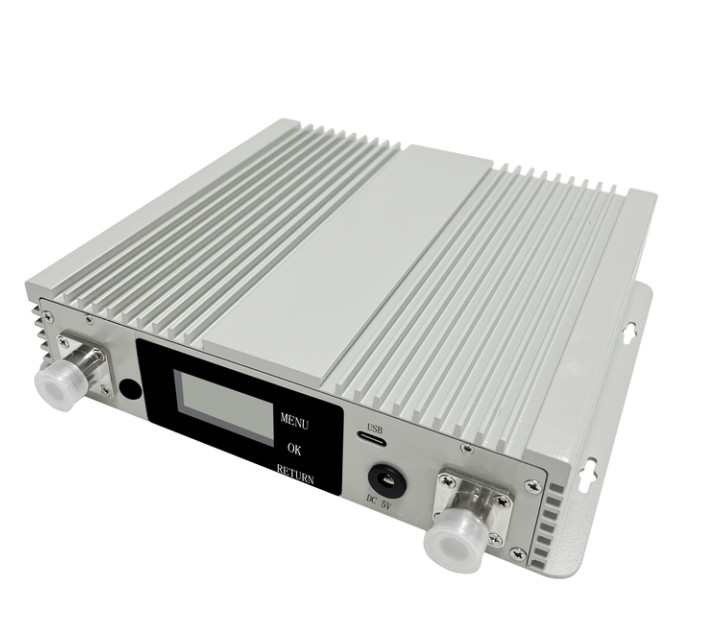

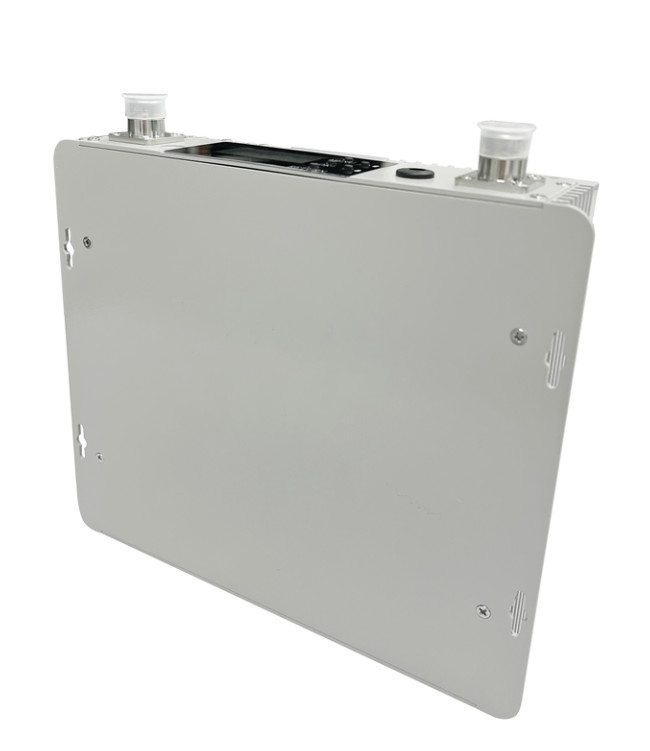

Repeater 2G 4G LTE Mobile Dual Band GSM 900 1800 Digital Selective Signal Booster/Amplify
Technical Specifications:
SPECIFICATIONS
|
PARAMETERS
|
||
Frequency Range
|
900MHz
|
UL880–915MHz, DL925–960MHz
|
|
1800MHz
|
UL1710–1785MHz, DL1805–1880MHz
|
||
Bandwidth
|
900MHz
|
35MHz, supports 1 subband from 0.2 to 20 MHz adjusted
|
|
1800MHz
|
75MHz, supports 1 subband from 0.2 to 20 MHz adjusted
|
||
Gain
|
UL:65dB DL:70dB
|
||
Output Power
|
UL:15dBm DL:≥17dBm
|
||
Automatic Gain Control
|
31dB
|
||
MGC (Step Attenuation)
|
20dB@ 1dB/Step
|
||
Spurious Emission
|
9 kHz -150 kHz/1kHz
|
≤-36dBm
|
|
150 kHz - 30 MHz/10kHz
|
≤-36dBm
|
||
30 MHz - 1 GHz/100kHz
|
≤-36dBm
|
||
1 GHz- 12.75 GHz/1MHz
|
≤-30dBm
|
||
ACPR
|
Downlink Fully comply with 3GPP 36.106
|
||
Fully comply with 3GPP 36.106
|
|||
Unwanted emissions
|
Fully comply with 3GPP 36.106
|
||
Out Of Band Gain
|
900MHz
|
1MH≤f_offset<5MHz, UL:≥30 dB,DL:≤ 30 dB
|
|
1800MHz
|
1MH≤f_offset<5MHz, UL:≥ 30 dB,DL:≤ 30 dB
|
||
EVM
|
≤8
|
||
VSWR
|
≤2
|
||
Ripple
|
900MHz
|
≤6dB
|
|
|
1800MHz
|
≤6dB
|
|
Noise Figure
|
≤8dB
|
||
Delay
|
≤3μs
|
||
I/O Impedance
|
50Ohm
|
||
RF Connector(Customers to Choose)
|
N -Type (Female)
|
||
Remote Control
|
Cloud WEB platform
|
||
Local Control
|
WIFI/Type-C port
|
||
Operating Temperature
|
-25°~+55°
|
||
Power Supply
|
DC 5V/5A
|
||
Power consumption
|
≤75W
|
||
Environment Conditions
|
IP43
|
||
Humidity
|
≤90%
|
||
Weight
|
≤3kg
|
||
Size
|
234*230*52 (mm)
|
Product Description
A2: It is produced in Shenzhen.
A4: It supports 900MHz and 1800MHz frequencies.
|
