| Brand Name: | ATNJ |
| Model Number: | AS-140-GDW |
| MOQ: | 5Pcs |
| Price: | USD+340---380+pcs |
| Packaging Details: | Standard neutral packing,48x46x18cm(1pcs), |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |

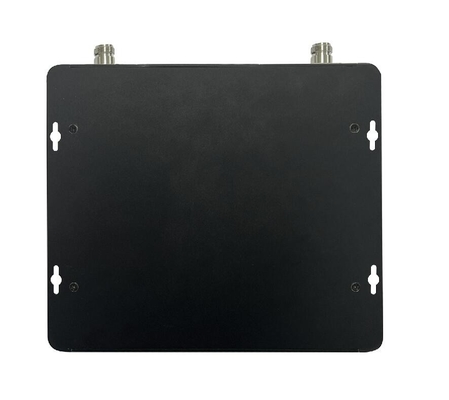

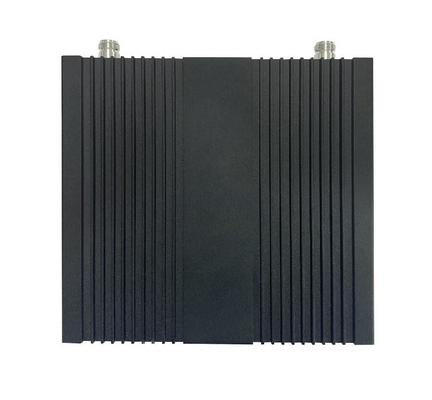

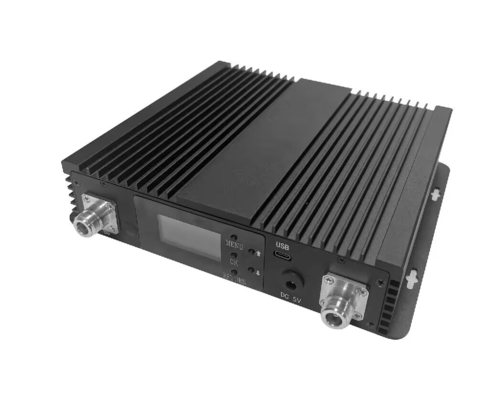

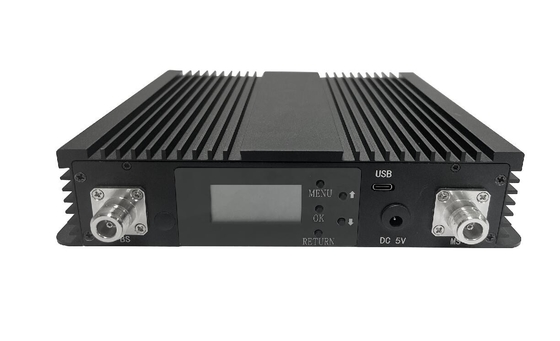

Digital Tri band Repeater 900/1800/2100MHz Cellular Network Booster Mobile Signal Booster AGC MGC ALC
Technical Specifications:
|
SPECIFICATIONS
|
PARAMETERS
|
||
|
Frequency Range
|
900MHz
|
UL880–915MHz, DL925–960MHz
|
|
|
1800MHz
|
UL1710–1785MHz, DL1805–1880MHz
|
||
|
2100MHz
|
UL1920–1980MHz, DL2110–2170MHz
|
||
|
Bandwidth
|
900MHz
|
35MHz, supports 1 subband from 0.2 to 20 MHz adjusted
|
|
|
1800MHz
|
75MHz, supports 1 subband from 0.2 to 20 MHz adjusted
|
||
|
2100MHz
|
60MHz, supports 1 subband from 0.2 to 20 MHz adjusted
|
||
|
Gain
|
UL:65dB DL:70dB
|
||
|
Output Power
|
UL:15dBm DL:≥17dBm
|
||
|
Automatic Gain Control
|
31dB
|
||
|
MGC (Step Attenuation)
|
20dB@ 1dB/Step
|
||
|
Spurious Emission
|
9 kHz -150 kHz/1kHz
|
≤-36dBm
|
|
|
150 kHz - 30 MHz/10kHz
|
≤-36dBm
|
||
|
30 MHz - 1 GHz/100kHz
|
≤-36dBm
|
||
|
1 GHz- 12.75 GHz/1MHz
|
≤-30dBm
|
||
|
ACPR
|
Downlink Fully comply with 3GPP 36.106
|
||
|
Fully comply with 3GPP 36.106
|
|||
|
Unwanted emissions
|
Fully comply with 3GPP 36.106
|
||
|
Out Of Band Gain
|
900MHz
|
1MH≤f_offset＜5MHz, UL:≥30 dB,DL:≤ 30 dB
|
|
|
1800MHz
|
1MH≤f_offset＜5MHz, UL:≥ 30 dB,DL:≤ 30 dB
|
||
|
2100MHz
|
1MH≤f_offset＜5MHz, UL:≥ 30 dB,DL:≤ 30 dB
|
||
|
EVM
|
≤8
|
||
|
VSWR
|
≤2
|
||
|
Ripple
|
900MHz
|
≤6dB
|
|
|
|
1800MHz
|
≤6dB
|
|
|
2100MHz
|
≤6dB
|
||
|
Noise Figure
|
≤8dB
|
||
|
Delay
|
≤3μs
|
||
|
I/O Impedance
|
50Ohm
|
||
|
RF Connector(Customers to Choose)
|
N -Type (Female)
|
||
|
Remote Control
|
Cloud WEB platform
|
||
|
Local Control
|
WIFI/Type-C port
|
||
|
Operating Temperature
|
-25°~+55°
|
||
|
Power Supply
|
DC 5V/5A
|
||
|
Power consumption
|
≤75W
|
||
|
Environment Conditions
|
IP43
|
||
|
Humidity
|
≤90%
|
||
|
Weight
|
≤3kg
|
||
|
Size
|
234*230*52 (mm)
|
||
Product Description
1.
Q: Why choose us for cooperation?
A: We have the professional engineer to develop and make them suit for all over the world.we also will deal with all the problem when you have problem and reply to you at any time.
2.
Q: Does the signal booster work have radiation or not ?
A: Yes,but just little ,it also can reduce the radiation when you calling ,because it will have more radiation if no signal when you dialing on your phone.So don’t worry and use in house ,it is better for you than not use when no signal in house.
3.
Q: Can I install a signal repeater myself?
A: Absolutely. There is no technical expertise required to install your mobile signal repeater kit. Each kit contains everything needed to improve the mobile coverage in your home/office and includes instructions that will guide you through the simple steps necessary to install your repeater.
4.
Q: Can this mobile signal repeater create a signal where there is no cell signal before?
A: The mobile signal repeater cannot produce a signal, only amplify a weak one.
|
