Customized Digital Band Selective Repeater Multi Sub-Band 900 1800 2100MHz
| 900MHz Frequency Range: | 880–915MHz/ 925–960MHz | 1800MHz Frequency Range: | 1710–1785MHz/1805–1880MHz |
| 2100MHz Frequency Range: | 1920–1980MHz/2110–2170MHz | 900MHz Bandwidth: | 35MHz, Supports 1 Subband From 0.2 To 20 MHz Adjusted |
| 1800MHz Bandwidth: | 75MHz, Supports 1 Subband From 0.2 To 20 MHz Adjusted | 2100MHz Bandwidth: | 60MHz, Supports 1 Subband From 0.2 To 20 MHz Adjusted |
| Local Control: | WIFI/Type-C Port | Remote Control: | Cloud WEB Platform By SIM Card |
| Gain: | UL:65dB DL:70dB | Output Power: | UL:15dBm DL:≥17dBm |
| RF Connector(Customers to Choose): | N -Type (Female) | ||
| High Light: | Customized Band Selective Repeater,WIFI Type-C Band Selective Repeater |
||

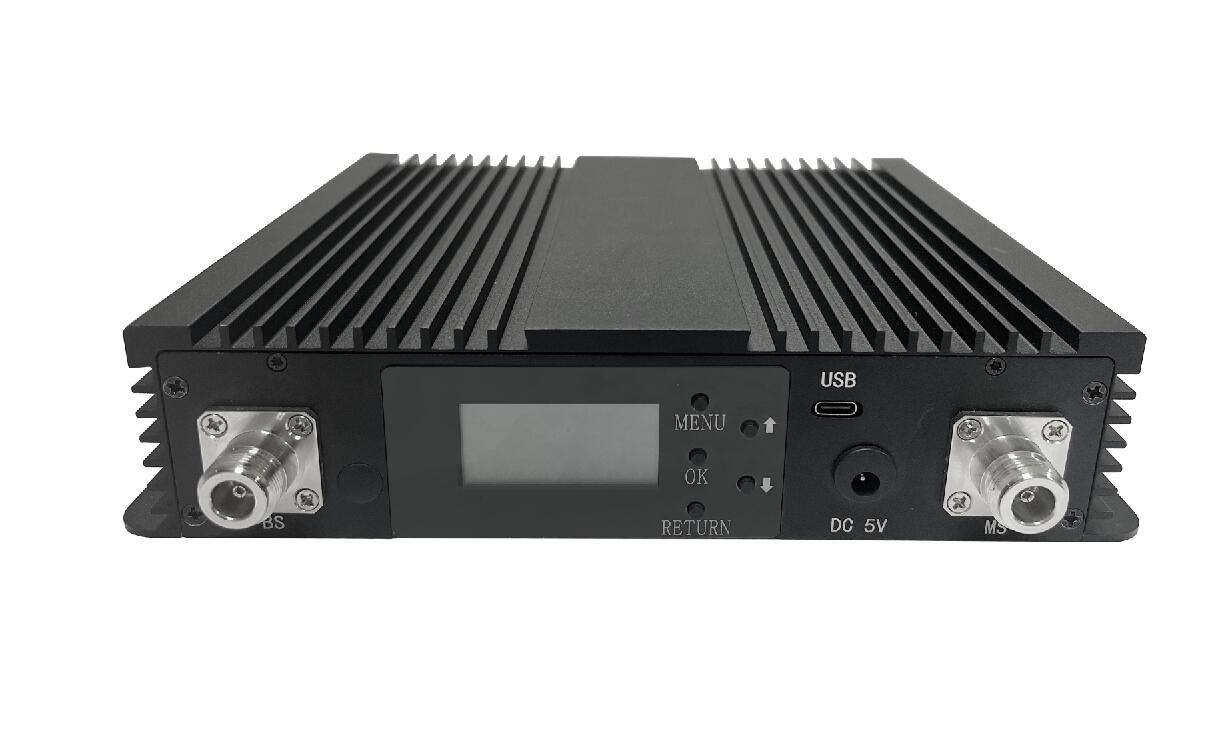

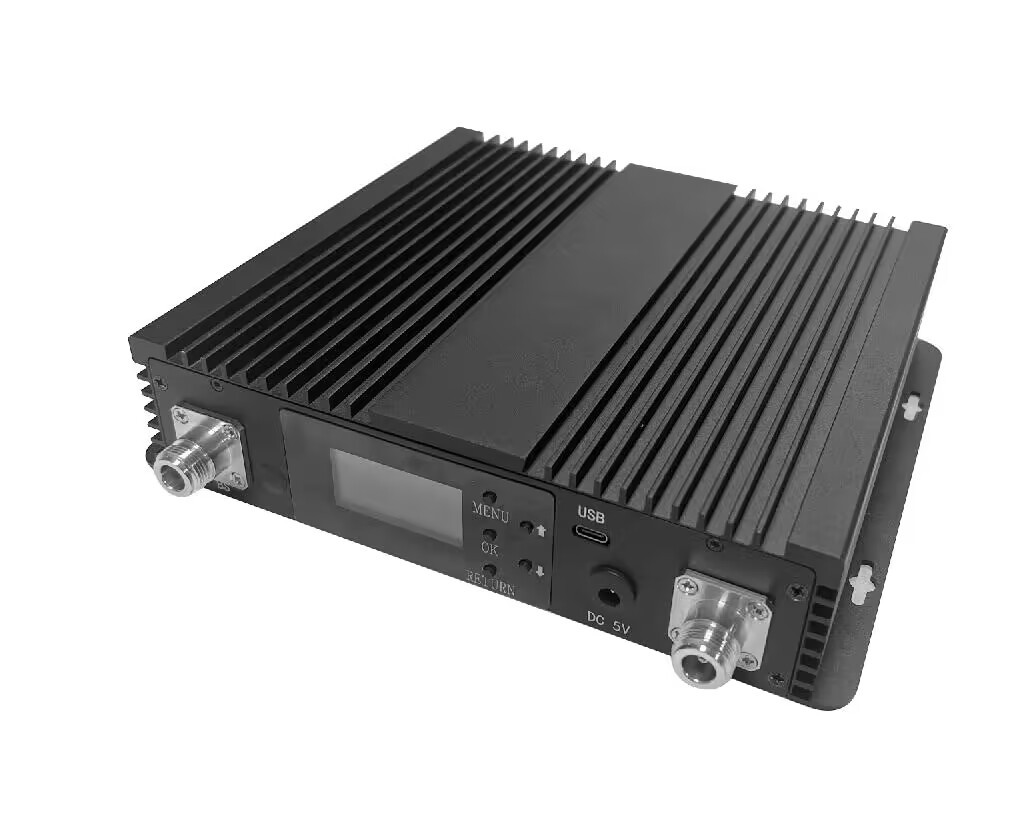

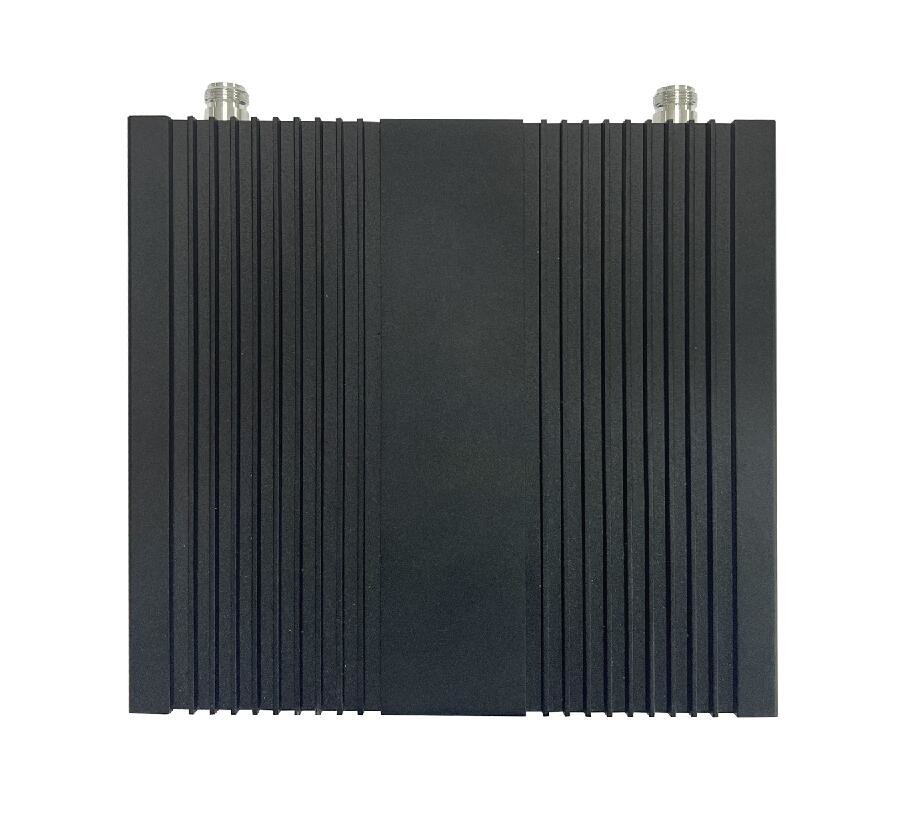

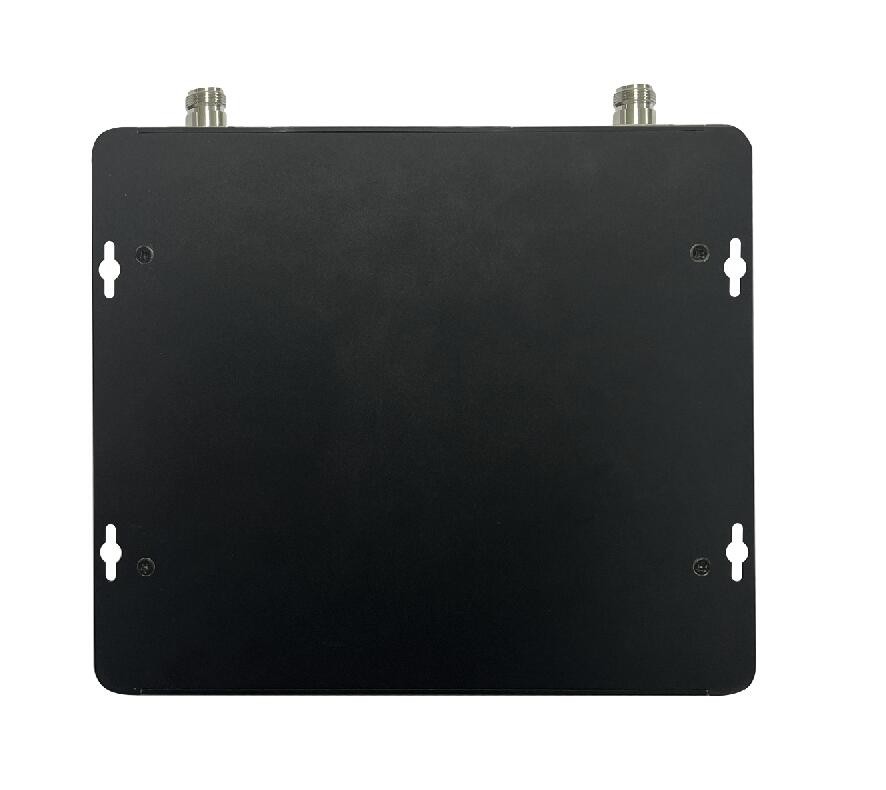

Multi sub-band 900 1800 2100MHz Customized digital band selective repeater
④ Automatic adjust the system gain to avoid the repeater self-excitation .
⑤ Initiative reminding when the device was damaged .
⑥ Supports from 0.2 to 20MHz bandwidth adjusted(Customized) ,Supports 5G bandwidth,40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .
Further detail pls click here for downloading the products specification:
Technical Specifications:
|
SPECIFICATIONS
|
PARAMETERS
|
||
|
Frequency Range
|
900MHz
|
UL880–915MHz, DL925–960MHz
|
|
|
1800MHz
|
UL1710–1785MHz, DL1805–1880MHz
|
||
|
2100MHz
|
UL1920–1980MHz, DL2110–2170MHz
|
||
|
Bandwidth
|
900MHz
|
35MHz, supports 1 subband from 0.2 to 20 MHz adjusted
|
|
|
1800MHz
|
75MHz, supports 1 subband from 0.2 to 20 MHz adjusted
|
||
|
2100MHz
|
60MHz, supports 1 subband from 0.2 to 20 MHz adjusted
|
||
|
Gain
|
UL:65dB DL:70dB
|
||
|
Output Power
|
UL:15dBm DL:≥17dBm
|
||
|
Automatic Gain Control
|
31dB
|
||
|
MGC (Step Attenuation)
|
20dB@ 1dB/Step
|
||
|
Spurious Emission
|
9 kHz -150 kHz/1kHz
|
≤-36dBm
|
|
|
150 kHz - 30 MHz/10kHz
|
≤-36dBm
|
||
|
30 MHz - 1 GHz/100kHz
|
≤-36dBm
|
||
|
1 GHz- 12.75 GHz/1MHz
|
≤-30dBm
|
||
|
ACPR
|
Downlink Fully comply with 3GPP 36.106
|
||
|
Fully comply with 3GPP 36.106
|
|||
|
Unwanted emissions
|
Fully comply with 3GPP 36.106
|
||
|
Out Of Band Gain
|
900MHz
|
1MH≤f_offset＜5MHz, UL:≥30 dB,DL:≤ 30 dB
|
|
|
1800MHz
|
1MH≤f_offset＜5MHz, UL:≥ 30 dB,DL:≤ 30 dB
|
||
|
2100MHz
|
1MH≤f_offset＜5MHz, UL:≥ 30 dB,DL:≤ 30 dB
|
||
|
EVM
|
≤8
|
||
|
VSWR
|
≤2
|
||
|
Ripple
|
900MHz
|
≤6dB
|
|
|
|
1800MHz
|
≤6dB
|
|
|
2100MHz
|
≤6dB
|
||
|
Noise Figure
|
≤8dB
|
||
|
Delay
|
≤3μs
|
||
|
I/O Impedance
|
50Ohm
|
||
|
RF Connector(Customers to Choose)
|
N -Type (Female)
|
||
|
Remote Control
|
Cloud WEB platform
|
||
|
Local Control
|
WIFI/Type-C port
|
||
|
Operating Temperature
|
-25°~+55°
|
||
|
Power Supply
|
DC 5V/5A
|
||
|
Power consumption
|
≤75W
|
||
|
Environment Conditions
|
IP43
|
||
|
Humidity
|
≤90%
|
||
|
Weight
|
≤3kg
|
||
|
Size
|
234*230*52 (mm)
|
||
Product Description
●We generally would declare the parcel with lower value to avoid or lessen the Customs Tax.Import Tax is not including in the price. When it happens, it is buyers responsibility to pay for the tax and custom clearance.
●Shipping is out of our control. If you want to get the product fast, please choose fast shipping methods, like Fedex, UPS and DHL. If you find the package is beyond promised delivered time, please contact us, we will contact with the carriers and find out the reason.
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. Does the signal booster work have radiation or not ?
Yes,but just little ,it also can reduce the radiation when you calling ,because it will have more radiation if no signal when you dialing on your phone.So don’t worry and use in house ,it is better for you than not use when no signal in house.
5. Can this mobile signal repeater create a signal where there is no cell signal before?
The mobile signal repeater cannot produce a signal, only amplify a weak one.
-
