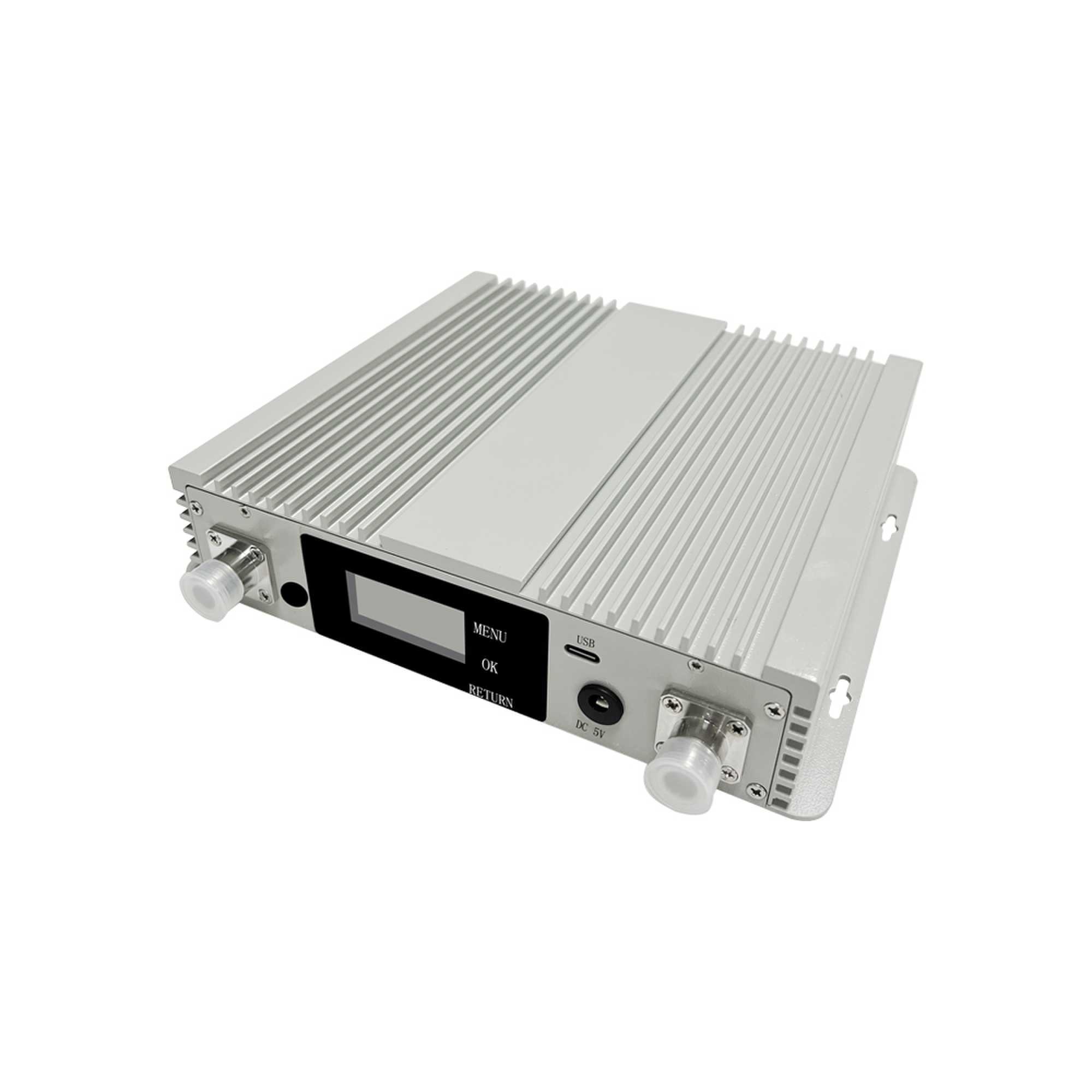

5G Mobile Phone Signal Booster Digital Band Selective Repeater

Mobile Signal Repeater is a digital band selective repeater specially designed for mobile signal boosting and coverage extension. It utilizes advanced digital technology and features low noise figure, high gain and adjustable output power to provide an optimal coverage solution for small and medium areas. It is capable of amplifying signals in the Uplink frequency range of 880-915MHz with a gain of 65-70dB and a noise figure of no more than 5dB. This lightweight repeater (weighing no more than 3kg) can also operate in an environment of up to 90% humidity without any distortion in signal quality.

Features:

With our solution, it is possible to improve three mobile networks simultaneously. Through the adjustable LCD display, input/output signal strength can be monitored accurately. To ensure that the most suitable configuration is utilized, the solution also provides automatic detection of isolation, as well as gain and level control. The bandwidth can be customized from 0.2 MHz to 20 MHz. Furthermore, the center frequency is easily movable. To facilitate the installation process, a smart LCD display is employed to provide guidance. Lastly, Wi-Fi control and monitoring is available for enhanced convenience.

Technical Parameters:

The frequency range of the device is from UL1920 to 1980MHz, DL2110 to 2170MHz, occupying a total bandwidth of 60MHz, with the ability to adjust 2 sub-bands from 0.2 to 20MHz. The gain of UL is 65dB, while the gain of DL is 70dB. The output power of UL is 17±3dBm and DL≥20±3dBm. The Automatic Gain Control reaches 31dB, MGC (Step Attenuation) reaches 31dB@ 1dB/Step. Besides, the spurious emission is ≤-36dBm from 9kHz to 150kHz with interval of 1kHz, ≤-36dBm from 150kHz to 30MHz with interval of 10kHz, ≤-36dBm from 30MHz to 1GHz with interval of 100kHz and ≤-30dBm from 1GHz to 12.75GHz with interval of 1MHz. The ACPR and Unwanted emissions both fully comply with 3GPP 36.106. In terms of Out of band gain, when the frequency offset is between 1MH and 5MH, UL is ≤ 30 dB and DL is ≤ 30 dB. Furthermore, the EVM is ≤8, VSWR is ≤2 and the ripple is ≤6dB, while the Noise Figure is ≤5dB. Additionally, the delay is ≤3μs, the I/O Impedance is 50Ohm, and there is an optional RF Connector. Moreover, the remote control is Cloud WEB platform by SIM card, and the local control is WIFI/ Type-C port, with the ability to adjust bandwidth by Type-C only, while the operating temperature ranges from -25° to 55°C. Besides, it is powered by DC 24V/5A with power consumption ≤75W, and IP43 for environment condition with humidity ≤90%. Last but not least, it weighs ≤3kg, and comes in size 234*230*52 (mm).

Applications:

Customization:

Hello, welcome to ATNJ custom service for digital band selective repeater. Our model number is DS-EGSM. This product is from Guangdong, China, with certification of CE,ROHS,CCC. The minimum order quantity is 5, and the price is ＄280-300. We provide neutral standard package for delivery, and the delivery time is 5-10 days. We accept payment of T/T,Paypal,Western Union. Our supply ability is 10000. The connector type is N-K, and the noise figure is ≤5dB. The operation temperature is -25℃~+55℃, and the output power is 17-20dBm. The power supply is DC 24V/5A.

Support and Services:

Mobile Signal Repeater offers technical support and services to ensure customers get the most out of their product. Our technical support team is available 24/7 to answer any questions and help troubleshoot any issues. We also offer a variety of services, including installation, maintenance, and repair. Our team of experts can provide advice on how to best utilize the Mobile Signal Repeater in your particular environment. We strive to provide the best customer service and ensure your satisfaction with our products.
