2G GSM 4G LTE Mobile Signal Booster Universal Cellular Antenna Repeater Amplifier

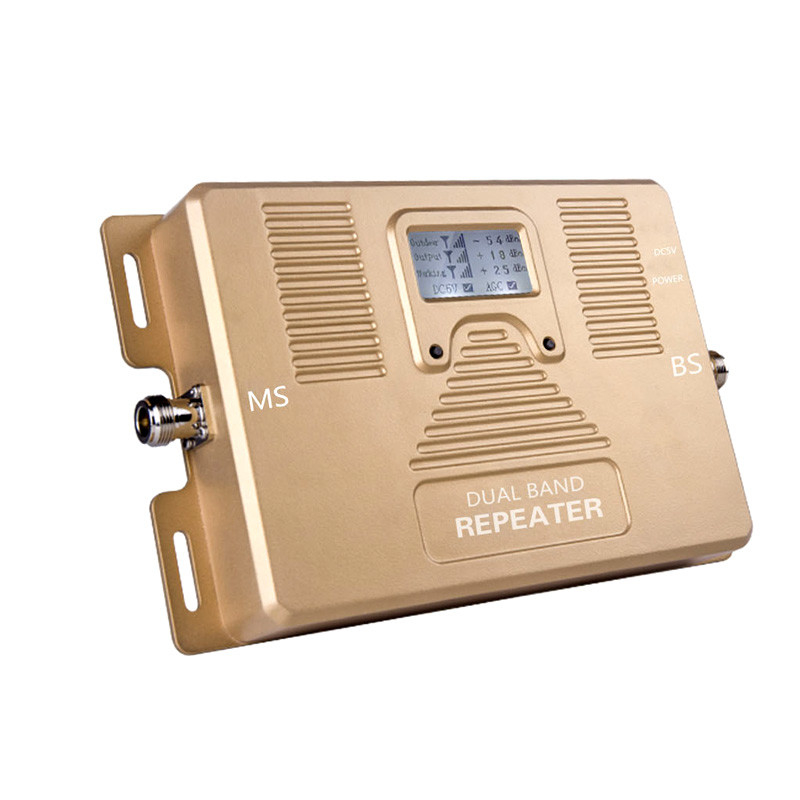

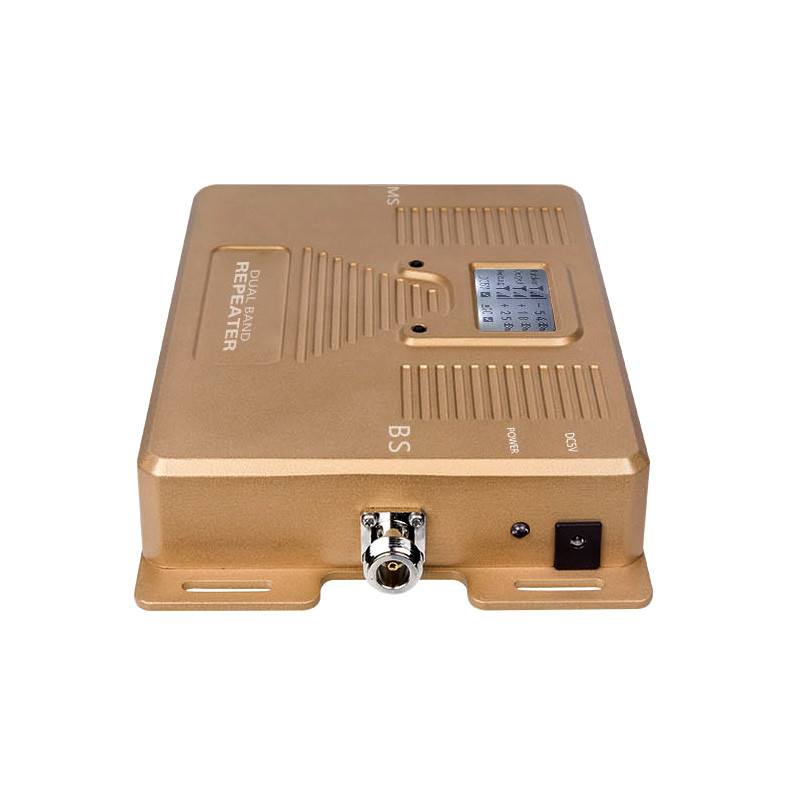

2G GSM 4G LTE Mobile Signal Booster Universal Cellular Antenna Repeater Amplifier

Brand Name: ATNJ
Model Number: JS-DB900/1800
MOQ: 5Pcs
Price: USD+100---120+kit
Supply Ability: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
Shenzhen, China
Certification:
ISO, RoHS, CE
GSM Frequency Range:
900MHz: 890-915MHz; 935-960MHz
DCS Frequency Range:
1800MHz: 1710-1785MHz; 1805-1880MHz
Color:
Gold Or Black Or White Or Cuztomized
Dimensions:
165*115*35mm
ALC Intelligent Function:
Done
Supply Ability:
T/T, Western Union,Paypal,Alibaba,Bank transfering.
Highlight:

2G GSM Mobile Signal Booster

,

4G LTE Mobile Signal Booster

,

ISO Certified Dual Band Repeater

Product Description

Product Description:

The Dual Band Repeater is an ideal 2G/4G phone signal booster designed for improving cell phone signal reception in a variety of places. It is equipped with Automatic Gain Control (AGC) that offers >30dB gain and a maximum output power of 22dBm, providing a maximum coverage area of up to 1000 square meters. This GSM phone signal repeater is available in golden, black and white color, and operates within a temperature range of -25ºC ~ +55ºC. It is a perfect choice for boosting your 2G/4G phone signal in homes, offices, and other places with weak signals.



Features:

  • Product Name: Dual Band Repeater
  • Output Power: 22dBm
  • Operating Temperature: -25ºC~+55ºC
  • Frequency Range: Band8 900+Band3 1800MHz
  • Dimensions: 165*115*35mm
  • Certification: ISO, RoHS, CE
  • Cellular Signal Repeater
  • 2G 4GPhone Signal Booster


Technical Parameters:

Parameter Specification
Frequency Range Band8 900+Band3 1800MHz
Trademark ATNJ
Input power range -55 DBm~-15 DBm
Connector Type N-female Connector
Product Name Dual Band Repeater
Coverage Range Up To 300 Square Meters
Weight ≤4 Kg
Output Power 22dBm
Operating Temperature -25ºC~+55ºC
Gain 70dB
Signal Amplifier Yes
Mobile Signal Booster Yes
LTE Network Booster Yes
2G GSM 4G LTE Mobile Signal Booster  Universal Cellular Antenna Repeater Amplifier 02G GSM 4G LTE Mobile Signal Booster  Universal Cellular Antenna Repeater Amplifier 12G GSM 4G LTE Mobile Signal Booster  Universal Cellular Antenna Repeater Amplifier 22G GSM 4G LTE Mobile Signal Booster  Universal Cellular Antenna Repeater Amplifier 3





How does the Signal Booster work?

With the external aerial antenna, the Signal Booster takes the existing weak signal from the cell tower. Then, the amplifier amplifies that signal and makes it full-strength and sends it to the internal antenna. Then the internal antenna pushes out a full-strength signal inside. The installation process is very easy and simple. Follow step by step the instructions guide. Usually, it just takes a few minutes to set it up.



If you are uncertain about what Mobile phone signal booster you need, do not hesitate in contacting us.
