Multi Sub-Band Tri Band 900 1800 2100MHz Digital Band Selective Repeater Customized Digital Repeater RF Amplifier

5Pcs
MOQ
USD+380---450+kit
Price
Multi Sub-Band Tri Band 900 1800 2100MHz Digital Band Selective Repeater Customized Digital Repeater RF Amplifier
Features Gallery Product Description Request A Quote
Features
Specifications
900MHz Frequency Range: UL890–910MHz, DL935–955MHz
1800MHz Frequency Range: UL1710–1730MHz, DL1805–1825MHz/ UL1745–1765MHz, DL1840–1860MHz
2100MHz Frequency Range: UL1960–1980MHz, DL2150–2170MHz
Bandwidth-900MHz: 20MHz , Supports From 0.2 To 20MHz Adjusted
Bandwidth-1800MHz: 20MHz&20MHz , Supports 2*20MHz From 0.2 To 20MHz Adjusted
Bandwidth-2100MHz: 20MHz , Supports From 0.2 To 20MHz Adjusted
Gain: UL:65dB DL:70dB
Output Power: UL:15dBm DL:≥17dBm
Weight: ≤3kg
Size: 234*230*52 (mm)
Highlight:

2100MHz Digital Band Selective Repeater

,

Customized Digital Band Selective Repeater

Basic Infomation
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS,CCC,TUV,BV, ISO
Model Number: AS-140-GDW
Payment & Shipping Terms
Packaging Details: Standard neutral packing,48x46x18cm(1 kit),
Delivery Time: 3 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Product Description

Model: AD-900/1800/2100





Product Features:

  • Digital bandwidth-adjustable features allow for seamless adaptability to different frequency bands.

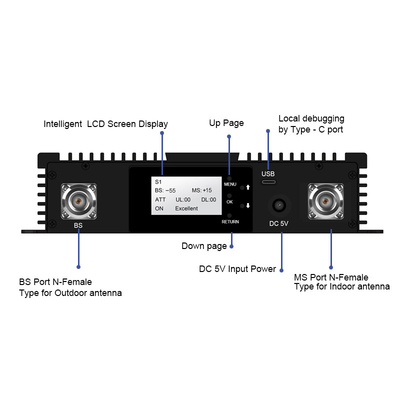

  • LCD display the input/output signal strength.
  • Auto isolation detection.
  • Improve any three mobile networks at the same time.
  • Built-in Auto Gain Control (AGC)& Auto Level Control (ALC).

l Center frequency movable.

  • OMS Lite for remote/local control and monitoring(Optional)

Working Schematic Diagram

Multi Sub-Band Tri Band 900 1800 2100MHz Digital Band Selective Repeater Customized Digital Repeater RF Amplifier 0



Application Scenario:

Multi Sub-Band Tri Band 900 1800 2100MHz Digital Band Selective Repeater Customized Digital Repeater RF Amplifier 1



Technical Specifications:



P/N: AD-900/1800/2100 B1 (2100MHz) B3 (1800MHz) B8 (900MHz)
Frequency Range(adjustable) Uplink 1920 - 1980MHz 1710 - 1785 MHz 880-915 MHz
Downlink 2110 - 2170 MHz 1805 - 1880 MHz 925-960MHz
Sub-bands Uplink 1920-1940MHz 1710 - 1730 MHz 900-910 MHz
Downlink 2110 - 2130 MHz 1805 - 1825 MHz 945-955MHz
Number of Sub-bands 1 2 1
Bandwidth (adjustable) ≦ 20 MHz/0.2MHz ≦ 20 MHz/0.2MHz ≦ 20MHz/0.2MHz
Max. Gain Uplink ≧ 65±3 dB ≧ 65±3 dB ≧ 65±3 dB
Downlink ≧ 70±3 dB ≧ 70±3 dB ≧ 70±3 dB
Manual Gain Control 31 dB in step of 1 dB
Automatic Gain Control ≧ 20 dB
Gain Flatness (per sub-band) ≦ ±3 dB (peak-to-peak) ≦ ±3 dB (peak-to-peak) ≦ ±3 dB (peak-to-peak)
Max. Input Power Without Damage 0 dBm
Output Power Uplink ≧ 17±2 dBm ≧ 17±2 dBm ≧ 17±2 dBm
Downlink ≧ 20±2 dBm ≧ 20±2 dBm ≧ 20±2 dBm
Out of Band Gain 2,5 £ f_offset_CW< 5,0 MHz ≤60 dB ≤60 dB ≤60 dB
5,0£f_offset_CW<10,0 MHz ≤45 dB ≤45 dB ≤45 dB
10,0 MHz £ f_offset_CW ≤35 dB ≤35 dB ≤35 dB
Spurious Emission 9KHz-1GHz ≦ -36dBm
1GHz-12.75GHz ≦ -30dBm
ACRR ±20/100MHz ≦-36dBc/30KHz ≦-36dBc/30KHz ≦-36dBc/30KHz
±40/200MHz ≦-40dBc/30KHz ≦-40dBc/30KHz ≦-40dBc/30KHz
EVM ≦ 8% ≦ 8% ≦ 8%
Frequency Stability ≦ ±0.01 ppm ≦ ±0.01 ppm ≦ ±0.01 ppm
Noise Figure ≦ 6 dB
VSWR ≦ 1.8
System Delay ≦ 4.5 µs
RF Connector N-Female
Impedance 50 Ω
Power Supply AC 100/ 240 V
Power Consumption ≦ 75 W
Dimensions 234*230*52mm
Weight ≦ 3kgs
IP Rating IP40
Operating Temperature -25 °C to 55 °C
Control & Monitoring Local USB/Type-C port/WIFI



Multi-band Mobile Signal Booster 800/900/1800MHz Amplifier Repeater 2G 4G 15

LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 17





FAQ


1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.

4. Does the signal booster work have radiation or not ?

Yes,but just little ,it also can reduce the radiation when you calling ,because it will have more radiation if no signal when you dialing on your phone.So don’t worry and use in house ,it is better for you than not use when no signal in house.


5. Can this mobile signal repeater create a signal where there is no cell signal before?

The mobile signal repeater cannot produce a signal, only amplify a weak one.
