Tri Band Repeater
>

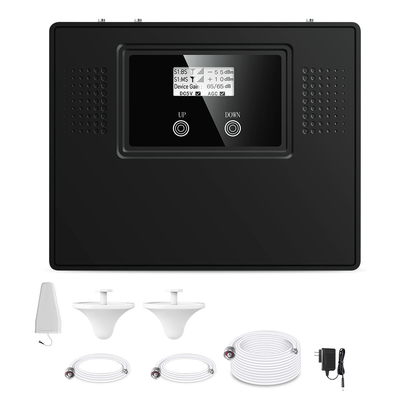

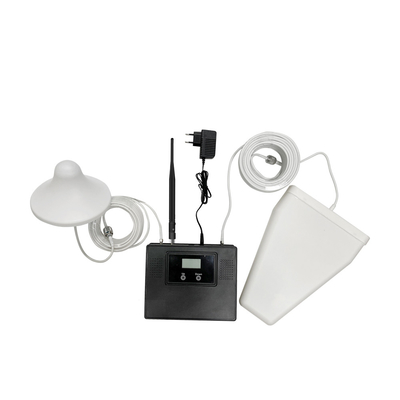

ATNJ New Upgrade Cell Signal Amplifier , 2g 3g 4g LTE Mobile Phone Signal Detector

ATNJ New Upgrade Cell Signal Amplifier , 2g 3g 4g LTE Mobile Phone Signal Detector

Brand Name: ATNJ
Model Number: NB-GDW
MOQ: 1
Price: USD+240---260+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
900MHz Band8 Frequency::
890-915MHz / 935-960MHz
1800MHz Band3 Frequency::
1710-1785MHz / 1805-1880MHz
2100MHz Band1Frequency:
1920-1980MHz / 2110-2170MHz
Products Type:
Network Signal Boaster,receptor De Sinal De Celular
Booster Gain:
67±2dB
Booster Output::
17±3dBm
Device Warranty:
3 Years,The Supplier Shall Provide Maintenance Spare Parts Or Return Them To The Factory For Maintenance
Supply Ability:
1000+unit+per day.
High Light:

4g Cell Signal Amplifier

,

ROHS Cell Signal Amplifier

,

LTE Mobile Phone Signal Detector

Product Description

ATNJ New Upgrade amplificador de seal celular 2g 3g 4g LTE mobile phone signal detector



NB-GDW​ Overview

The LCD booster of the latest generation, ATNJ NB-GDW is used to improve weak GSM signals at two different frequencies. The LCD display shows a signal level, setup recommendations, error notifications, power, and ALC data. Moreover, the NB-GDW comes with one more port for an additional interior antenna that enables its user to redistribute the enhanced signal.






Coverage area

This model guarantees effective amplification in middle-sized houses and offices, shops, and other areas up to 300 m² (3200 ft²).






Signal types supported

The device boosts GSM signals at 900 and 1800 MHz simultaneously. 900 MHz is the most spread frequency for GSM signal transmission in the European Union and all over the world. 1800 MHz is mostly used as an additional frequency to 900 MHz and in certain regions as the main one. Consequently, the dual band amplifier will suit users of mobile providers working at different frequencies.



Specification:

Frequency

Uplink

Downlink

GSM 900MHz

890-915MHz

935-960MHz

4G 1800MHz

1710-1785MHz

1805-1880MHz

3G 2100MHz

1920-1980MHz

2110-2170MHz

Max. Gain

68dB±2dB

65dB±2dB

Max. Output Power

17dB±2dB

20dB±2dB

Bandwidth

Wide Band

Ripple in Band

≤ 8dB

Noise Figure

≤ 6dB

VSWR

≤ 2.0

Spurious Emission

9KHz~1GHz

≤ -36dBm

1~12.75GHz

≤ -30dBm

Time Delay

≤ 1.5 μs

MTBF

> 50000 hours

Impedance

50 ohm

Power Supply

AC 90-240V,DC 5V/3A

Power LCD

Power indicator

Alarm LCD

Red

Strong input signal

Green

Normal

Mechanical Specification

RF Connector

SMA-Female

Cooling

Heatsink Convection cooling

Humidity

< 90%

Operating Temperature

-10°C ~ +55°C

Environment Conditions

IP40

Installation Type

Wall Installation

Size

20.4*16.4*4.4cm

Gross Weight

0.8Kg



HOW IT WORKS ?



1. Received a good outdoor signal from signal tower.

2. Cable transmits good signal to repeater.

3. Signal Booster enhance the received signal.

4. Improve indoor's cellphone signal.

ATNJ New Upgrade Cell Signal Amplifier , 2g 3g 4g LTE Mobile Phone Signal Detector 0

Selling Point



⭐ Intelligent to guide the installation with LCD .

⭐ Real time display the signal strength .

⭐ Automatic dormancy when no user make the calling .

⭐ Automatic alarm when installation mistake and provide the according solution .

⭐ Automatic adjust the system gain to avoid the repeater self-excitation .

⭐ Initiative reminding when the device was damaged .

⭐ Supports from 0.2 to 20MHz bandwidth adjusted(Customized) .
⭐ Supports 5G bandwidth, 40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .

⭐With WIFI Monitor+Control(Customized),NMS(network management system),Function Optional .

⭐ A variety of appearance customization.



ATNJ New Upgrade Cell Signal Amplifier , 2g 3g 4g LTE Mobile Phone Signal Detector 1ATNJ New Upgrade Cell Signal Amplifier , 2g 3g 4g LTE Mobile Phone Signal Detector 2ATNJ New Upgrade Cell Signal Amplifier , 2g 3g 4g LTE Mobile Phone Signal Detector 3ATNJ New Upgrade Cell Signal Amplifier , 2g 3g 4g LTE Mobile Phone Signal Detector 4ATNJ New Upgrade Cell Signal Amplifier , 2g 3g 4g LTE Mobile Phone Signal Detector 5ATNJ New Upgrade Cell Signal Amplifier , 2g 3g 4g LTE Mobile Phone Signal Detector 6ATNJ New Upgrade Cell Signal Amplifier , 2g 3g 4g LTE Mobile Phone Signal Detector 7ATNJ New Upgrade Cell Signal Amplifier , 2g 3g 4g LTE Mobile Phone Signal Detector 8ATNJ New Upgrade Cell Signal Amplifier , 2g 3g 4g LTE Mobile Phone Signal Detector 9
ATNJ New Upgrade Cell Signal Amplifier , 2g 3g 4g LTE Mobile Phone Signal Detector 10


FAQ

Q1:Do you have CE or any other certification?
A:Yes,we CE, , ROHS and ISO certification,etc.
Q2:Can you give me a discount?
A:Please discuss with our sales.
Q3:How about gain and output power of your device?
A:Different models, gain and output power aredifferent,for more details, please contact us.
Q4:How long is warranty period?
A:The warranty is 12 months. And we offer 7*24technical support
Q5:how many square meters can be covered?
A:For different models, the covered square meters are different.
