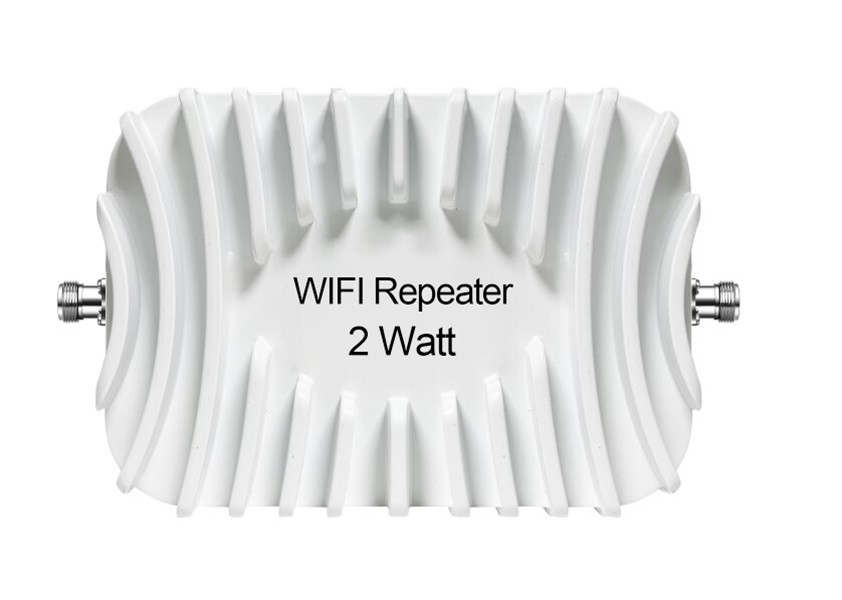

ATNJ Engineering High Power 2 Watt 33dBm WIFI Repeater Amplifier
ATNJ's family of WiFi boosters is designed for use in mobile and/or mesh wireless networking applications. Designed for bi-directional signal amplification, In contrast, traditional analog amplifier technologies can go into saturation or reduce transmit power as input signal fluctuates, negatively impacting signal quality and network performance. Can be used any 5GHz antenna that implements an N-Male connector. The small footprint and low profile design makes it an ideal solution for mounting on vehicles or in other space constrained applications.
The ATNJ's 5,8GHz WiFi booster efficiently increases signal reach of any antenna by up to 200%-400%.
The ATNJ's 5,8GHz WiFi booster are been used to increase the power and/or the signal for different products like:
- Access points
- IP cameras
- Video senders
- Profesional photo cameras
- Profesional video cameras
- R/C helicopters, planes and cars
Further detail pls click here for downloading the products specification:
5.8GHz wifi repeater.pdf
5.8GHz, Max. 2000mW output power;
Aluminum-alloy case by CNC, anti-interference;
Small size, Safe & Power saving;
Full kit, easy to install;
For house, office, UAV, IP cameras, RC equipment....
Booster Model: ATNJ58Gi2000P
Operating range : 5000~5875MHz
Channel width: 20Mhz&40Mhz&80Mhz
Supported standards: IEEE 802.11a/n
Operation mode: Bi-directional, half-duplex, time division duplex
Connector type: To radio N female (hole inside).
To antenna N female (pin inside)
Output power: 2000mW (33dBm)
Input power: 0 ~ 20dBm
Transmit gain: 15 – 18dB
Receiver gain: 11 – 14dB
Noise figure: ≤3.5dB typical
Frequency response: ±1dB over operating range
Operating temperature: -20°C to +70°C
Operating humidity: Up to 75% relative humidity
Material: Cast aluminum
LED light: Power status LED and activity status LED
Booster weight: 110g
Booster size: 8.4 x 5.4 x 2cm
Shenzhen ATNJ Communication Technology Co.,LTD
Shenzhen ATNJ Communication Technology Company was founded in Nanshan District, Shenzhen in 2010 with over 900sqm factory. ATNJ focuses on the production and development of micro power signal booster, wireless signal repeater, Indoor Signal Distribution System and antenna series. With professional engineers, workers and with senior management personnel, the group maintains high-speed development.
Meanwhile, the Up-to-date facilities and technology end sure the business long-term development. With the rapid development of the company, ATNJ moved to Guangming District, Shenzhen in 2016 with a bigger factory over 2800sqm and over 50 workers.
In its stage of rapid development, ATNJ advertised its products by attending trade exhibitions oversea, cooperating with many platforms like Made-in-China, Alibaba, Global Sources and so on. Especially, ATNJ attended Mobile World Congress in Spain, which made ATNJ well known in the world and through MWC, ATNJ started to cooperate with many oversea companies.
Nowadays, ATNJ not only produces and develops high-quality home use signal booster and high power wireless repeater, but also expands its business scope to cooperate with signal operators, provide signal coverage solution for large area like residential area, office building, supermarket, underground garage and rural areas.
With the populization of signal repeater, users have more requirements for the functions of the signal repeater. In 2020, ATNJ developed smarter digital module signal repeater with WIFI connection monitoring function, with which users could control the signal repeater and watch the siganl repeater working situation with their mobile phone. Signal repeaters with WAN connection/Bluetooth connection/USB connection were developed at the same time.
In 2021,5G signal booster was developed and put into Chinese market successfully. In addition, ATNJ starts to upgrade the signal booster from analog module to digital module, with which the products (micro power signal booster, wireless signal repeater,Indoor Signal Distribution System) could be operated and controlled with WIFI connection, WAN port, USB port and SIM card.
What‘s more, more functions are equipped in our products, like band selective, sub bands, OLED screen display, MGC.With the progress of science and technology of ATNJ, easier use and more functional signal boosters have being developed.
ATNJ Strength & Service
Highly qualified communication technology Engineers. ATNJ brings together a team of engineers with more than ten years of working experience in communication industry, who are engaged in signal booster R&D, design, debugging, testing, and its pre-production to ensure it could comply with International Standards. For the sustainable development of the company, some young engineers are also employed. Because of their hard work, the ATNJ's products can be continuously updated and iterated.
Satisfactory after-sales service.
ATNJ provides 3-year warranty for all the main signal repeater, and 3-month warranty for accessories. Within the warranty period, ATNJ provides free repairment service, and customers only need to pay for the freight.Inaddition, within one month after the customer receives the product, ATNJ is responsible for all non-human damage faults.
Contact us and place order now, to have better signal, better life.
Q1:Do you have CE or any other certification?
|A:Yes,we CE, ROHS and CCC certification,etc.
|Q2:Can you give me a discount?
|A:Please discuss with our sales.
|Q3:How about gain and output power of your device?
|A:Different models, gain and output power aredifferent,for more details, please contact us.
|Q4:How long is warranty period?
|A:The warranty is 36months. And we offer 7*24technical support
|Q5:how many square meters can be covered?
|A:For different models, the covered square meters are different.
