Intelligent Dual Band CDMA 4G LTE Repeater Cellular Booster 850MHz Signal Amplifier

Basic Properties
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: JS-DB850/1700/P
Trading Properties
Minimum Order Quantity: 5Pcs
Price: USD+70---85+kit
Payment Terms: T/T,Western Union,Paypal,Bank transfering
Supply Ability: 1000+unit+per day.
Tags

2100MHz Mobile Signal Repeater

850MHz Mobile Signal Repeater

70dB Mobile Signal Repeater
Specifications
850MHz Frequency Range: 824-849MHz / 869-894MHz 1700MHz Frequency Range: 1710-1755MHz / 2110-2155MHz
Products Name: Signal Amplifier Gain: 70dB
Output power: 17-20dBm Color: Grey Or Customized
RF Connect Type: SMA/Female Products Type: Signal Booster, Mobile Network Booster
High Light:

CE 4G LTE Repeater

,

CDMA 4G LTE Repeater

,

Dual Band Repeater 850MHz
Product Description
Intelligent Dual Band CDMA 4G LTE Repeater Cellular Booster 850MHz Signal Amplifier
Product Overview
ATNJ Dual Band Mobile Signal Repeater

ATNJ Dual band 850/1700MHz mobile signal repeater with industrial design combines multiple mobile network signals together and improves mobile voice and data communication. Our solution provides cost-effective signal enhancement that is easy to install and maintain, delivering fast results for customers.

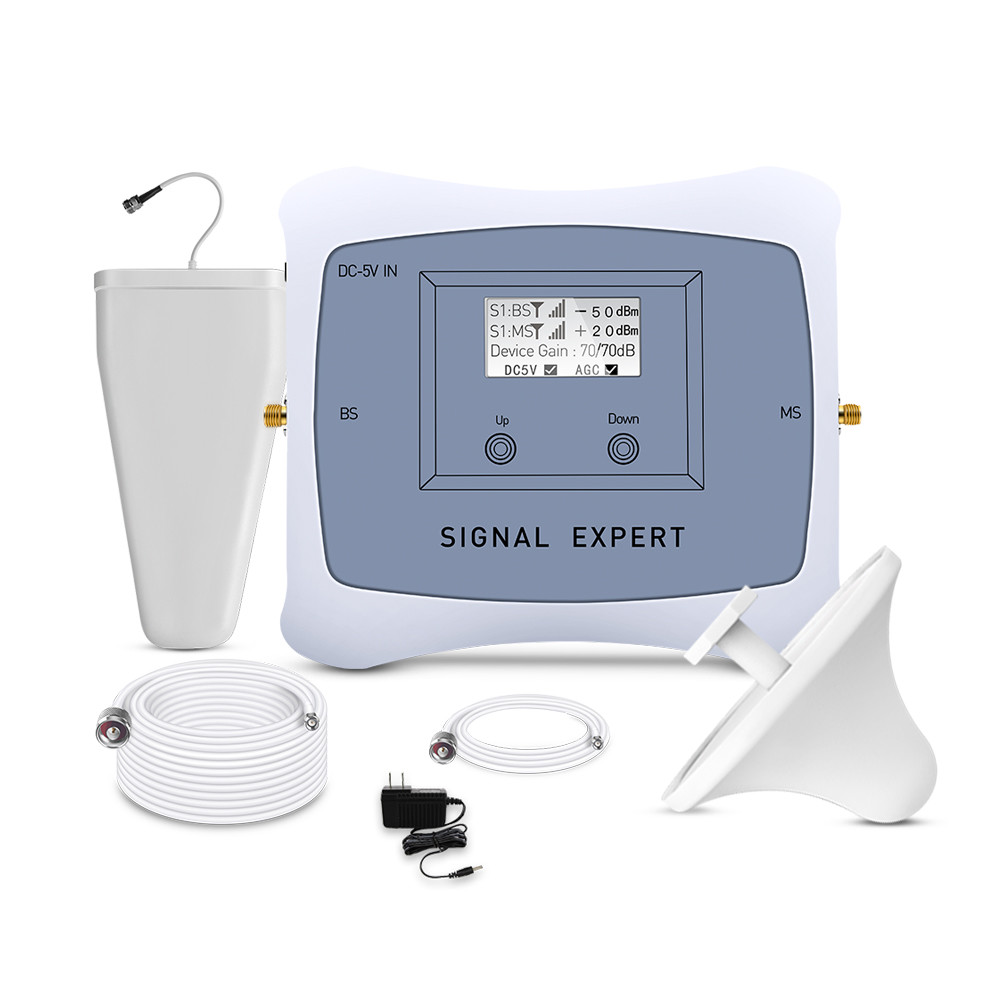

ATNJ Signal Repeater Features Display
Key Features
  • Intelligent installation guidance with LCD display
  • Real-time signal strength monitoring
  • Automatic dormancy when no active calls
  • Automatic alarm system for installation errors with solutions
  • Automatic gain adjustment to prevent self-excitation
  • Proactive damage detection and alerts
  • Bandwidth adjustment support from 0.2 to 20MHz (customizable)
  • 5G bandwidth support: 40MHz, 50MHz, 60MHz, 70MHz, 80MHz, 90MHz, 100MHz (customizable)
  • Optional features: WiFi monitoring and control, network management system (NMS)
Technical Specifications
Specification Parameters
Frequency Range CDMA 850: 824-849MHz/869-894MHz
AWS 1700: 1710-1755MHz/2110-2155MHz
Band Width CDMA 850: 25MHz
AWS 1700: 45MHz
Gain 68±3
Automatic Gain Control 31dB
MGC (Step Attenuation) 20dB @ 1dB/Step
Output Power 17±3dBm
Spurious Emission 9 kHz -150 kHz/1kHz: ≤-36dBm @1kHz
150 kHz - 30 MHz/10kHz: ≤-36dBm@10kHz
30 MHz - 1 GHz/100kHz: ≤-36dBm@100kHz
1 GHz- 12.75 GHz/1MHz: ≤-30dBm@1kHz
ACPR Uplink & Downlink fully comply with 3GPP 36.106
Unwanted emissions Fully comply with 3GPP 36.106
VSWR ≤2
Ripple CDMA 850: ≤5dB
AWS 1700: ≤5dB
Noise Figure ≤9dB
Delay ≤3μs
I/O Impedance 50Ω

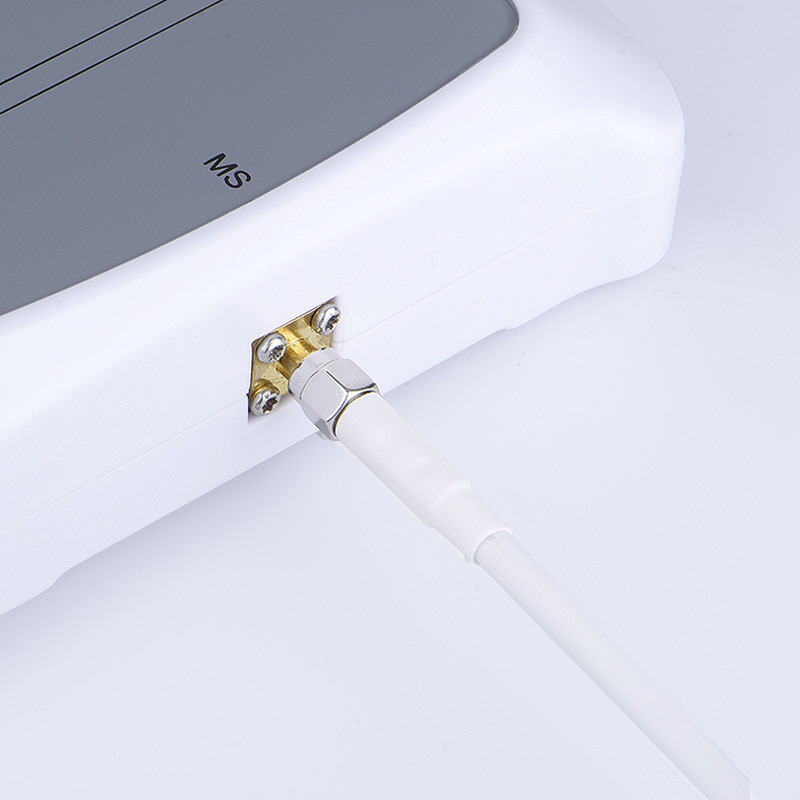

RF Connector SMA-Type (Female) - Customizable
Operating Temperature -25°C to +55°C
Power Supply DC 5V2A
Power consumption ≤15W
Environment Conditions IP43
Humidity ≤90%
Weight 0.5kg
Size 205×170×38mm
Download Detailed Product Specification (PDF)
We are manufacturer, and have our own factory.
Frequently Asked Questions
Q1: Are you trading company or manufacturer? Could I use our own logo and label?
A: We are factory, with trading service. We provide OEM/ODM service.
Q2: How about gain and output power of your device?
A: Different models, gain and output power are different. For more details, please contact us.
Q3: How many square meters can be covered?
A: For different models, the covered square meters are different.
Q4: What is your warranty time?
A: We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
Q5: Please feel free to contact us if any other questions.
A: Our technical team is available to answer any additional questions you may have.
