Dual Band Signal Booster
>

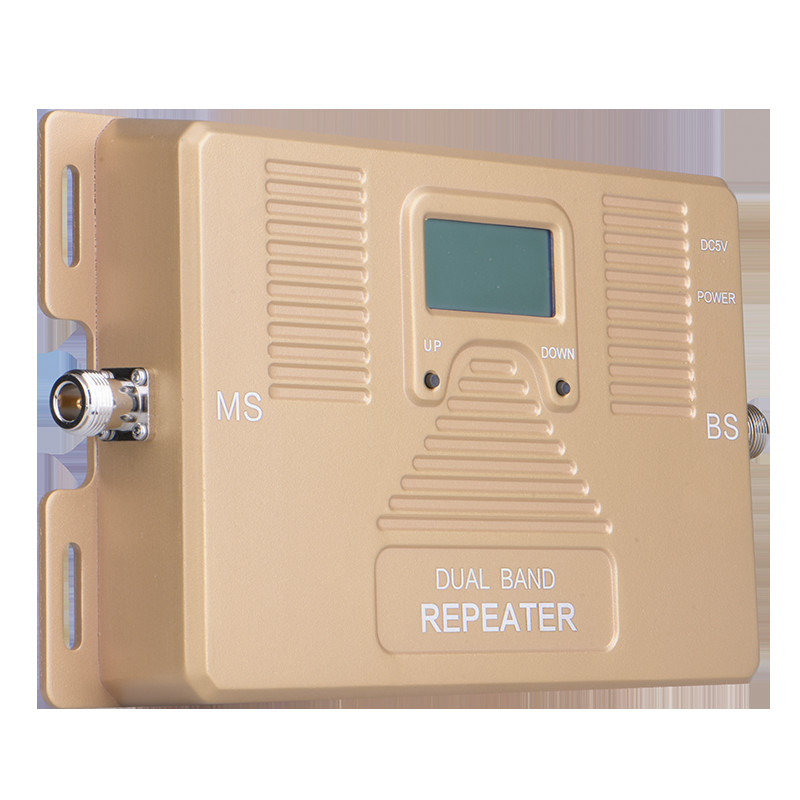

AGC Alc Mgc LCD Display Dual Band Booster GSM LTE 4G Repeater

AGC Alc Mgc LCD Display Dual Band Booster GSM LTE 4G Repeater

Brand Name: ATNJ
Model Number: JS-DB1800/2100/Pro
MOQ: 1
Price: USD+100---120+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
1800MHz Range:
1710-1785MHz/1805-1880MHz
2100MHz Range:
1920-1980MHz/2110-2170MHz
Booster Gain:
65±3dB
Output Power:
≥20dBm
AGC Intelligent Function:
Done,31dB @ 1dB/ Step
Power Supply:
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter)
Packing Size:
52x21x16cm
Products Type:
Signal Amplifier, Lte Cell Phone Booster
Supply Ability:
1000+unit+per day.
High Light:

LTE 4G Dual Band Booster

,

GSM Dual Band Booster

,

AGC Dual Band Signal Booster

Product Description

2022 New AGC & Alc, Mgc, Auto-Shut-Down, Isolation Detection GSM LTE 4G Repeater Dual Bands LCD Display Booster







Product Description



The dual band 1800/2100MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.



The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.





AGC MGC Function



The AGC and MGC functions can prevent the amplified signal from causing interference to the base station. Even if it is installed incorrectly, the amplifier can protect the normal operation of the base station.



Adjustable Gain



Automatic adjust the system gain to avoid the repeater self-excitation





Check the frequency range before you buy



To make sure that the amplifier you buy is suitable for your mobile operator, please follow the steps and detect the frequency range of your mobile phone. This signal booster can only work on Band 3, Band 1.


Band 8 = B8 = 2G GSM900 / EGSM900
Band 3 = B3 = 4G DCS1800 / 4G LTE1800
Band 1 = B1 = 3G WCDMA2100 / 3G UMTS2100



AGC Alc Mgc LCD Display Dual Band Booster GSM LTE 4G Repeater 0

Technical Specifications

SPECIFICATIONS
PARAMETERS
Frequency Range
DCS 1800MHz
1710-1785MHz/1805-1880MHz

UMTS 2100MHz
1920-1980MHz/2110-2170MHz
Band Width
DCS 1800MHz
75MHz

UMTS 2100MHz
60MHz
Gain
68±2dB
Automatic Gain Control
31dB
MGC (Step Attenuation)
20dB@ 1dB/Step
Output Power
20dBm
Spurious Emission
9 kHz -150 kHz/1kHz
≤-36dBm @1kHz

150 kHz - 30 MHz/10kHz
≤-36dBm@10kHz

30 MHz - 1 GHz/100kHz
≤-36dBm@100kHz

1 GHz- 12.75 GHz/1MHz
≤-30dBm@1kHz
ACPR
Uplink Fully comply with 3GPP 36.106

Downlink Fully comply with 3GPP 36.106
Unwanted emissions
Fully comply with 3GPP 36.106
VSWR
≤2
Ripple
GSM 900MHz
≤5dB

DCS 1800MHz
≤5dB
Noise Figure
≤9dB
Delay
≤3μs
I/O Impedance
50Q
RF Connector(Customers to Choose)
N-Type (Female)
Operating Temperature
-25°~+55°
Power Supply
DC 5V2A
Power consumption
≤15W
Environment Conditions
IP43
Humidity
≤90%
Weight
0.35kg
Size
145×165×38mm

Further detail pls click here for downloading the products specification:

1800+2100MHz A032 mobile signal repeater.pdf

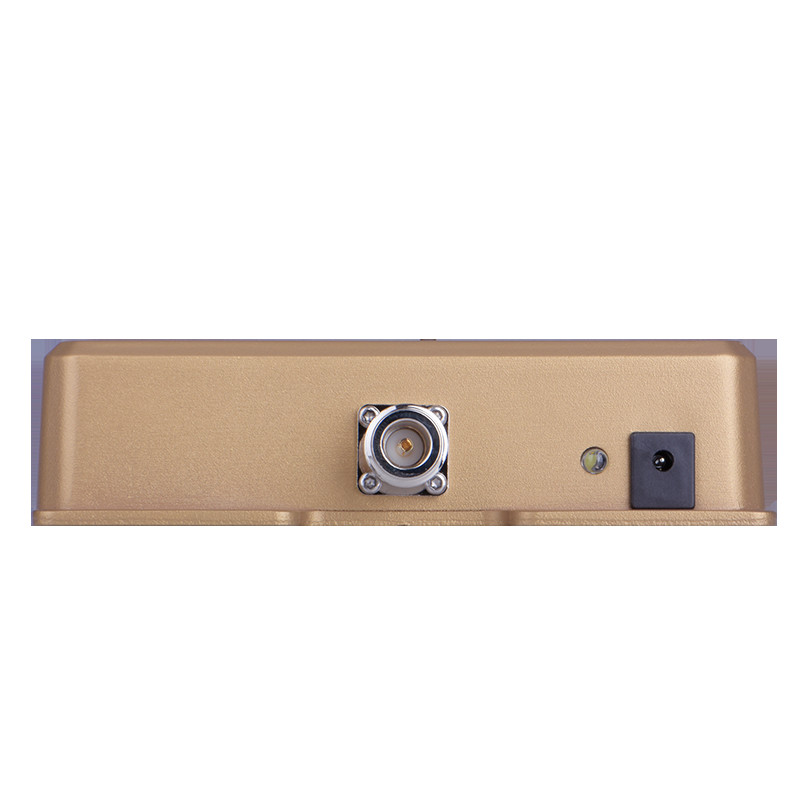

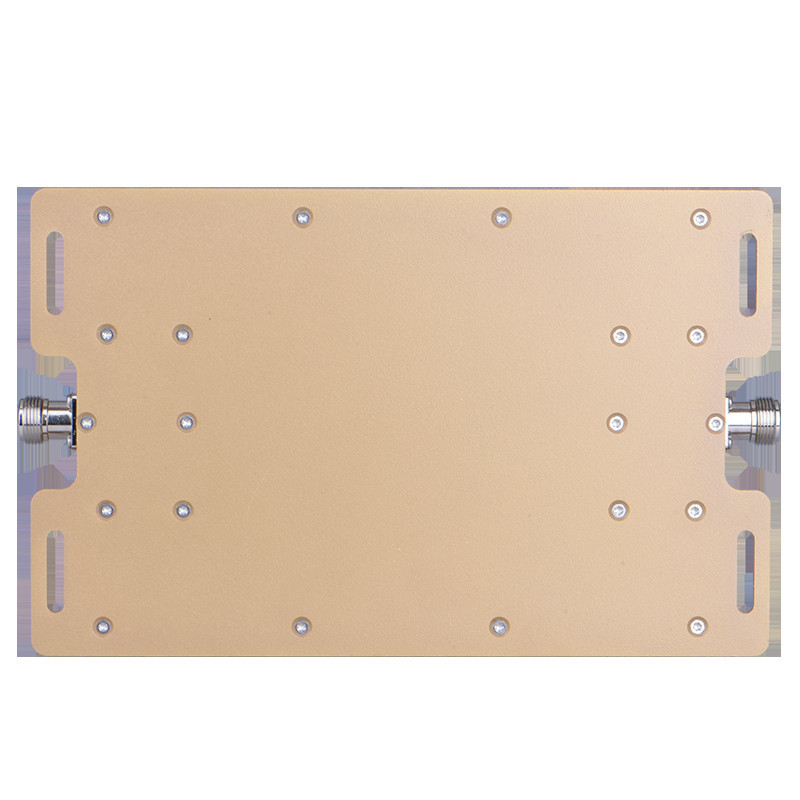

AGC Alc Mgc LCD Display Dual Band Booster GSM LTE 4G Repeater 1AGC Alc Mgc LCD Display Dual Band Booster GSM LTE 4G Repeater 2AGC Alc Mgc LCD Display Dual Band Booster GSM LTE 4G Repeater 3AGC Alc Mgc LCD Display Dual Band Booster GSM LTE 4G Repeater 4AGC Alc Mgc LCD Display Dual Band Booster GSM LTE 4G Repeater 5AGC Alc Mgc LCD Display Dual Band Booster GSM LTE 4G Repeater 6AGC Alc Mgc LCD Display Dual Band Booster GSM LTE 4G Repeater 7AGC Alc Mgc LCD Display Dual Band Booster GSM LTE 4G Repeater 8AGC Alc Mgc LCD Display Dual Band Booster GSM LTE 4G Repeater 9

AGC Alc Mgc LCD Display Dual Band Booster GSM LTE 4G Repeater 10AGC Alc Mgc LCD Display Dual Band Booster GSM LTE 4G Repeater 11AGC Alc Mgc LCD Display Dual Band Booster GSM LTE 4G Repeater 12

AGC Alc Mgc LCD Display Dual Band Booster GSM LTE 4G Repeater 13AGC Alc Mgc LCD Display Dual Band Booster GSM LTE 4G Repeater 14AGC Alc Mgc LCD Display Dual Band Booster GSM LTE 4G Repeater 15AGC Alc Mgc LCD Display Dual Band Booster GSM LTE 4G Repeater 16AGC Alc Mgc LCD Display Dual Band Booster GSM LTE 4G Repeater 17



We are manufacturer, and have our own factory.

FAQ
1. How do I determine the best place to set up my booster?
using your mobile phone to check the good signal places from outside or top roof or other empty space, if you still cannot find a good place, you can contact us through chat or by email and we will help you with the setup.
2. Should I check the location of my network provider`s nearest tower?
Yes! The standard antenna can accept signal from within 170 degrees. If towers are located on the opposite side of your property than your antenna, you may need to upgrade your system by adding a second antenna so you can receive signal from all locations.
3. How many users will one booster support?
using your mobile phone to check the good signal places from outside or top roof or other empty space, if you still cannot find a good place, you can contact us through chat or by email and we will help you with the setup.
Coverage in square metres Number of supported users
Up to 150 sq m Up to 50 users
Up to 300 sq m Up to 100 users
Up to 600 sq m Up to 150 users
Up to 1500 sq m Up to 200 users
