Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-P
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+40---49+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Frequency Range: |
1920-1980MHz/2110-2170MHz |
Device Gain: |
70dB |
Output Power: |
17dBm |
Customized Color: |
White,Blue, Black |
ALC AGC Intelligent Function: |
Done |
RF Connect Type: |
SMA/Female |
Weight: |
1.85kg |
Packing Size: |
54x19x16cm |
Power Supply: |
Input AC100V-240V 50/60Hz 0.6A; Output 12V 2.0A |
Products Name: |
Signal Amplifier,Cell Phone Signal Repeater |
Frequency Range: |
1920-1980MHz/2110-2170MHz |
Device Gain: |
70dB |
Output Power: |
17dBm |
Customized Color: |
White,Blue, Black |
ALC AGC Intelligent Function: |
Done |
RF Connect Type: |
SMA/Female |
Weight: |
1.85kg |
Packing Size: |
54x19x16cm |
Power Supply: |
Input AC100V-240V 50/60Hz 0.6A; Output 12V 2.0A |
Products Name: |
Signal Amplifier,Cell Phone Signal Repeater |

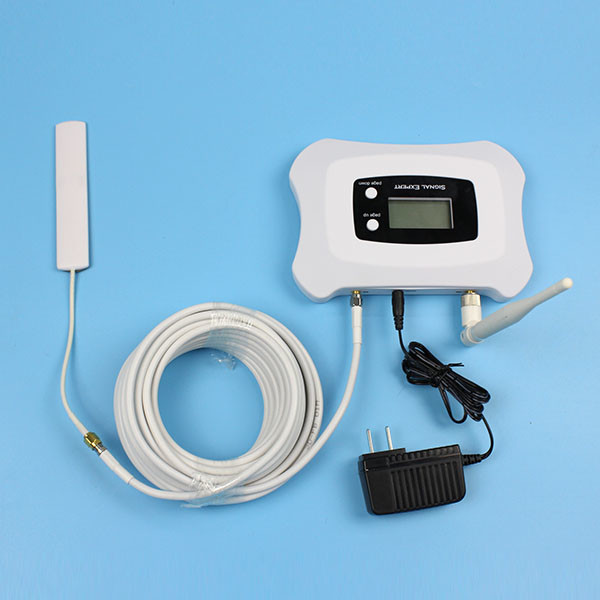

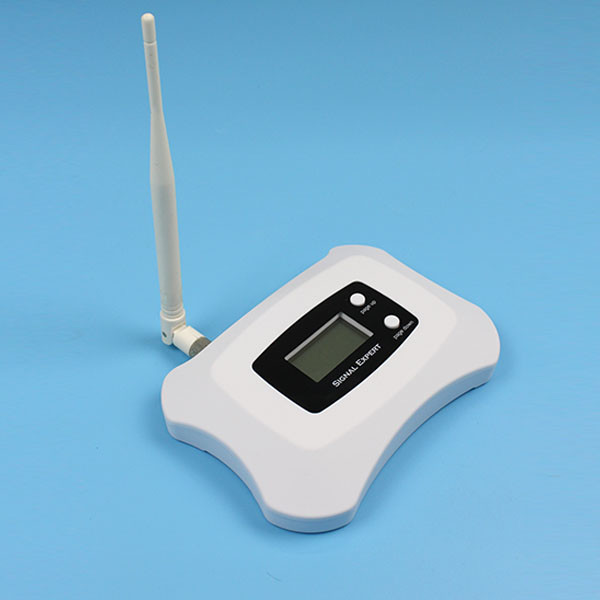

2100MHz Mobile Network Booster 70dB Gain Cell Phone Signal Repeater
Indoor Single Band Signal Repeater (Signal Booster) series is an ideal solution for one wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
Do not dismantle machine, maintain or displace accessories by yourself, because in this way, the equipment may be damaged or even get an electric shock.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
1920-1980MHz |
|
Downlink |
2110-2170MHz |
|
|
Frequency Bandwidth |
60MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA (Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Trademark |
ATNJ |
|
Further detail pls click here for downloading the products specification:
Single band WCDMA 2100MHz RF Repeater.pdf
Product Description
We are manufacturer, and have our own factory.
FAQ:
1. What is your advantage ?
---Your inquiry will be replied in 24hours .
---Well-trained and experienced staffs to answer all your inquires in fluent English .
---OEM&ODM, for any of your customized products we can help you to design and put into product .
---All our products with 12months guarantee .
2. What is our Payment methods ?
We agree T/T, Western Union, PayPal.L/C for old customers .
3. What is our Shipping & Trade terms ?
Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc .
Delivered time: 1-3 business days for sample, 10-25 days for mass order .
Trade terms: EXW, FOB , CIF etc .
4. What is our Certificates ?
We have CE, ROHS, CCC certificates .
