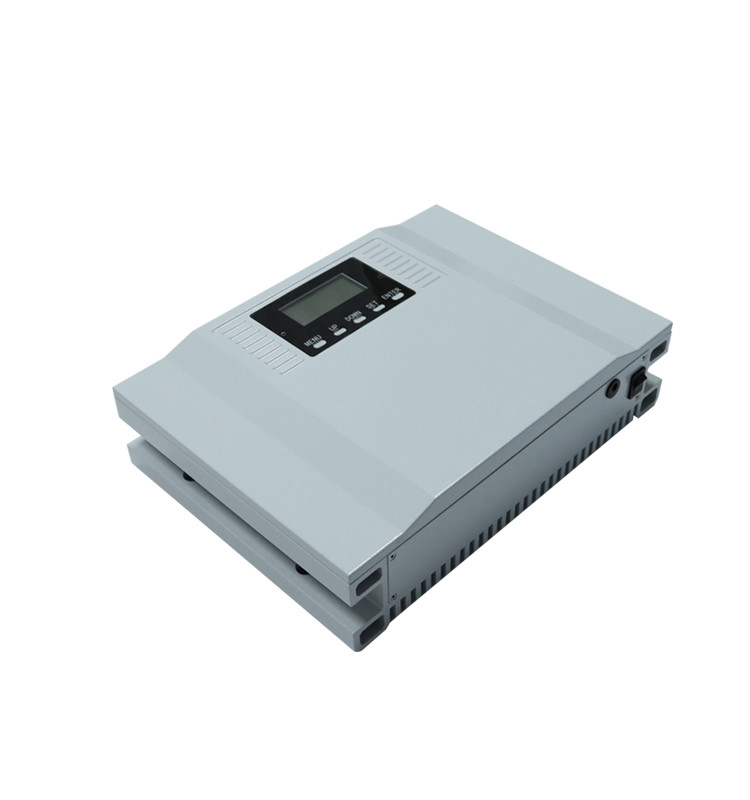

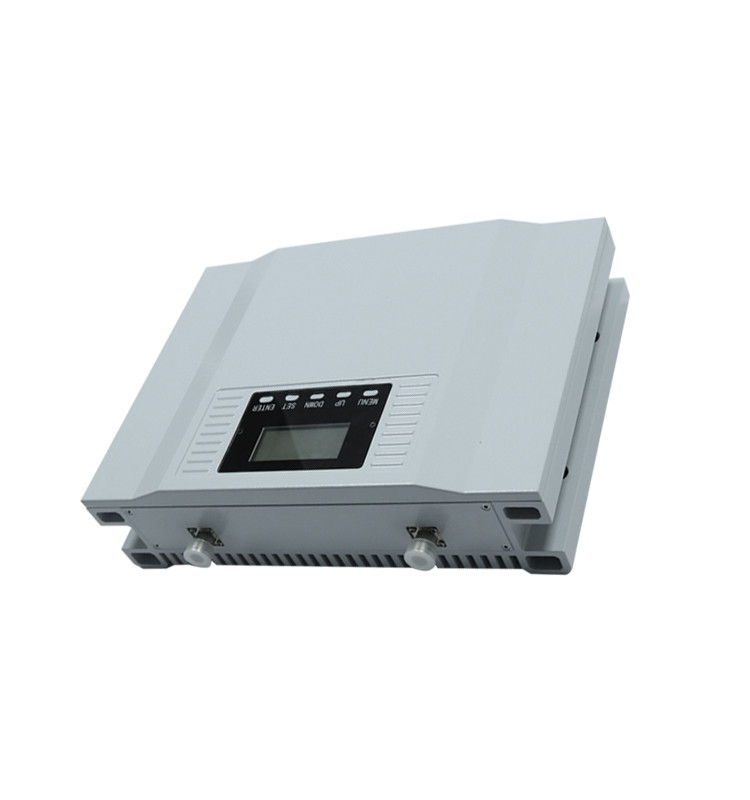

850MHz 1800MHz 2100MHz Tri Band Repeater Automatic Gain Control
Digital Tri Band 850 1800 2100MHz Band Selected Cellular Signal Repeater Amplifier
General :
The Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Specification
SPECIFICATIONS | PARAMETERS | ||
Frequency Range | CDMA850 | 824MHz - 849MHz/ 869MHz - 894MHz |
|
LTE1800 | 1710MHz - 1785MHz/ 1805MHz - 1880MHz |
||
UMTS2100<E2100 | 1920MHz - 1980MHz/ 2110MHz - 2170MHz |
||
Band Width | CDMA850 | Supports 2*20MHz from 0.2 to 20MHz | |
LTE1800 | Supports 2*20MHz from 0.2 to 20MHz | ||
UMTS2100<E2100 | Supports 2*20MHz from 0.2 to 20MHz | ||
Gain | Uplink 65dB | ||
Downlink 70dB | |||
Automatic Gain Control | 31dB | ||
MGC (Step Attenuation) | 31dB@ 1dB /Step | ||
Output Power | Uplink 13dBm | ||
Downlink 20dBm | |||
Spurious Emission | 9 kHz -150 kHz/1kHz | ≤ - 36dBm | |
150 kHz - 30 MHz/10kHz | ≤ - 36dBm | ||
30 MHz - 1 GHz/100kHz | ≤ - 36dBm | ||
1 GHz- 12.75 GHz/1MHz | ≤ - 30dBm | ||
ACPR | Uplink Fully comply with 3GPP 36.106 | ||
Downlink Fully comply with 3GPP 36.106 | |||
Unwanted emissions | Fully comply with 3GPP 36.106 | ||
VSWR | ≤ 2 | ||
Ripple | CDMA | ≤ 3dB | |
L1800 | ≤ 2dB / 3.84MHz | ||
UMTS | ≤ 3dB @ BW Config | ||
Noise Figure | ≤ 8dB | ||
Delay | ≤ 3.5 us | ||
I/O Impedance | 50Q | ||
RF Connector(Customers to Choose) | N - Type (Female) | ||
Operating Temperature | -10°~+55° | ||
Power Supply | 100 - 265V | ||
Power consumption | 300W | ||
Environment Conditions | IP55 | ||
Humidity | ≤ 90% | ||
Weight | 5kg | ||
Size | 416x268x71 mm |
Further detail pls click here for downloading the products specification:
