Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: JS-D-GDL
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+480-600+kit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit),
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
900MHz Frequency Range: |
890-915MHz / 935-960MHz |
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
2600MHz Frequency Range: |
2500-2570MHz / 2620-2690MHz |
Bandwidth: |
Supports 2*20MHz From 0.2 To 20MHz For Each Frequency |
Products Type: |
4g Signal Booster |
Power Supply: |
100---265V |
Color For Choice: |
Black, White Or Customized |
900MHz Frequency Range: |
890-915MHz / 935-960MHz |
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
2600MHz Frequency Range: |
2500-2570MHz / 2620-2690MHz |
Bandwidth: |
Supports 2*20MHz From 0.2 To 20MHz For Each Frequency |
Products Type: |
4g Signal Booster |
Power Supply: |
100---265V |
Color For Choice: |
Black, White Or Customized |

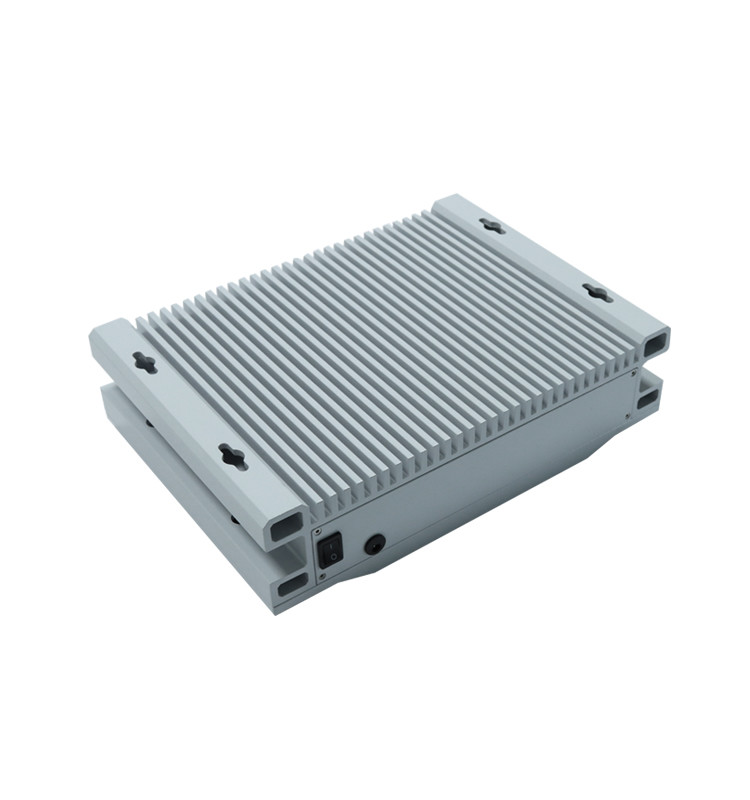

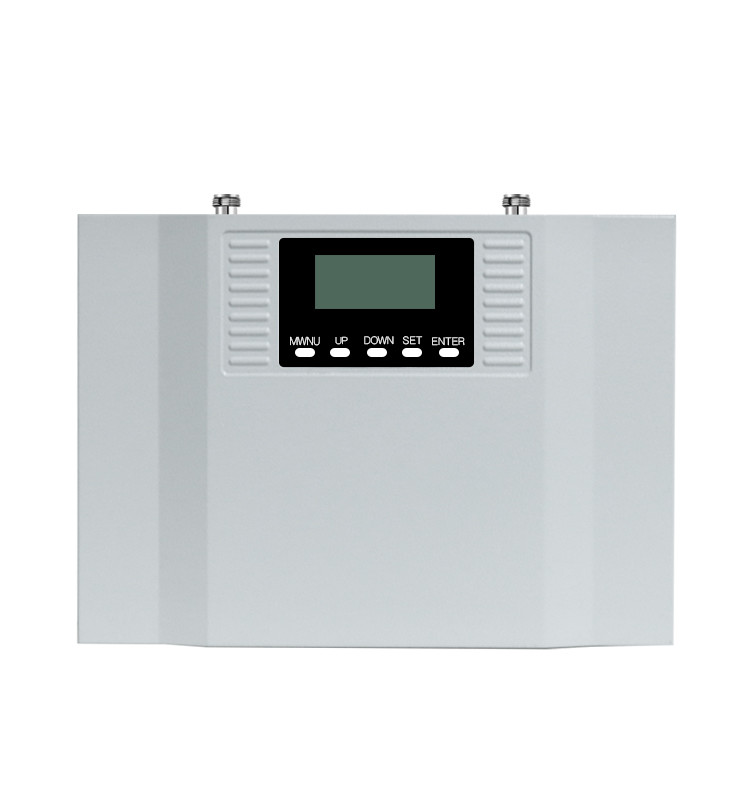

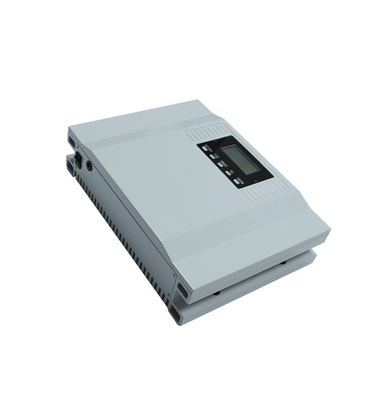

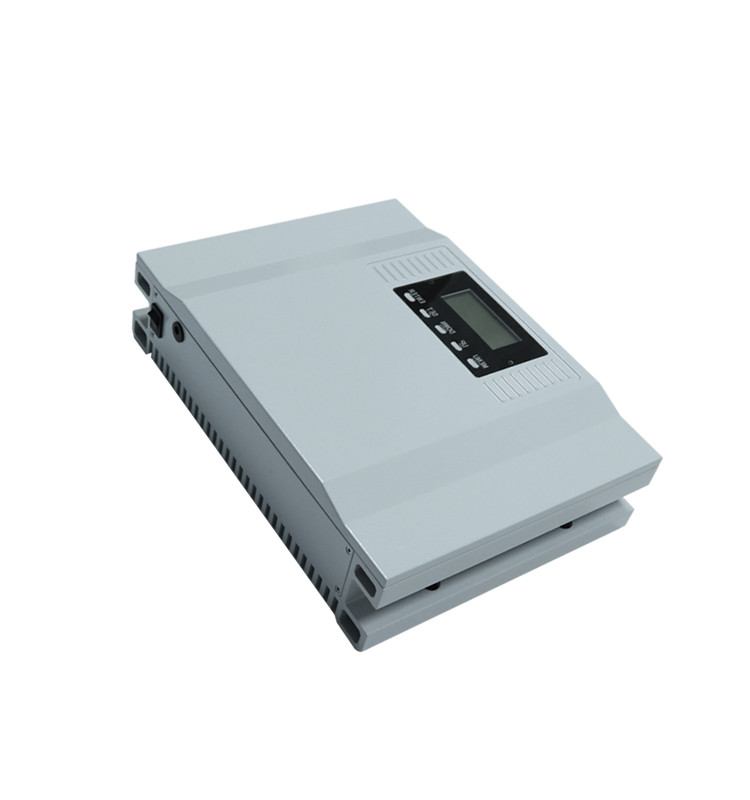

13dBm Digital Signal Repeater Selected Band 900MHz 1800MHz 2600MHz
900 1800 2600MHz Digital Tri Band Selected Cellular Signal Repeater Amplifier
General :
The Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Specification
|
SPECIFICATIONS |
PARAMETERS |
||
|
Frequency Range |
GSM900 |
890MHz - 915MHz/ |
|
|
LTE1800 |
1710MHz - 1785MHz/ |
||
|
LTE2600 |
2500-2570MHz/ |
||
|
Band Width |
GSM900 |
Supports 2*20MHz from 0.2 to 20MHz |
|
|
LTE1800 |
Supports 2*20MHz from 0.2 to 20MHz |
||
|
LTE2600 |
Supports 2*20MHz from 0.2 to 20MHz |
||
|
Gain |
Uplink 65dB |
||
|
Downlink 70dB |
|||
|
Automatic Gain Control |
31dB |
||
|
MGC (Step Attenuation) |
31dB@ 1dB /Step |
||
|
Output Power |
Uplink 13dBm |
||
|
Downlink 20dBm |
|||
|
Spurious Emission |
9 kHz -150 kHz/1kHz |
≤ - 36dBm |
|
|
150 kHz - 30 MHz/10kHz |
≤ - 36dBm |
||
|
30 MHz - 1 GHz/100kHz |
≤ - 36dBm |
||
|
1 GHz- 12.75 GHz/1MHz |
≤ - 30dBm |
||
|
ACPR |
Uplink Fully comply with 3GPP 36.106 |
||
|
Downlink Fully comply with 3GPP 36.106 |
|||
|
Unwanted emissions |
Fully comply with 3GPP 36.106 |
||
|
VSWR |
≤ 2 |
||
|
Ripple |
GSM |
≤ 3dB |
|
|
L1800 |
≤ 2dB / 3.84MHz |
||
|
L2600 |
≤ 3dB @ BW Config |
||
|
Noise Figure |
≤ 8dB |
||
|
Delay |
≤ 3.5 us |
||
|
I/O Impedance |
50Q |
||
|
RF Connector(Customers to Choose) |
N - Type (Female) |
||
|
Operating Temperature |
-10°~+55° |
||
|
Power Supply |
100 - 265V |
||
|
Power consumption |
300W |
||
|
Environment Conditions |
IP55 |
||
|
Humidity |
≤ 90% |
||
|
Weight |
5kg |
||
|
Size |
416x268x71 mm |
||
Further detail pls click here for downloading the products specification:
900+1800+2600MHz Selective Repeater.pdf
FAQ
Q1 : Do you have CE or any other certification?
A1 : Yes,we CE, ROHS and CCC certification,etc.
Q2 : Can I have a sample order? What is your MOQ?
A2 : Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
Q3 : Is it easy to set up your items?
A3 : Yes. We have a user manual and support technical support 24/7.
Q4 : What is your warranty time?
A4 : We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
Q5 : What is your payment terms?
A5 : We accept Alibaba Trade Assurance, T/T, West Union, Paypal, Bank Account Transfering.
