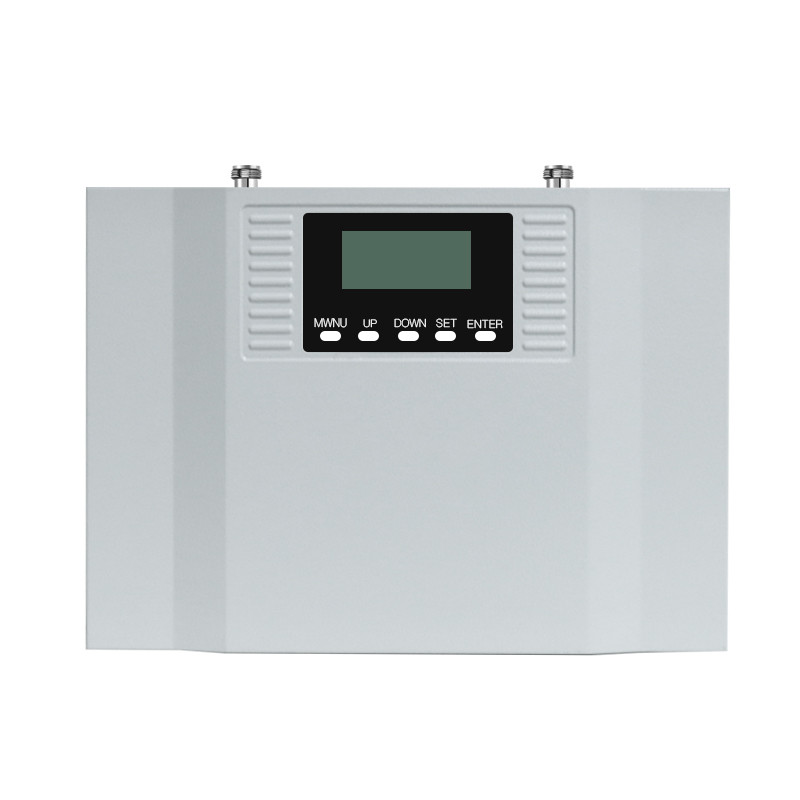

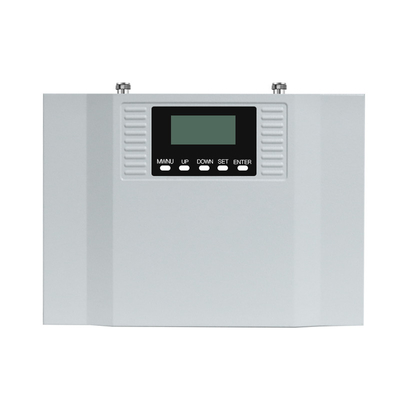

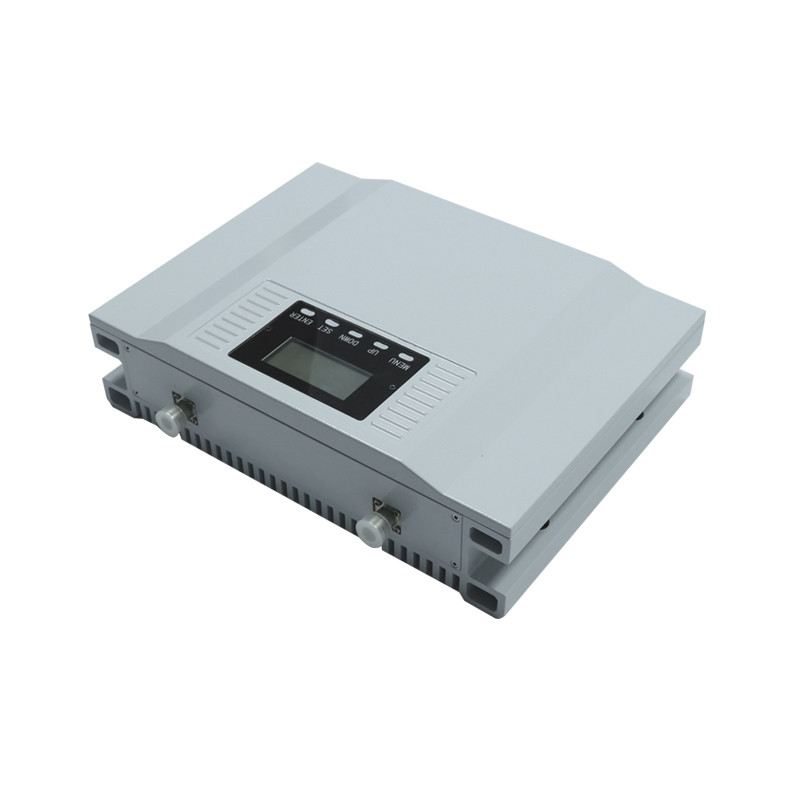

1800MHz 2100MHz 2600MHz Tri Band Booster Uplink 13dBm Downlink 20dBm
| 1800MHz Frequency Range: | 1710-1785MHz / 1805-1880MHz | 2100MHz Frequency Range: | 1920-1980MHz / 2110-2170MHz |
| 2600MHz Frequency Range: | 2500-2570MHz / 2620-2690MHz | Products Type: | Network Booster, Mobile Phone Signal Booster Triband |
| Device Gain: | Uplink : 65dB Downlink : 70dB | Device Output power: | Uplink : 13dBm Downlink : 20dBm |
| Color For Choice: | Black, White Or Customized | ||
| High Light: | 1800MHz 20dBm Tri Band Booster,20dBm 2600MHz Tri Band Booster,20dBm Cellular Signal Booster |
||
1800MHz 2100MHz 2600MHz Tri Band Booster Uplink 13dBm Downlink 20dBm
Digital Tri Band 1800 2100 2600MHz Band Selected Cellular Signal Repeater Amplifier
General :
The Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Specification
| SPECIFICATIONS | PARAMETERS | ||
| Frequency Range | LTE1800 |
1710MHz -1785MHz/ 1805MHz- 1880MHz |
|
| UMTS2100 < E2100 |
1920MHz -1980MHz/ 2110MHz -2170MHz |
||
| LTE 2600 |
2500 - 2570MHz/ 2620 - 2690MHz |
||
| Band Width | LTE1800 | Supports 1*20MHz from 0.2 to 20MHz | |
| UMTS2100 < E2100 | Supports 1*20MHz from 0.2 to 20MHz | ||
| LTE 2600 | Supports 1*20MHz from 0.2 to 20MHz | ||
| Gain | Uplink 65dB | ||
| Downlink 70dB | |||
| Automatic Gain Control | 31dB | ||
| MGC (Step Attenuation) | 31dB @ 1dB/ Step | ||
| Output Power | Uplink 13dBm | ||
| Downlink 20dBm | |||
| Spurious Emission | 9 kHz -150 kHz/1kHz | ≤ - 36dBm | |
| 150 kHz - 30 MHz/10kHz | ≤-36dBm | ||
| 30 MHz - 1 GHz/100kHz | ≤- 36dBm | ||
| 1 GHz- 12.75 GHz/1MHz | ≤ - 30dBm | ||
| ACPR | Uplink Fully comply with 3GPP 36.106 | ||
| Downlink Fully comply with 3GPP 36.106 | |||
| Unwanted emissions | Fully comply with 3GPP 36.106 | ||
| VSWR | ≤ 2 | ||
| Ripple | L1800 | ≤ 3dB | |
| UMTS | ≤ 2dB / 3.84MHz | ||
| L2600 | ≤ 3dB @ BW Config | ||
| Noise Figure | ≤ 8dB | ||
| Delay | ≤ 3.5 us | ||
| I/O Impedance | 50Q | ||
| RF Connector(Customers to Choose) | N-Type (Female) | ||
| Operating Temperature | -10° ~ +55° | ||
| Power Supply | 100 - 265V | ||
| Power consumption | 300W | ||
| Environment Conditions | IP55 | ||
| Humidity | ≤ 90% | ||
| Weight | 5kg | ||
| Size | 416x268x71 mm | ||
Further detail pls click here for downloading the products specification:
FAQ
|
Q1:Do you have CE or any other certification?
|
|
A:Yes,we CE, ROHS and CCC certification,etc.
|
|
Q2:Can you give me a discount?
|
|
A:Please discuss with our sales.
|
|
Q3:How about gain and output power of your device?
|
|
A:Different models, gain and output power aredifferent,for more details, please contact us.
|
|
Q4:How long is warranty period?
|
|
A:The warranty is 36months. And we offer 7*24technical support
|
|
Q5:how many square meters can be covered?
|
|
A:For different models, the covered square meters are different.
|
-
