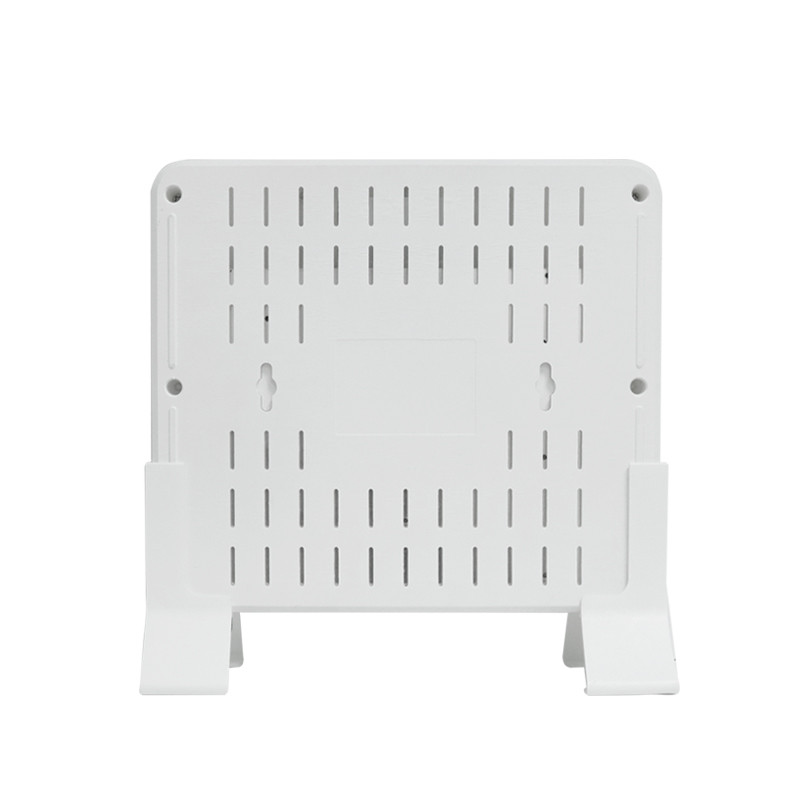

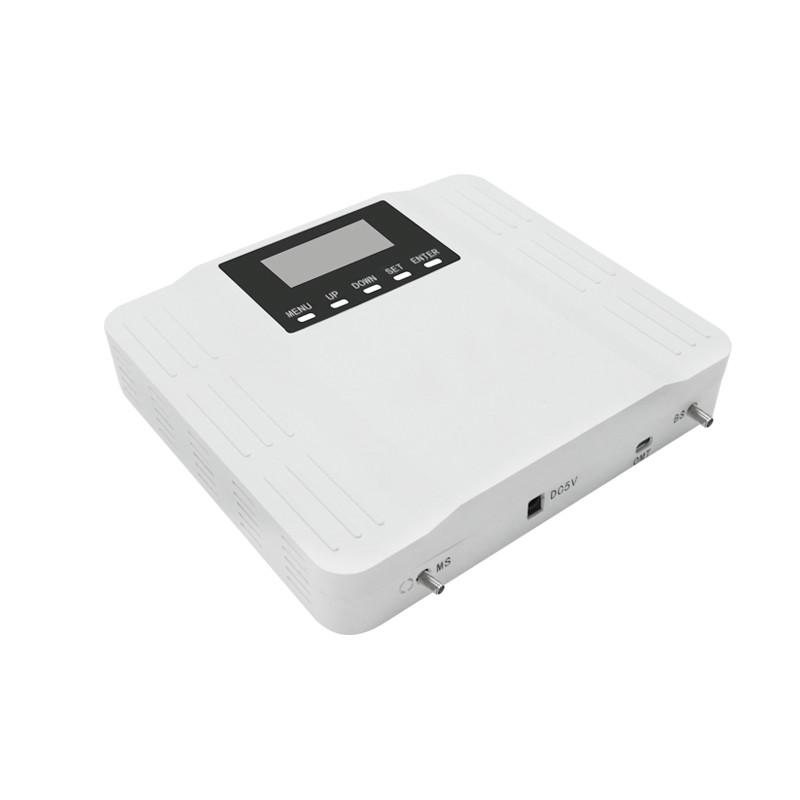

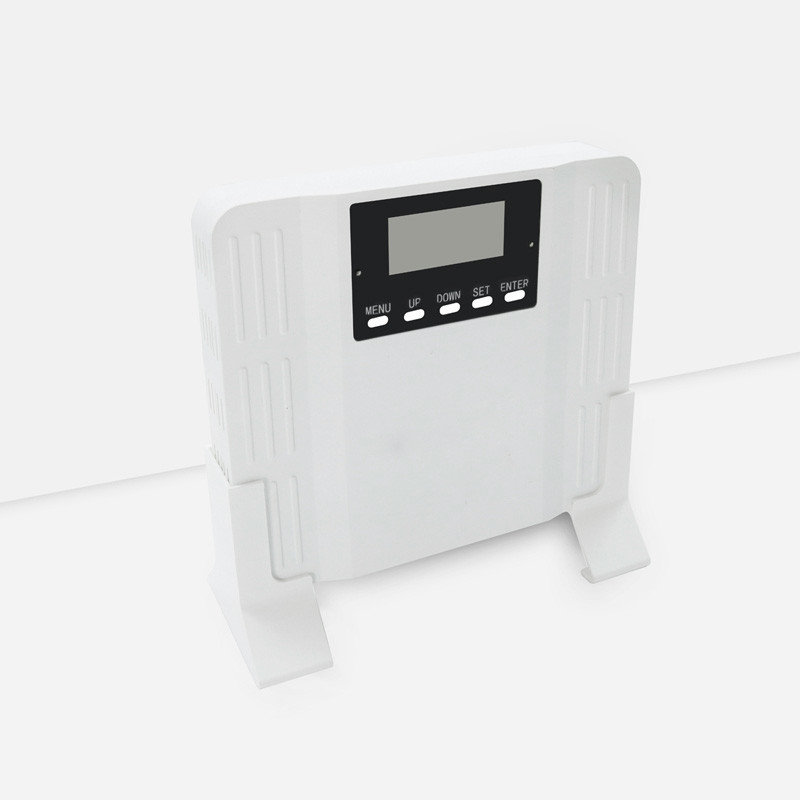

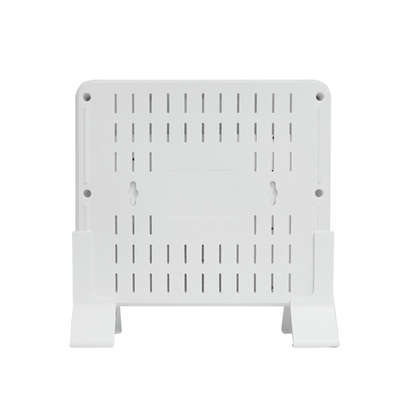

Gain 70dB Mobile Signal Boosters Amplifier With MGC ALC Function

Gain 70dB Mobile Signal Boosters Amplifier With MGC ALC Function

Brand Name: ATNJ
Model Number: AS-LTE+5G-D1
MOQ: 5Pcs
Price: USD+180--230+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
1800MHz Frequency Range:
1710-1785MHz / 1805-1880MHz
2600MHz Frequency Range:
2496-2690MHz / 2496-2690MHz
Products Type:
5G Signal Repeater
RF Connect Type:
SMA/Female Connector
Weight:
1.85kg
Packing Size:
54x19x16cm
Trademark:
ATNJ
Origin:
Shenzhen,CN
Supply Ability:
1000+unit+per day.
Highlight:

Gain 70dB Mobile Signal Boosters

,

MGC Mobile Signal Booster Device

,

MGC ALC Mobile Signal Repeater

Product Description

Gain 70dB Mobile Signal Boosters Amplifier With MGC ALC Function



Dual Band 5G Signal Booster 1800MHz + N41 2600MHz New Listing Mobile Signal Repeater



RF repeater with industrial design, combines muti mobile network signals together.and improves the mobile voice and data communication, aiming to provide a more cost-effective solution for signal. RF repeater is easy to install and maintain, which could help signal providers get fast solution.

A repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then re-transmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and re-transmitted to the BTS via the opposite direction.



Technical Specifications

LTE 1800 Performance Characteristics



Uplink

Downlink

Remark

Frequency range

1710MHz-1785 MHz

1805 MHz-1880 MHz



Bandwidth

75 MHz

75 MHz



Output power

17±2dBm

17±2dBm



Device gain

60±3dB

65±3dB



ALC/AGC Range

≥30dB

≥30dB



Noise

≤9dB

≤9dB



Ripple in band

≤8dB

≤8dB



VSWR

≤2.0dBm

≤2.0dBm



ACLR(dBc)

≤-36

≤-36



Time delay

≤3.0μs

≤3.0μs





Spurious emission

9kHz~150kHz

≤-36dBm @1kHz



150kHz~30MHz

≤-36dBm @10kHz



30MHz~1GHz

≤-36dBm @100kHz



1GHz~12.75GHz

≤-30dBm @1MHz



EVM

≤3.5%

≤3.5%



TDD-NR 2600 Performance Characteristics



Uplink

Downlink



Frequency range

2496-2690MHz



Bandwidth

195 MHz



Output power

17±2dBm

17±2dBm



Device gain

60±3dB

60±3dB



ALC/AGC Range

≥30dB

≥30dB



Noise

≤9dB

≤9dB



Ripple in band

≤5dB

≤5dB



VSWR

≤2.0dBm

≤2.0dBm



ACLR(dBc)

≤-36

≤-36



Time delay

≤3.0μs

≤3.0μs





Spurious emission

9kHz~150kHz

≤-36dBm @1kHz



150kHz~30MHz

≤-36dBm @10kHz



30MHz~1GHz

≤-36dBm @100kHz



1GHz~12.75GHz

≤-30dBm @1MHz



256QAM EVM

≤3.5%

≤3.5%



Performance Characteristics

Working voltage

DC 5.0V



Working current

≤3.0A



Power adapter input voltage

AC 100~240V,50/60Hz



Power comsumption

≤15W



Enviroment temperature

-25℃~+55℃



relative humidity

≤85%



Device connection type

SMA-J



Power port

KLD-35-13



Device size

205×170×38mm



Weight

≤1Kg



Further detail pls click here for downloading the products specification:

1800+2600MHz 5G Signal Repeater.pdf


Selling Point





1. Smart LCD : Show the real-time signal strength.



2. Sleeping Mode : When no user calls, the device works in Sleeping mode, so as to achieve the purpose of energy saving.



3. ALC(Automatic Level Control) : Automatically adjust the output gain down to optimal figure while the output gain is above the optimal figure by the ALC circuit, this can greatly optimize the calling and data transfer quality.



4. AGC (Automatic Gain Control) : When the downlink output signal is too strong or self-oscillated, booster can automatically reduce the gain and reduce the interference signal.



5. MGC (Manual Gain Control) : In order to install the booster conveniently, all frequency band of the booster have the Gain attenuation adjustment function, the adjustment scope is 0-33dB.







Item Description





Gain 70dB Mobile Signal Boosters Amplifier With MGC ALC Function 0Gain 70dB Mobile Signal Boosters Amplifier With MGC ALC Function 1Gain 70dB Mobile Signal Boosters Amplifier With MGC ALC Function 2Gain 70dB Mobile Signal Boosters Amplifier With MGC ALC Function 3Gain 70dB Mobile Signal Boosters Amplifier With MGC ALC Function 4





The repeater makes the signal stronger in places with poor signal coverage such as:



1) Underground areas: basements, parking lots, tunnels;



2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;



3) Places distant from the BTS like private houses.





900MHz 1800MHz GSM Signal Booster For Home Dual Band 5dB Low Noise 9

Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 11

Gain 70dB Mobile Signal Boosters Amplifier With MGC ALC Function 7



Shipping



● We will send your parcel as soon as posiible after payment confirmed, Within 48 hours for normal,Except weekend and Chinaese holidays.

● Please provide your correct address,full name,and zip code.

● We generally would declare the parcel with lower value to aviod or lessen the Customs Taxs.Import Tax is not including in the price. When it happens, it is buyers responsibility to pay for the tax.

● Shipping is out of our control. If you want to get the product fast, please choose fast shipping methods, like EMS, UPS and DHL. If you find the package is beyond promised delivered time, please contact us, we will contact with the carriers and find out the reason.



FAQ:



1. Why choose us for cooperation?

We have the professional engineer to develop and make them suit for all over the world.we also will deal with all the problem when you have problem and reply to you at any time.


2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.



3. Does the signal booster work have radiation or not ?

Yes,but just little ,it also can reduce the radiation when you calling ,because it will have more radiation if no signal when you dialing on your phone.So don’t worry and use in house ,it is better for you than not use when no signal in house.


4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.


5. Can this mobile signal repeater create a signal where there is no cell signal before?
The mobile signal repeater cannot produce a signal, only amplify a weak one.
