2W Band3 1800MHz Mobile Signal Booster Cellular Amplifier Repeater
2 Watt Customized Band3 1800MHz 2G 4G Signal Booster Cellular Repeater Amplifier
General
The 1800MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Selling Point

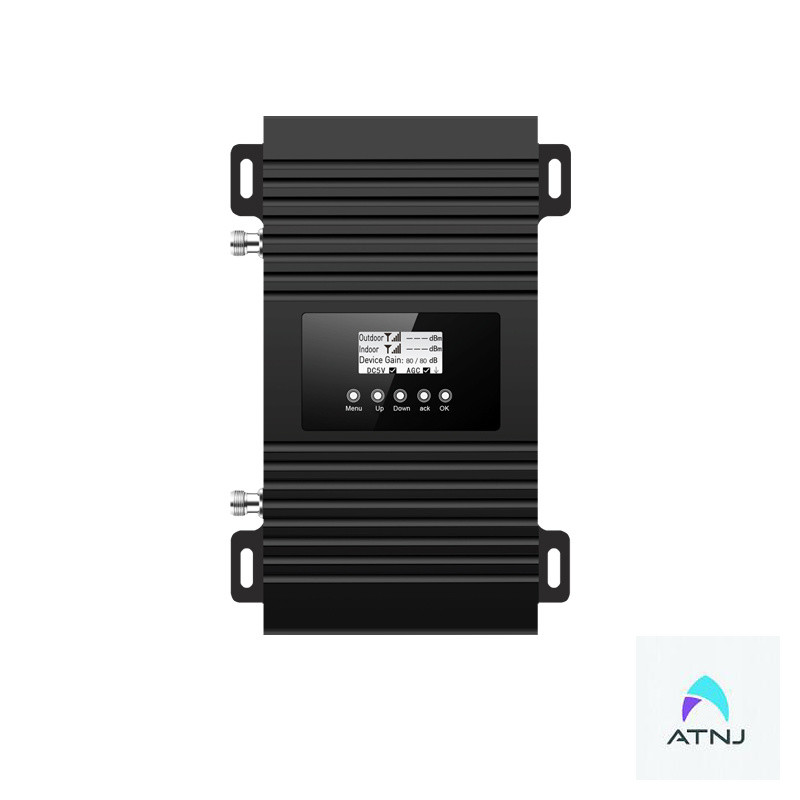

1. Intelligent to guide the installation with LCD
2. Real time display the signal strength.
3. Automatic dormancy when no user make the calling
4. Automatic alarm when installation mistake and provide the according solution
5. Automatic adjust the system gain to avoid the repeater self-excitation
6. Initiative reminding when the device was damaged.
Technical Specifications
Single Band Repeater with AGC/MGC | ||||
Model | AT-003-W | |||
Frenquecy Range | UplinK: 1920-1980MHz Downlink: 2110-2170MHz | |||
Working System | Band1 WCDMA 2100MHz | |||
Gain | 85dB | |||
Device Output Power | 2 watt | |||
Bandwidth | Wide Range | |||
Ripple in Band | ≤4dB | |||
Noise Figure @ Max.Gain | ≤6dB | |||
V.S.W.R | ≤2dB | |||
MTBF | >50000Hours | |||
Power Supply | AC110V~220V;DC+5V/2A | |||
Power Comsumption | <20W | |||
Impedance Matching | 50ohm | |||
Mechanical Specification | ||||
RF Connector | N/F | |||
Cooling | Heatsink Convection Cooling | |||
Dimension | 170*130*26(mm) | |||
Net Weight | 0.35KG | |||
Installation Type | Wall Installation or Desk | |||
Environment Conditions | IP40 | |||
Origin | Shenzhen | |||
Operating Temperature | -10°C~55°C |
Further detail pls click here for downloading the products specification:
DCS 1800MHz AT003 Signal Repeater.pdf
Please Check Frequency before Buying How to check?
- Android mobile phone
Download App called < Network Cell Info Lite >
The App will tell the number of LTE band
- Iphone
Dial *3001#12345#*
Clink Cell Serving Info
Check Freq Band Indicator, the number is LTE Band
Product Description
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
Shipping
● We will send your parcel as soon as posiible after payment confirmed, Within 48 hours for normal,Except weekend and Chinaese holidays.
● Shipping is out of our control. If you want to get the product fast, please choose fast shipping methods, like EMS, UPS and DHL. If you find the package is beyond promised delivered time, please contact us, we will contact with the carriers and find out the reason.
Warranty
● Please note that we always check and test the product twice before shipping and pack them well as far as possibel.If the product is broken at receiving,please contact us,we would resend you a new one.
● Three years gaurantee period for our booster,it is ioly 3 months for thr accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
FAQ:
Q1 Are you trading company or manufacturer ? Could I use our own logo and label?
A: We are factory, with trading service. We provide OEM/OEM service.
Q7: What is your payment terms?
A: We accept Alibaba Trade Assurance, T/T, West Union, Paypal, Bank Account Transfering.
|
