Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AT-003-W
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+230-280+unit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Support Frequency Range: |
1920-1980MHz/2110-2170MHz, Customized |
Products Type: |
3G Booster |
Device Gain: |
85dB |
Device Output: |
27dBm |
Color For Choice: |
Black Or Customized |
ALC Intelligent Function: |
Done |
MGC Function: |
Done |
RF Connect Type: |
N/Female |
Device DWeight: |
8.5kg |
Support Frequency Range: |
1920-1980MHz/2110-2170MHz, Customized |
Products Type: |
3G Booster |
Device Gain: |
85dB |
Device Output: |
27dBm |
Color For Choice: |
Black Or Customized |
ALC Intelligent Function: |
Done |
MGC Function: |
Done |
RF Connect Type: |
N/Female |
Device DWeight: |
8.5kg |
2 Watt Customized 3G Signal Booster Cellular Repeater Amplifier
2 Watt Customized Band1 2100MHz 3G 4G Signal Booster Cellular Repeater Amplifier
Selling Point

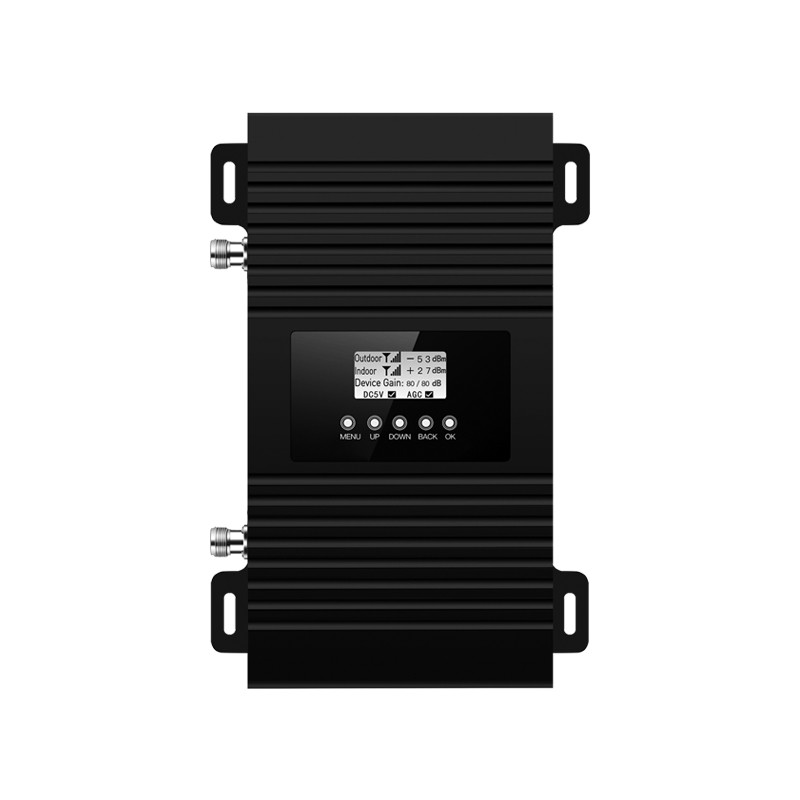

1. Smart LCD : Show the real-time signal strength.
2. Sleeping Mode : When no user calls, the device works in Sleeping mode, so as to achieve the purpose of energy saving.
3. ALC(Automatic Level Control) : Automatically adjust the output gain down to optimal figure while the output gain is above the optimal figure by the ALC circuit, this can greatly optimize the calling and data transfer quality.
4. AGC (Automatic Gain Control) : When the downlink output signal is too strong or self-oscillated, booster can automatically reduce the gain and reduce the interference signal.
5. MGC (Manual Gain Control) : In order to install the booster conveniently, all frequency band of the booster have the Gain attenuation adjustment function, the adjustment scope is 0-33dB.
Technical Specifications
| Single Band Repeater with AGC/MGC | ||||
| Model | AT-003-W | |||
| Frenquecy Range | UplinK: 1920-1980MHz Downlink: 2110-2170MHz | |||
| Working System | Band1 WCDMA 2100MHz | |||
| Gain | 85dB | |||
| Device Output Power | 2 watt | |||
| Bandwidth | Wide Range | |||
| Ripple in Band | ≤4dB | |||
| Noise Figure @ Max.Gain | ≤6dB | |||
| V.S.W.R | ≤2dB | |||
| MTBF | >50000Hours | |||
| Power Supply | AC110V～220V;DC+5V/2A | |||
| Power Comsumption | <20W | |||
| Impedance Matching | 50ohm | |||
| Mechanical Specification | ||||
| RF Connector | N/F | |||
| Cooling | Heatsink Convection Cooling | |||
| Dimension | 170*130*26(mm) | |||
| Net Weight | 0.35KG | |||
| Installation Type | Wall Installation or Desk | |||
| Environment Conditions | IP40 | |||
| Origin | Shenzhen | |||
| Operating Temperature | -10°C~55°C | |||
Further detail pls click here for downloading the products specification:
WCDMA 2100MHz AT003 Signal Repeater.pdf
Please Check Frequency before Buying How to check?
- Android mobile phone
Download App called < Network Cell Info Lite >
The App will tell the number of LTE band
- Iphone
Dial *3001#12345#*
Clink Cell Serving Info
Check Freq Band Indicator, the number is LTE Band
Product Description
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
FAQ:
Q1 Could you send us antenna sample for qulification?
A: Yes, we will consider the antenna sample qulification as the first step of our long term coorperation, we will rebate the sample charge in further mass production order.
Q7: What is your payment terms?
A: We accept Alibaba Trade Assurance, T/T, West Union, Paypal, Bank Account Transfering.
