Product Details:
|
Frequency Range: | According To Customer's Need,(Band 3)1800MHz -- Uplink Frequency: 1710-1710MHz/Downlink Frequency : 1805-1880MHz (Band 8) 900MHz -- Uplink Frequency: 890-915MHz/Downlink Frequency : 935-960MHz | Device Gain: | 70dB |
---|---|---|---|
Device Output Power: | 20dBm | Color: | Grey And Customized |
AGC Intelligent Function: | Done,31dB @ 1dB/ Step | ALC Intelligent Function: | Done |
Power Supply: | AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter) | Type:: | Signal Repeater |
High Light: | 20dBm Mobile Phone Range Extender,2100MHz Mobile Phone Range Extender,20dBm Dual Band GSM Repeater |

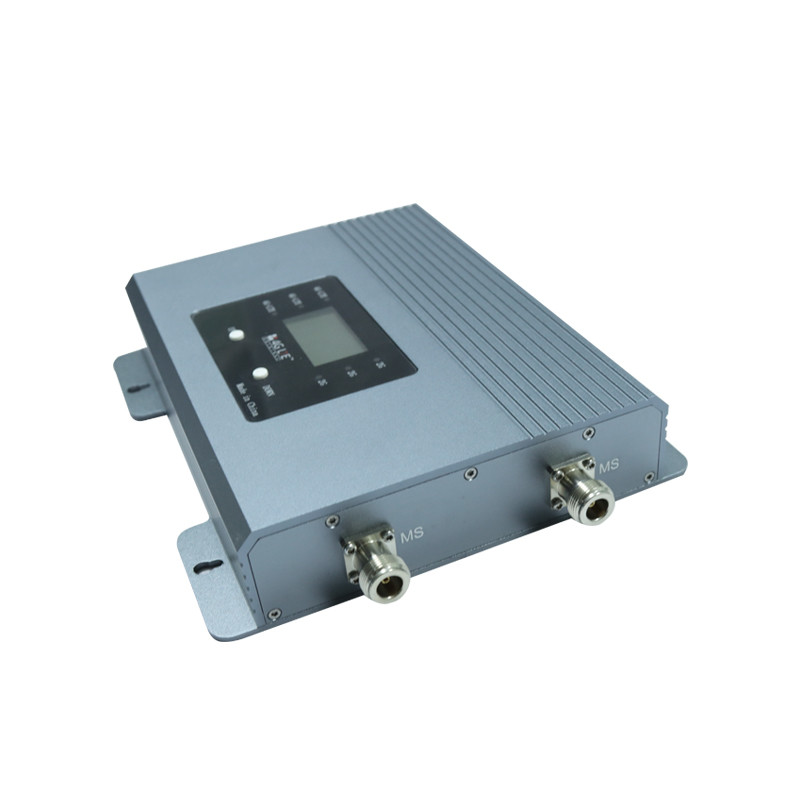

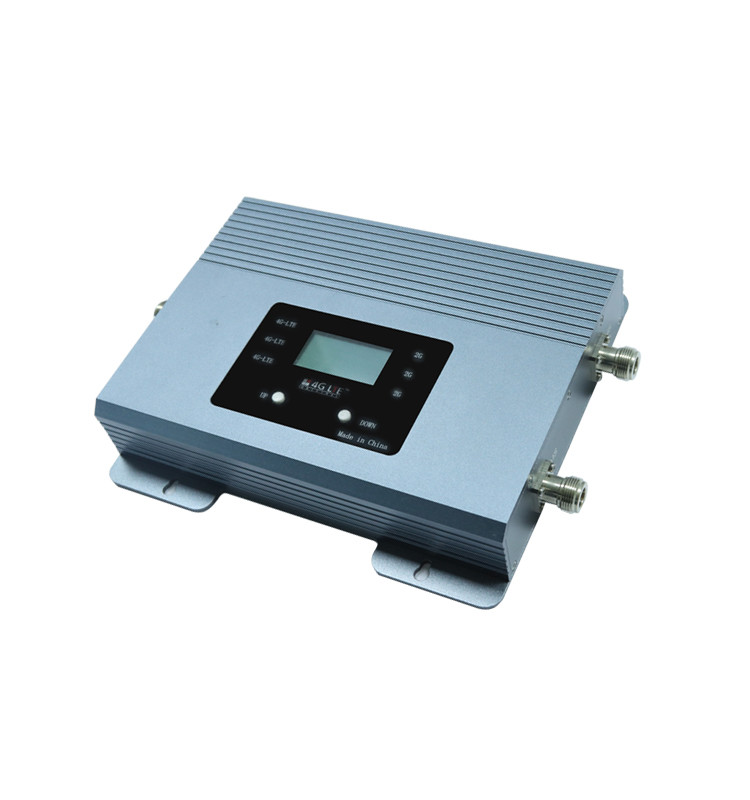

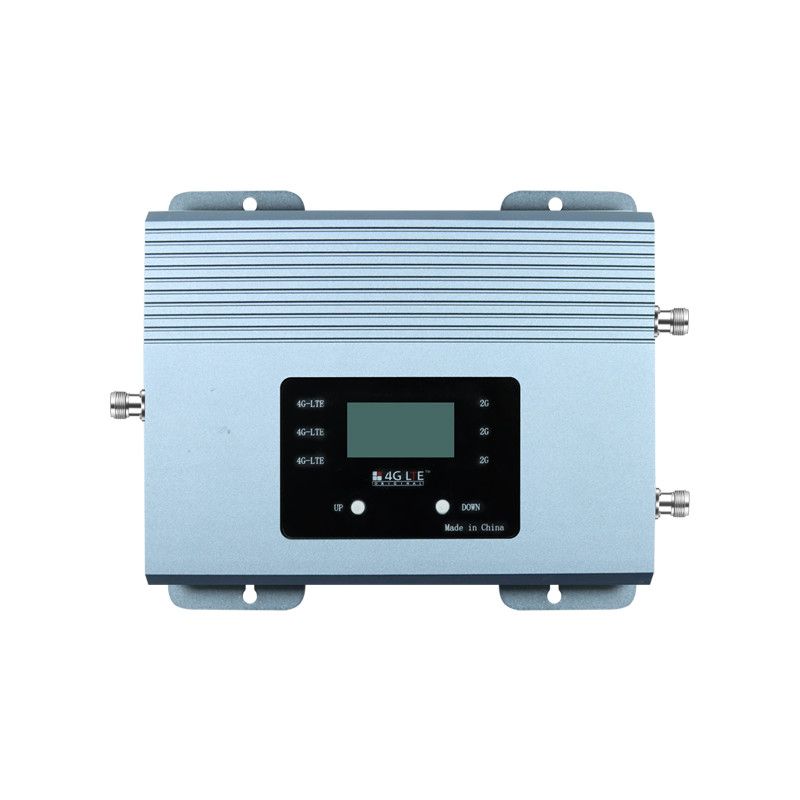

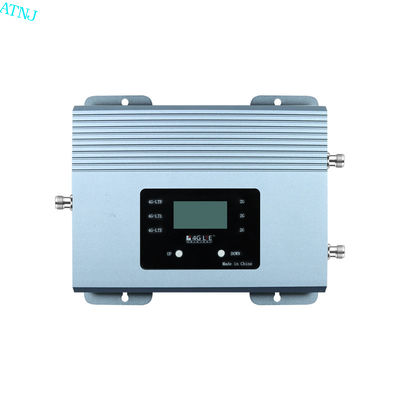

Dual Band 900/2100MHz Mobile Phone Signal Booster Repeater Amplifier
Customized Dual Output 900+2100MHz mobile signal booster 2G 3G cellular amplifier
Product Feature:
1. Model No: AS-C .
2. Improve 2G Voice and 3G Internet .
3. Smart LCD Display. Show clear outdoor signal strength, work signal strength .
4. Coverage: cover about 300sqm without any barrier .
5. Full intelligent:Sleeping Mode,AGC&ALC Function. Can control gain automatically.Avoid base station interference .
6. CDMA 850MHz. [Band 5] (Frequency Band :Uplink:824-849MHz, Downlink:869-894MHz) .
7.This model can support at least 20 cell phone in the same time .
8. CE & RoHS certificate. 3 years Warranty .
9. Connector Type: SMA-female connector .
10. Easy to install with LCD screen intelligent guide .
Technical Specifications
Specifications | Parameters | |
Frequency Range (Customers to Choose) | Uplink | 890-915MHz, 1710-1785MHz |
Downlink | 935-960MHz, 1805-1880MHz | |
Frequency Bandwidth (3dB Bandwidth) | 25MHz&75MHz | |
Automatic gain control (Step Attenuation) | 31dB @ 1dB/ Step | |
Auto Gain Control | 20dB Min. | |
Spurious Emission | ≤ -15dBm/30kHz | |
9kHz~1GHz: ≤ -36dBm / 30kHz | ||
1GHz~12.75GHz: ≤ -30dBm/30kHz | ||
Inter-Modulation Attenuation ACPR | ≤ -40dBc / 30kHz (measured under rated output power) | |
In-band Ripple | ≤ 3dB | |
VSWR | <=2 | |
I/O Impedance | 50 Ω | |
Noise Figure | ≤ 5dB | |
System Delay | ≤ 5μs | |
RF Connector(Customers to Choose) | N(Female) | |
Operating Temperature | Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C | |
Power Supply | AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) | |
Dimensions | 165*130*40 (mm) | |
Weight | ≤ 0.8 kg(Net) | |
Alarm Monitoring System | Alarm for uplink self-oscillation | |
Certification: | ISO, RoHS, CE, CCC |
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label? We are the factory, with good trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Please feel free to contact us if there are any other questions.
