Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: MS-W
Document: WCDMA 2100MHz B011A Signal ...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+100---120+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Frequency Range: |
1920-1980MHz/2110-2170MHz |
Gain: |
80dB |
Color: |
Grey ,Customized |
In-band Ripple: |
≤ 3dB |
Connector: |
N-Female Connector |
Certification: |
CE,RoHS And REACH Compliant By Exemption |
Products Name: |
Signal Repeater |
Production Capacity: |
10000/Per Month |
Frequency Range: |
1920-1980MHz/2110-2170MHz |
Gain: |
80dB |
Color: |
Grey ,Customized |
In-band Ripple: |
≤ 3dB |
Connector: |
N-Female Connector |
Certification: |
CE,RoHS And REACH Compliant By Exemption |
Products Name: |
Signal Repeater |
Production Capacity: |
10000/Per Month |

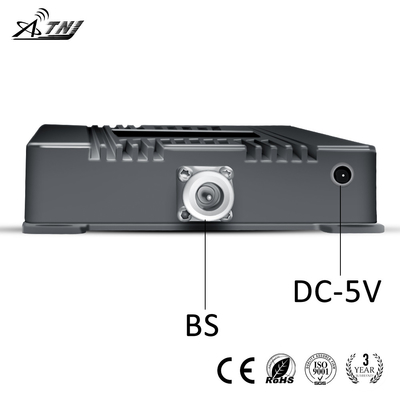

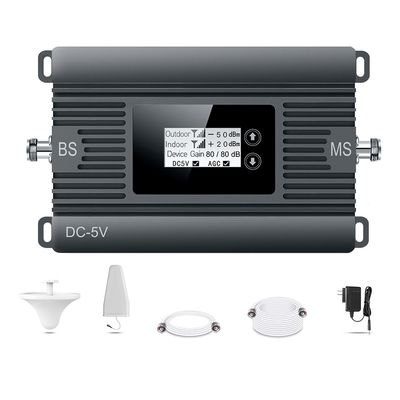

Cell Phone Single Band WCDMA Signal Booster Customized Grey Color
Cell Phone Booster Mobile Signal Repeater Ampilifier Single Band WCDMA
Products Spect:
GlobaL application ATNJ factory 2100MHz 3G signal repeater for your selection:
WCDMA 2100MHz 2G/3G Pico repeater is applied specifically in small area indoor DAS system. The base station signal is coupled and amplified by Pico repeater into in building system. The amplified signals is transmitted by indoor antenna. Meanwhile the indoor antenna receives the cell phone signal, and send the signal to the base station as uplink. This method can eliminate the signal dead spot, reject the interference, provide the stable signal communication for cell phone users. This Pico repeater mainly solves the problem spot problem in building. The coverage area is as large as 3000 square meters in open space, and 1000 square meters in partial obstacle area, 500 square meters in complete obstacle area. The edge power level for coverage area is above 85dBm. The repeater output power level is less than 20dBm.
Pico Repeater is a bi-directional amplifier that allows for the reception of signals, amplifies the signal and re-transmits into areas where there is no or very low signal level coverage enabling a mobile user to establish a call connection.
Pico Repeater can be deployed in indoor coverage and dead area. It is especially advantageous to use in 100M2-1000M2,which is a very economical solution. The output power is up to 20dBm per carrier.
Meanwhile, it can also boost the speed of GPRS.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
1920-1980MHz |
|
Downlink |
2110-2170MHz |
|
|
Frequency Bandwidth |
60MHz |
|
|
Gain |
80dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
27dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
Network |
3G |
|
|
Trademark |
ATNJ |
|
Further detail pls click here for downloading the products specification:
WCDMA 2100MHz B011A Signal Repeater.pdf
We are manufacturer, and have our own factory.
Warranty
● Please note that we always check and test the product twice before shipping and pack them well as far as possible.If the product is broken at receiving,please contact us,we would resend you a new one.
● Three years warranty period for our booster,it is only 3 months for the accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label? We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Please feel free to contact us if any other questions.
