Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-LTE+5G
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+540---580+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
N78 Frequency Range: |
Customized 3300 - 3800MHz |
Products Type: |
Cellular Signal Booster |
Weight: |
1.85kg |
Packing Size: |
54x19x16cm |
Trademark: |
ATNJ |
Origin: |
Shenzhen,CN |
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
N78 Frequency Range: |
Customized 3300 - 3800MHz |
Products Type: |
Cellular Signal Booster |
Weight: |
1.85kg |
Packing Size: |
54x19x16cm |
Trademark: |
ATNJ |
Origin: |
Shenzhen,CN |

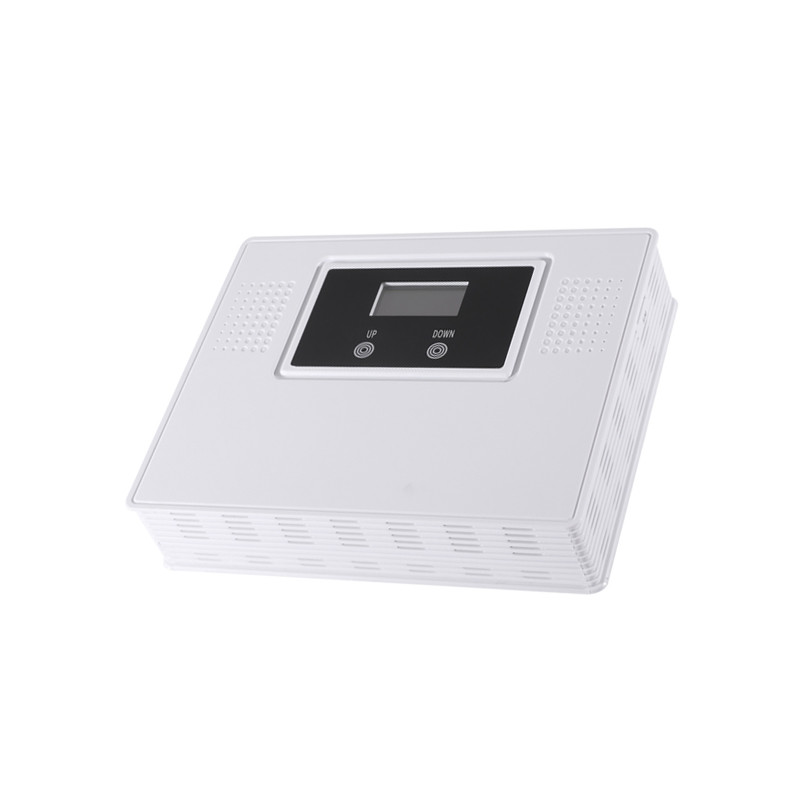

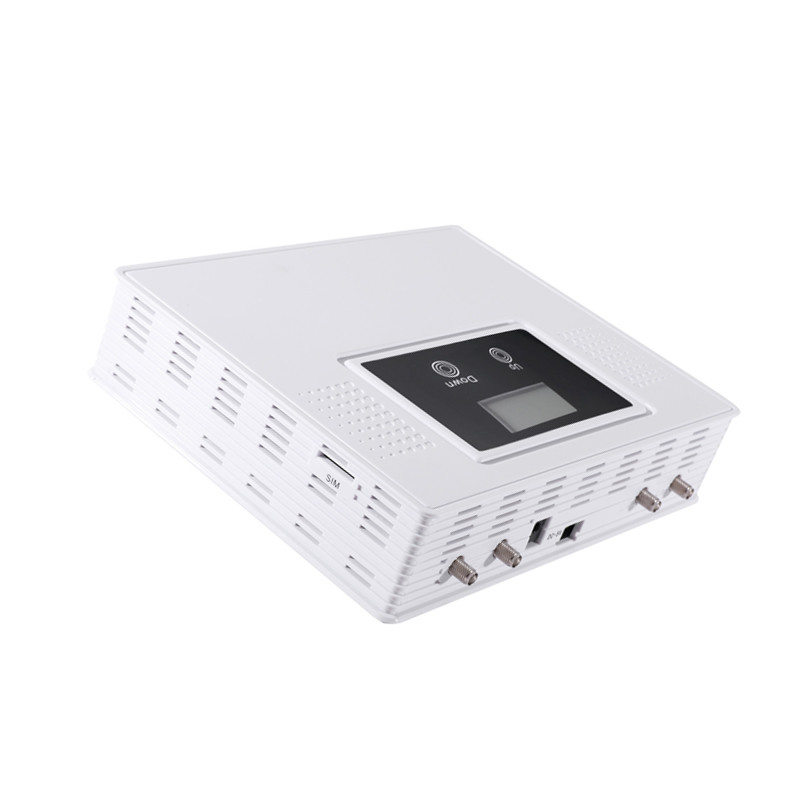

Customized 3300MHz 3800MHz 5G Signal Extender Cell Phone Extender
5G Signal Booster Customized 3300 - 3800MHz Cell Phone Signal Cellular Amplifier
Selling Point

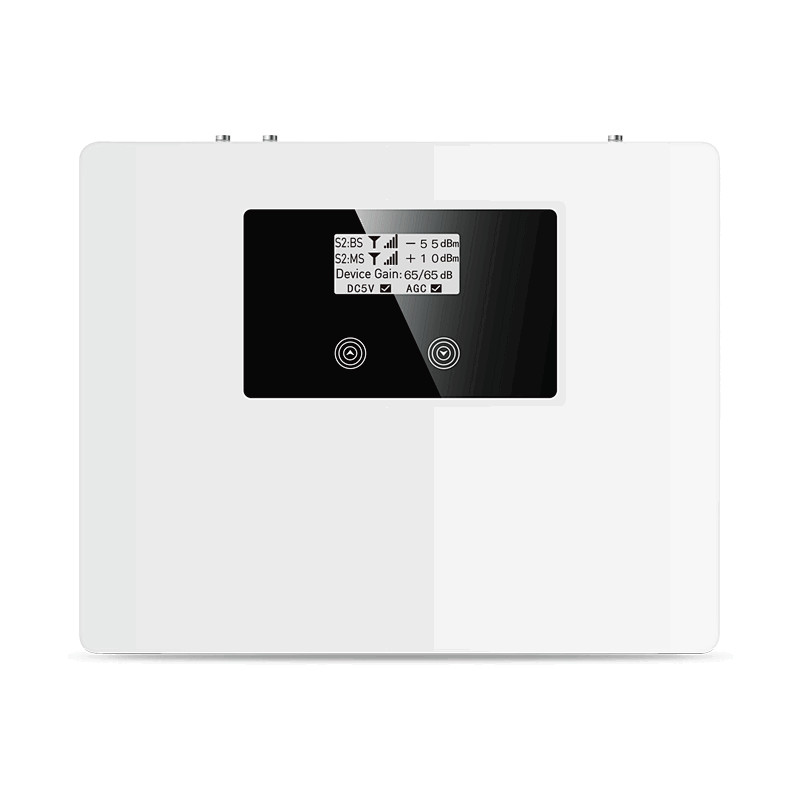

1. Intelligent to guide the installation with LCD
2. Real time display the signal strength.
3. Automatic dormancy when no user make the calling
4. Automatic alarm when installation mistake and provide the according solution
5. Automatic adjust the system gain to avoid the repeater self-excitation
6. Initiative reminding when the device was damaged.
Technical Specifications
|
LTE 1800 Performance Characteristics |
|||
|
|
Uplink |
Downlink |
Remark |
|
Frequency range |
1710MHz-1785 MHz |
1805MHz-1880 MHz |
|
|
Bandwidth |
75MHz |
75 MHz |
|
|
Output power |
17±2dBm |
17±2dBm |
|
|
Device gain |
60±3dB |
65±3dB |
|
|
ALC/AGC Range |
≥30dB |
≥30dB |
|
|
Noise |
≤9dB |
≤9dB |
|
|
Ripple in band |
≤8dB |
≤8dB |
|
|
VSWR |
≤2.0dBm |
≤2.0dBm |
|
|
ACLR(dBc) |
≤-36 |
≤-36 |
|
|
Time delay |
≤3.0μs |
≤3.0μs |
|
|
Spurious emission |
9kHz～150kHz |
≤-36dBm @1kHz |
|
|
150kHz～30MHz |
≤-36dBm @10kHz |
|
|
|
30MHz～1GHz |
≤-36dBm @100kHz |
|
|
|
1GHz～12.75GHz |
≤-30dBm @1MHz |
|
|
|
EVM |
≤3.5% |
≤3.5% |
|
|
TDD-NR 3300---3800 Performance Characteristics |
|||
|
|
Uplink |
Downlink |
|
|
Frequency range |
3300MHz-3800MHz or 3300MHz-3800MHz |
|
|
|
Bandwidth |
100 MHz |
|
|
|
Output power |
17±2dBm |
17±2dBm |
|
|
Device gain |
60±3dB |
60±3dB |
|
|
ALC/AGC Range |
≥30dB |
≥30dB |
|
|
Noise |
≤9dB |
≤9dB |
|
|
Ripple in band |
≤5dB |
≤5dB |
|
|
VSWR |
≤2.0dBm |
≤2.0dBm |
|
|
ACLR(dBc) |
≤-36 |
≤-36 |
|
|
Time delay |
≤3.0μs |
≤3.0μs |
|
|
Spurious emission |
9kHz～150kHz |
≤-36dBm @1kHz |
|
|
150kHz～30MHz |
≤-36dBm @10kHz |
|
|
|
30MHz～1GHz |
≤-36dBm @100kHz |
|
|
|
1GHz～12.75GHz |
≤-30dBm @1MHz |
|
|
|
256QAM EVM |
≤3.5% |
≤3.5% |
|
|
Performance Characteristics |
|||
|
Working voltage |
DC 5.0V |
|
|
|
Working current |
≤3.0A |
|
|
|
Power adapter input voltage |
AC 100～240V,50/60Hz |
|
|
|
Power comsumption |
≤15W |
|
|
|
Enviroment temperature |
-25℃～+55℃ |
|
|
|
relative humidity |
≤85% |
|
|
|
Device connection type |
SMA-J |
|
|
|
Power port |
KLD-35-13 |
|
|
|
Device size |
205×170×38mm |
|
|
|
Weight |
≤1Kg |
|
|
Further detail pls click here for downloading the products specification:
1800MHz+N78 A034 5G Signal Repeater.pdf
Item Description
Please Check Frequency before Buying How to check?
- Android mobile phone
Download App called < Network Cell Info Lite >
The App will tell the number of LTE band
- Iphone
Dial *3001#12345#*
Clink Cell Serving Info
Check Freq Band Indicator, the number is LTE Band
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. Does the signal booster work have radiation or not ?
Yes,but just little ,it also can reduce the radiation when you calling ,because it will have more radiation if no signal when you dialing on your phone.So don’t worry and use in house ,it is better for you than not use when no signal in house.
5. Can this mobile signal repeater create a signal where there is no cell signal before?
The mobile signal repeater cannot produce a signal, only amplify a weak one.
Warranty
● Please note that we always check and test the product twice before shipping and pack them well as far as possibel.If the product is broken at receiving,please contact us,we would resend you a new one.
● Three years gaurantee period for our booster,it is ioly 3 months for thr accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
