Product Details:
|
| 1800MHz Frequency Range: | 1710-1785MHz / 1805-1880MHz | 2600MHz Frequency Range: | 2496-2690MHz / 2496-2690MHz |
|---|---|---|---|
| Gain: | 70dB,UL Gp≥68 DL Gp≥70, Uplink Gp≥68dB Downlink Gp≥68dB, | Output Power: | 20dBm |
| Trademark: | ATNJ | Products Type: | 5G Signal Booster, 4g |
| High Light: | 20dBm 5G Signal Booster,1800MHz 5G Signal Booster,20dBm 5G Mobile Signal Booster |
||

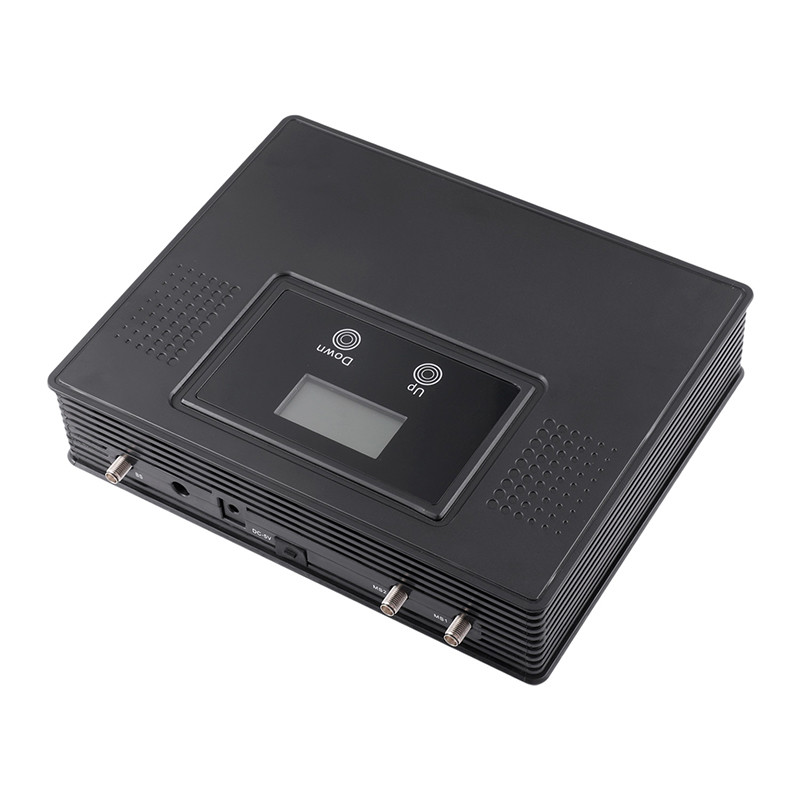

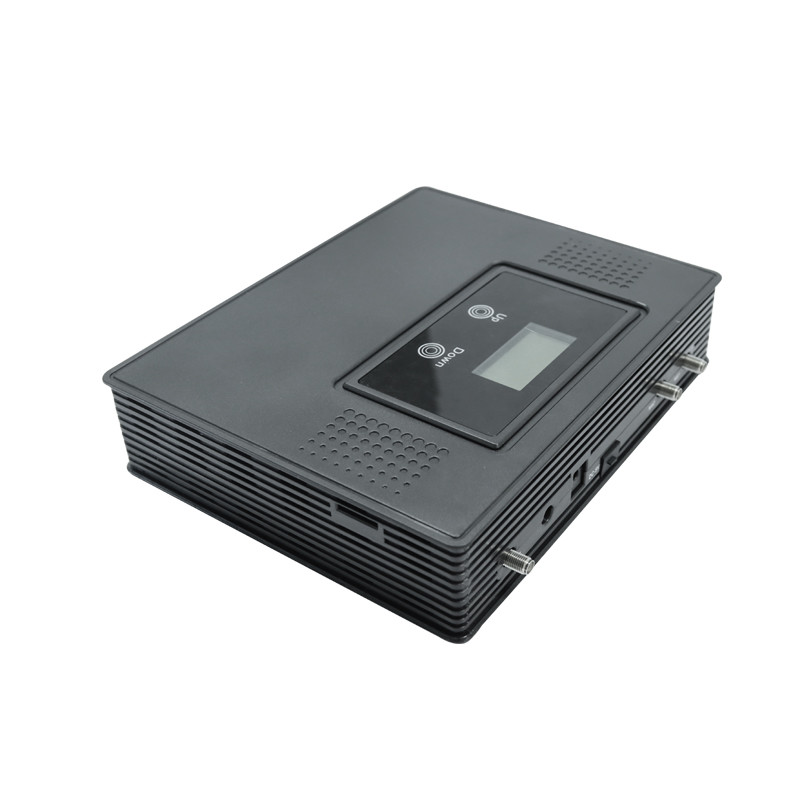

Output Power 20dBm 5G Signal Booster Dual Band 1800MHz N41 2600MHz
Dual Band 5G Signal Booster 1800MHz+N41 2600MHz Mobile Signal Repeater
Selling Point
Pico Repeater is a bi-directional amplifier that allows for the reception of signals, amplifies the signal and re-transmits into areas where there is no or very low signal level coverage enabling a mobile user to establish a call connection.
1. Intelligent to guide the installation with LCD
2. Real time display the signal strength.
3. Automatic dormancy when no user make the calling
4. Automatic alarm when installation mistake and provide the according solution
5. Automatic adjust the system gain to avoid the repeater self-excitation
6. Initiative reminding when the device was damaged.
Technical Specifications
|
LTE 1800 Performance Characteristics |
|||
|
|
Uplink |
Downlink |
Remark |
|
Frequency range |
1735MHz-1785 MHz |
1830 MHz-1880 MHz |
|
|
Bandwidth |
50 MHz |
50 MHz |
|
|
Output power |
17±2dBm |
17±2dBm |
|
|
Device gain |
60±3dB |
65±3dB |
|
|
ALC/AGC Range |
≥30dB |
≥30dB |
|
|
Noise |
≤9dB |
≤9dB |
|
|
Ripple in band |
≤8dB |
≤8dB |
|
|
VSWR |
≤2.0dBm |
≤2.0dBm |
|
|
ACLR(dBc) |
≤-36 |
≤-36 |
|
|
Time delay |
≤3.0μs |
≤3.0μs |
|
|
Spurious emission |
9kHz～150kHz |
≤-36dBm @1kHz |
|
|
150kHz～30MHz |
≤-36dBm @10kHz |
|
|
|
30MHz～1GHz |
≤-36dBm @100kHz |
|
|
|
1GHz～12.75GHz |
≤-30dBm @1MHz |
|
|
|
EVM |
≤3.5% |
≤3.5% |
|
|
TDD-NR 2600 Performance Characteristics |
|||
|
|
Uplink |
Downlink |
|
|
Frequency range |
2496-2690MHz |
|
|
|
Bandwidth |
195 MHz |
|
|
|
Output power |
17±2dBm |
17±2dBm |
|
|
Device gain |
60±3dB |
60±3dB |
|
|
ALC/AGC Range |
≥30dB |
≥30dB |
|
|
Noise |
≤9dB |
≤9dB |
|
|
Ripple in band |
≤5dB |
≤5dB |
|
|
VSWR |
≤2.0dBm |
≤2.0dBm |
|
|
ACLR(dBc) |
≤-36 |
≤-36 |
|
|
Time delay |
≤3.0μs |
≤3.0μs |
|
|
Spurious emission |
9kHz～150kHz |
≤-36dBm @1kHz |
|
|
150kHz～30MHz |
≤-36dBm @10kHz |
|
|
|
30MHz～1GHz |
≤-36dBm @100kHz |
|
|
|
1GHz～12.75GHz |
≤-30dBm @1MHz |
|
|
|
256QAM EVM |
≤3.5% |
≤3.5% |
|
|
Performance Characteristics |
|||
|
Working voltage |
DC 5.0V |
|
|
|
Working current |
≤3.0A |
|
|
|
Power adapter input voltage |
AC 100～240V,50/60Hz |
|
|
|
Power comsumption |
≤15W |
|
|
|
Enviroment temperature |
-25℃～+55℃ |
|
|
|
relative humidity |
≤85% |
|
|
|
Device connection type |
SMA-J |
|
|
|
Power port |
KLD-35-13 |
|
|
|
Device size |
205×170×38mm |
|
|
|
Weight |
≤1Kg |
|
|
Further detail pls click here for downloading the products specification:
1800+2600MHz A033 5G Signal Repeater.pdf
Item Description
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are the factory, with good trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
