Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-DB900/1800/2100
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+350---380+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
RF Connect Type: |
N/Female Connector |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
900MHz Range: |
890-915MHz/935-960MHz |
Size: |
48x46x18cm+52x21x16cm，8.5kg |
Lightning Protection:: |
With Lightning Protection |
Products Type: |
Signal Repeater, Goboost |
1800MHz Range: |
1710-1785MHz/ 1805-1880MHz |
2100MHz Range: |
1920-1980MHz/ 2110-2170MHz |
Gain: |
80dB |
Output Power: |
27dBm |
RF Connect Type: |
N/Female Connector |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
900MHz Range: |
890-915MHz/935-960MHz |
Size: |
48x46x18cm+52x21x16cm，8.5kg |
Lightning Protection:: |
With Lightning Protection |
Products Type: |
Signal Repeater, Goboost |
1800MHz Range: |
1710-1785MHz/ 1805-1880MHz |
2100MHz Range: |
1920-1980MHz/ 2110-2170MHz |
Gain: |
80dB |
Output Power: |
27dBm |

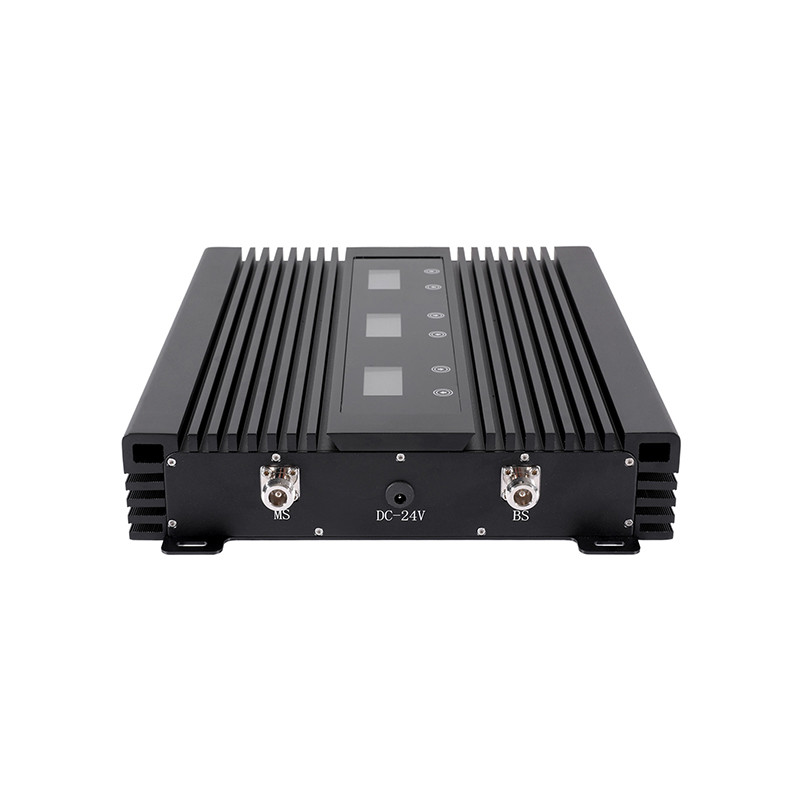

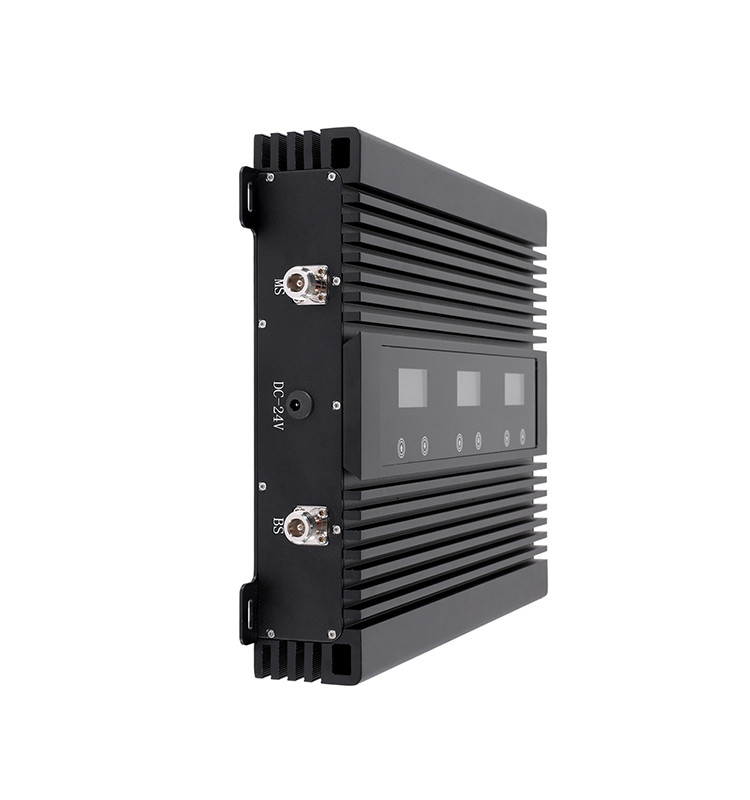

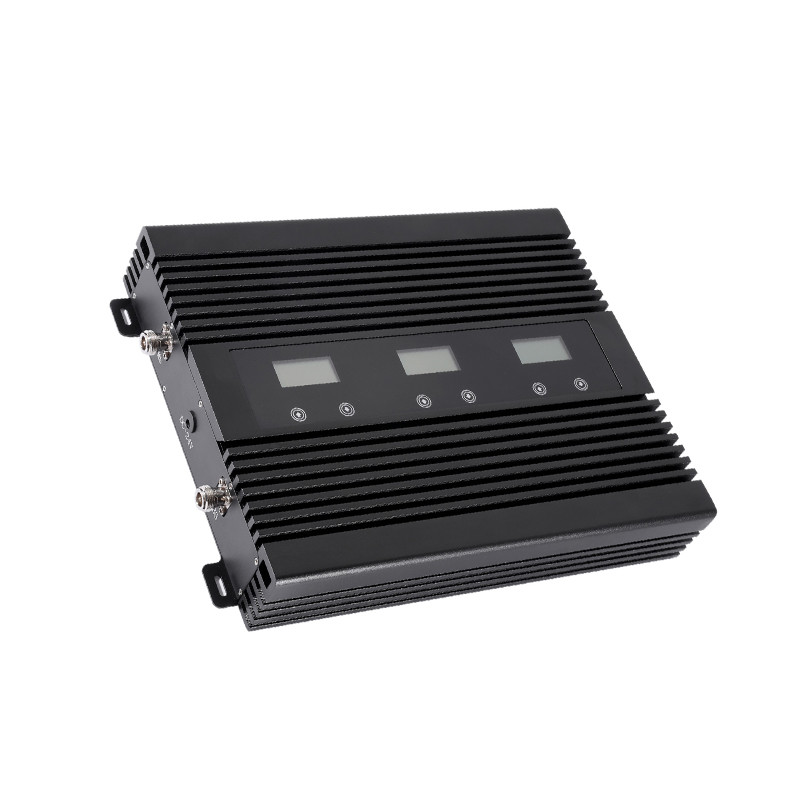

Output Power 27dBm Mobile Phone Signal Amplifier Multi Band Enhancer
Multi-Band Mobile Signal Amplifier Repeater Phone Enhancer 900/1800/2100MHz
You are probably wondering what a cell phone signal booster actually is. This is a common reaction that people have, and we are taking a moment to explain it to you. In the current age of mobile technologies, where the personal devices are wireless and private, every device is backed by a “backbone” wireless network carrier, which could be one of the many major carriers in the country, such as Vodafone. Over the years, the carriers have developed their infrastructure well and have been able to cover most of the country. But there are large parts of the country where the signal coverage is weak or reaches sparingly. This is where the cell phone repeater comes into play. They resolve calls data and LTE reception mainly. In terminology, we call correspondingly 2G 3G and 4G signal.
A cell phone booster is a device that gathers the signal from the air, usually through an outdoor unit (such as an antenna), and “conveys” this signal to an indoor unit that is supposed to boost the signal. This conveying is done through a wired connection between the outdoor antenna and the indoor unit. The indoor cell phone booster, in turn, is provided with external power through a power outlet and has a complex circuitry that allows it to amplify the weak signal that has been received by the outdoor antenna. The indoor unit then sends the electrical signal to the indoor antenna that is directly connected to the unit, and the antenna converts the electrical signal to waves of the same frequency as were received by the outdoor unit. This, the frequency range of the waves does not change, and the cell phones do not notice any difference, except for a dramatic increase in the signal power that they are receiving.
Thus, as we can see, cell phone signal boosters are devices that literally boost the cell phone signal that you are receiving. This is done through some complex circuitry that works through the use of external power and boosts the signal to usable levels.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
890-915MHz,1710-1785MHz,1920-1980MHz |
|
Downlink |
935-960MHz, 1805-1880MHz,2110-2170MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
25MHz&75MHz&60MHz |
|
|
Gain |
80dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
27dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Transmission Medium: |
Cable |
|
Further detail pls click here for downloading the products specification:
900+1800+2100 A013 Signal Repeater.pdf
Product Description
Automatic dormancy when no user make the calling.
Automatic alarm when installation mistake and provide the according solution.
Automatic adjust the system gain to avoid the repeater self-excitation.
initiative reminding when the device was damaged.
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. why should you buy from us not from other suppliers?
1. Competitive price and high quality: Our workers with more than 7 years working experience, so our items is low cost and high productive efficiency. 2. Antenna project customization service: Our employed engineers are with 10 years working experience.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
