Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-BS-W
Document: WCDMA 2100MHz B07 Signal Re...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+120---130+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Frequency Range: |
1920-1980MHz/2110-2170MHz |
Gain: |
70dB,UL Gp≥68 DL Gp≥70, Uplink Gp≥68dB Downlink Gp≥68dB, |
Output Power: |
17-20dBm |
Color: |
Black,White |
Bandwidth: |
Supports 10MHz From 0.2 To 10MHz Bandwidth Adjusted |
RF Connect Type: |
SMA/Female Connector |
Lightning Protection:: |
With Lightning Protection |
Products Type: |
Repeteur Iridium, Signal Booster Amplifier |
Frequency Range: |
1920-1980MHz/2110-2170MHz |
Gain: |
70dB,UL Gp≥68 DL Gp≥70, Uplink Gp≥68dB Downlink Gp≥68dB, |
Output Power: |
17-20dBm |
Color: |
Black,White |
Bandwidth: |
Supports 10MHz From 0.2 To 10MHz Bandwidth Adjusted |
RF Connect Type: |
SMA/Female Connector |
Lightning Protection:: |
With Lightning Protection |
Products Type: |
Repeteur Iridium, Signal Booster Amplifier |

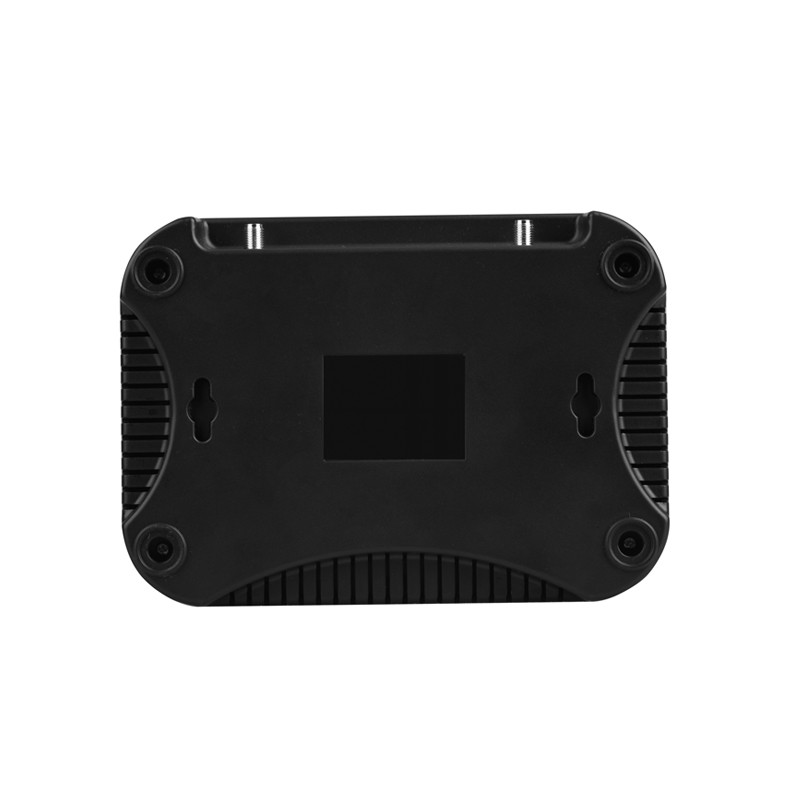

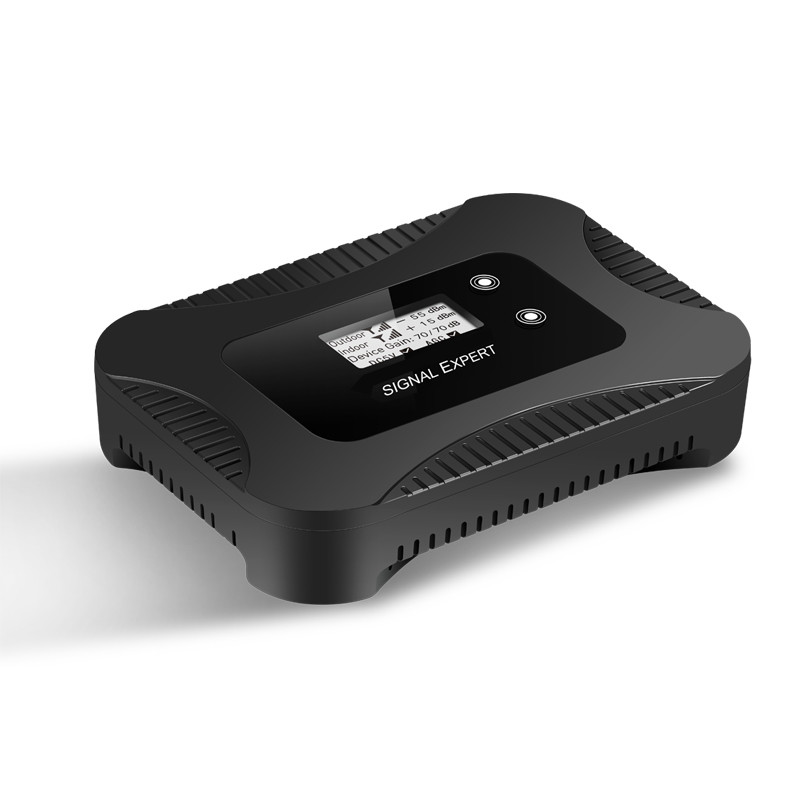

Cellular 2100MHz Cell Phone Signal Amplifier Selected Single Band
Single Band 2100MHz Mobile Signal Repeater Selected Cellular Booster Amplifier
A mobile phone signal repeater provides the ultimate solution in any area where celluar commnuications cannot work well due to leak of signals.The repeater device features easy installation and operation,build-in door antennaand no interference.it could also improve indoor electromagnetism enviroments,protract cellular battery life and reduce radiation of cellphones.A mobile phone repeater is ideal use for house,home,office use.

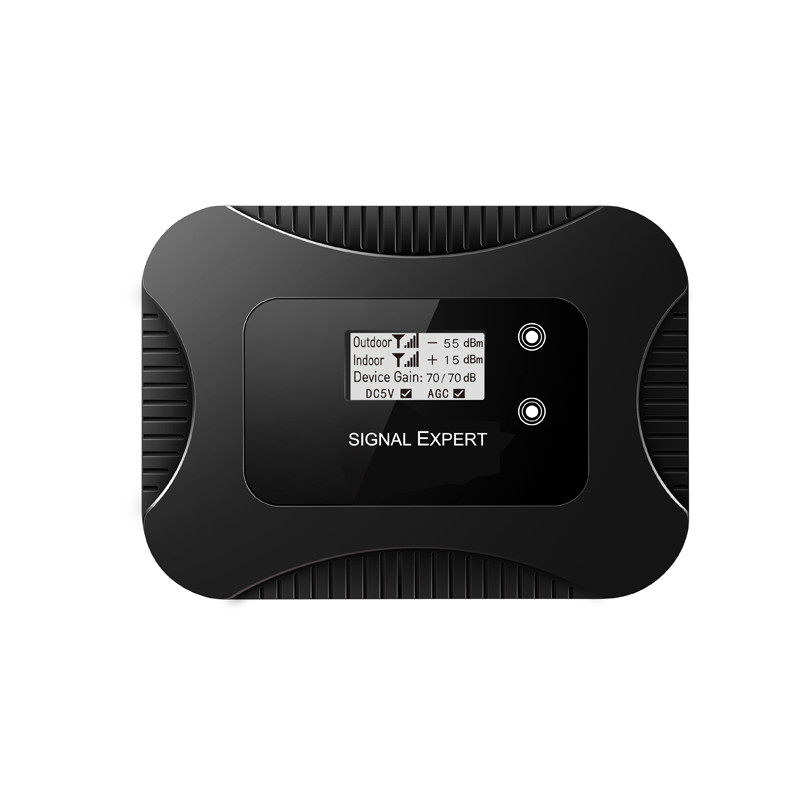

⭐ Intelligent to guide the installation with LCD .
⭐ Real time display the signal strength .
⭐ Automatic dormancy when no user make the calling .
⭐ Automatic alarm when installation mistake and provide the according solution .
⭐ Automatic adjust the system gain to avoid the repeater self-excitation .
⭐ Initiative reminding when the device was damaged .
⭐ Supports 10MHz from 0.2 to 10MHz bandwidth adjusted .
Technical Specifications
Digital Selected Band 2100MHz specially for mobile provider need.
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
1920-1980MHz |
|
Downlink |
2110-2170MHz |
|
|
Frequency Bandwidth (Adjustable) |
10MHz from 0.2 to 10MHz bandwidth adjusted |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA (Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Certification: |
ISO, RoHS, CE, CCC |
|
Further detail pls click here for downloading the products specification:
WCDMA 2100MHz B07 Signal Repeater.pdf
Product Description
We will send the correct plug adapter which is suitable for you according with the shipping address.
Easy to Install In 6 steps!
[1] Install the outdoor antenna on the roof, Face to signal tower.
[2] Connects one end of 15 meters coaxial cable with outdoor antenna.
[3] The other end of 15 meters coaxial cable connects "BS" port.
[4] 5m Cable connect indoor antenna and "MS" port.
[5] Find an appropriate position to place the inside antenna.
[6] Power up and it is done. Cell phone signal would be full bars in moment.
We are manufacturer, and have our own factory.
FAQ:
Q1: Do you have CE or any other certification?
A: Yes,we CE, , ROHS and FCC certification,etc.
Q2: Can you give me a discount?
A:Please discuss with our sales.
Q3: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.
Q4: How long is warranty period?
A: The warranty is 12 months. And we offer 7*24 technical support .
Q5: how many square meters can be covered?
A: For different models, the covered square meters are different.
Q6: Can I use your device in suburbs or remote areas?
Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
Please feel free to contact us if there are any other questions.
