Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS,CCC,TUV,BV, ISO
Model Number: AS-009-CDW
Document: 850-1800-2100MHz.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+315---330+kit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit),
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
850MHz Range: |
824-849MHz/ 869-894MHz |
1800MHz Range: |
1710-1785MHz/1805-1880MHz |
2100MHz Range: |
1920-1980MHz/2110-2170MHz |
Device Gain: |
65dB |
Device Output Power: |
17±2dBm |
Device RF Connect Type: |
N/Female Connector |
Device Power Supply: |
AC 220V/ DC5V/2A Power Adapter |
Certification:: |
ISO, RoHS, CE, CCC |
850MHz Range: |
824-849MHz/ 869-894MHz |
1800MHz Range: |
1710-1785MHz/1805-1880MHz |
2100MHz Range: |
1920-1980MHz/2110-2170MHz |
Device Gain: |
65dB |
Device Output Power: |
17±2dBm |
Device RF Connect Type: |
N/Female Connector |
Device Power Supply: |
AC 220V/ DC5V/2A Power Adapter |
Certification:: |
ISO, RoHS, CE, CCC |

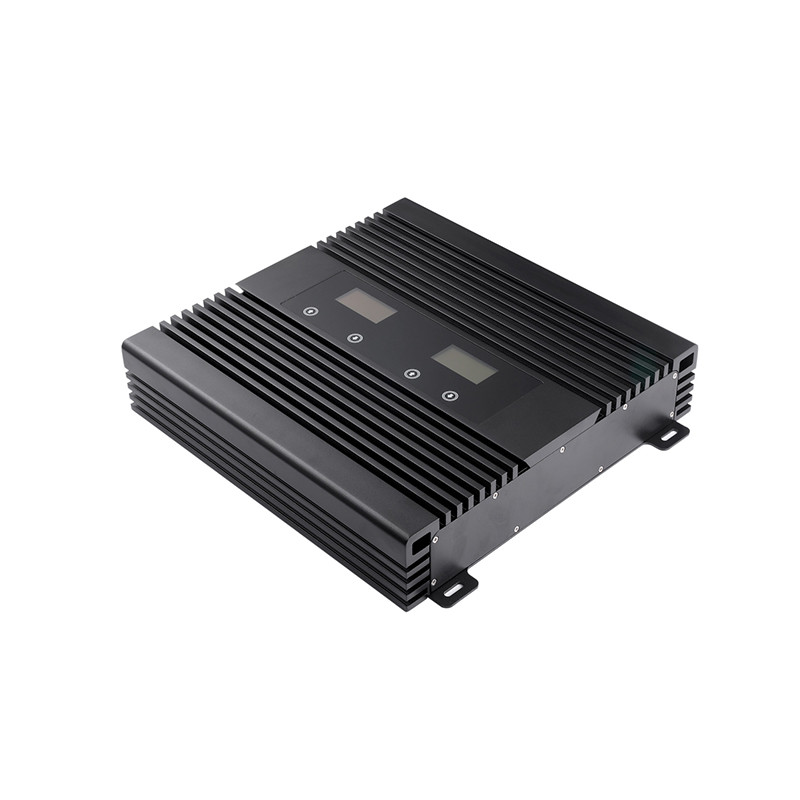

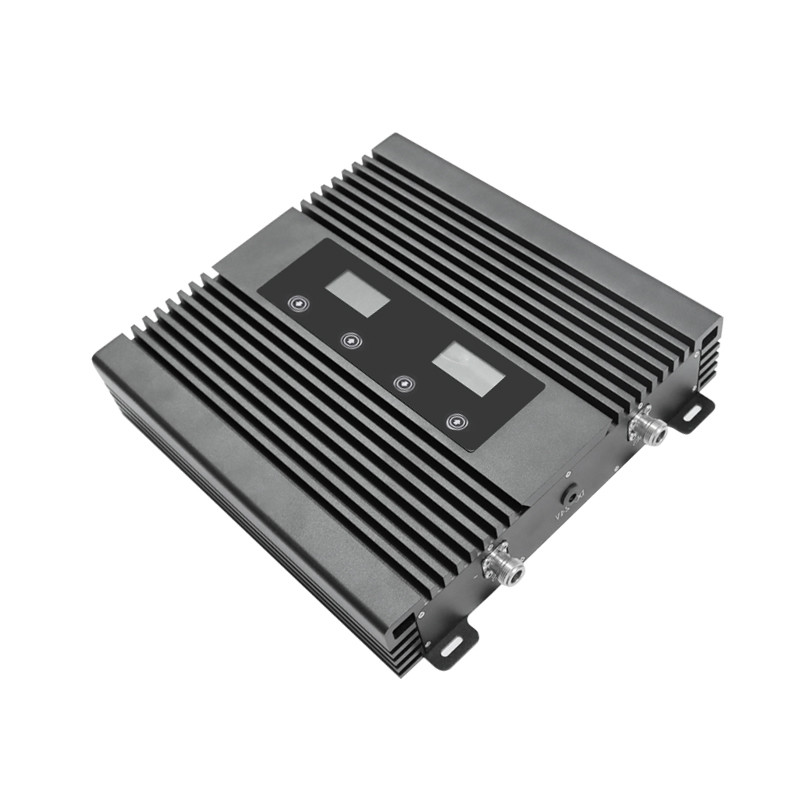

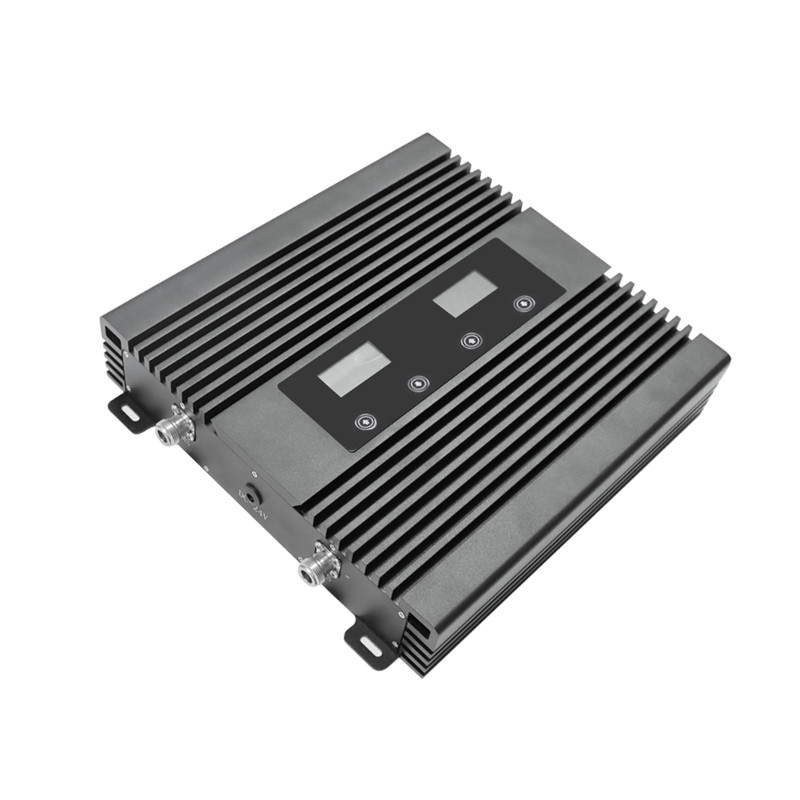

65dB Cell Phone Signal Amplifier Tri Band 850MHz 1800MHz 2100MHz
2G 3G 4G Tri band Repeater 850/1800/2100MHz cellular signal repeater amplifier
The Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Specification:
Frequency |
Uplink |
Downlink |
|||
CDMA 850MHz |
824-849MHz |
869-894MHz |
|||
DCS 1800MHz |
1710-1785MHz |
1805-1880MHz |
|||
WCDMA 2100MHz |
1920-1980MHz |
2110-2170MHz |
|||
Max. Gain |
65dB±2dB |
65dB±2dB |
|||
Max. Output Power |
17dB±2dB |
17dB±2dB |
|||
Bandwidth |
25MHz&75MHz&60MHz |
||||
Ripple in Band |
≤ 8dB |
||||
Noise Figure |
≤ 6dB |
||||
VSWR |
≤ 2.0 |
||||
Spurious Emission |
9KHz~1GHz |
≤ -36dBm |
|||
1~12.75GHz |
≤ -30dBm |
||||
Time Delay |
≤ 1.5 μs |
||||
MTBF |
> 50000 hours |
||||
Impedance |
50 ohm |
||||
Power Supply |
AC 90-240V,DC 5V/6A |
||||
Power LCD |
Power indicator |
||||
Alarm LCD |
Guide |
Done |
|||
Detection |
Done |
||||
Mechanical Specification |
|||||
RF Connector |
N-F |
||||
Cooling |
Heatsink Convection cooling |
||||
Humidity |
< 90% |
||||
Operating Temperature |
-10°C ~ +55°C |
||||
Environment Conditions |
IP40 |
||||
Trademark |
ATNJ |
Further detail pls click here for downloading the products specification:
Features:
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption,
3. easy installation, great cover.
4. Expansion and extending of the signal of base station.
5. Optimization of the quality of the signal and source
6. Cover about 500~3000m² without block or obstruct.
7. Support any cellular devices (voice & data )
8. Wide band signal booster, or customize selective band booster.
Indoor Single Band Signal Repeater (Signal Booster) series is an ideal solution for one wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
Do not dismantle machine, maintain or displace accessories by yourself, because in this way, the equipment may be damaged or even get an electric shock.
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. Can this mobile signal repeater create a signal where there is no cell signal before?
The mobile signal repeater cannot produce a signal, only amplify a weak one.
5. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
