Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-800/900/2600/H
Document: 800+900+2600 A013 Signal Re...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+315---330+kit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit),
Delivery Time: 3 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
800MHz Frequency Range: |
832-862MHz / 791-821MHz |
900MHz Frequency Range: |
890-915MHz / 935-960MHz |
2600MHz Frequency Range: |
2500-2570MHz / 2620-2690MHz |
Color: |
Black |
Warranty: |
3 Years |
Products Type: |
Repeater 4g Phone Signal Booster, 4g |
800MHz Frequency Range: |
832-862MHz / 791-821MHz |
900MHz Frequency Range: |
890-915MHz / 935-960MHz |
2600MHz Frequency Range: |
2500-2570MHz / 2620-2690MHz |
Color: |
Black |
Warranty: |
3 Years |
Products Type: |
Repeater 4g Phone Signal Booster, 4g |

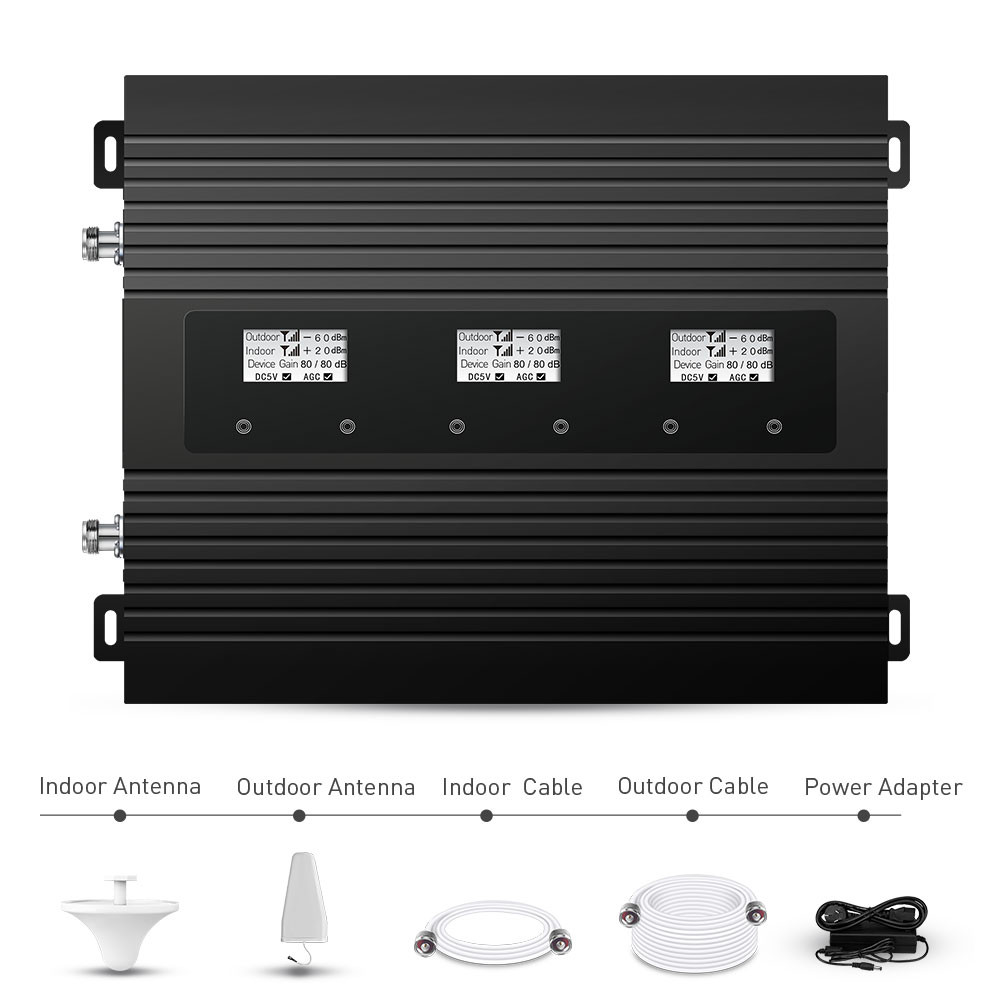

800MHz 900MHz 2600MHz Mobile Tri Band Repeater 80dB Gain Booster
Tri Band Repeater 800 900 2600 Cellular Signal Booster 2G 3G 4G 80dB Gain Signal Amplifier
Selling Point
1. Smart LCD : Show the real-time signal strength.
2. Sleeping Mode : When no user calls, the device works in Sleeping mode, so as to achieve the purpose of energy saving.
3. ALC (Automatic Level Control) : Automatically adjust the output gain down to optimal figure while the output gain is above the optimal figure by the ALC circuit, this can greatly optimize the calling and data transfer quality.
4. AGC (Automatic Gain Control) : When the downlink output signal is too strong or self-oscillated, booster can automatically reduce the gain and reduce the interference signal.
5. MGC (Manual Gain Control) : In order to install the booster conveniently, all frequency band of the booster have the Gain attenuation adjustment function, the adjustment scope is 0-27dB.
Technical Specifications:
| Specifications | Parameters | |
| Frequency Range (Customers to Choose) | Uplink | 832-862MHz, 890-915MHz, 2500-2570MHz |
| Downlink | 791-821MHz, 935-960MHz, 2620-2690MHz | |
| Frequency Bandwidth (3dB Bandwidth) | 30MHz, 25MHz, 70MHz | |
| Gain | 80dB | |
| Automatic gain control (Step Attenuation) | 31dB @ 1dB/ Step | |
| Auto Gain Control | 20dB Min. | |
| Output Power(Customers to Choose) | 27dBm | |
| Spurious Emission | ≤ -15dBm/30kHz | |
| 9kHz~1GHz: ≤ -36dBm/30kHz | ||
| 1GHz~12.75GHz: ≤ -30dBm/30kHz | ||
| Inter-Modulation Attenuation ACPR | ≤ -40dBc / 30kHz (measured under rated output power) | |
| In-band Ripple | ≤ 5dB | |
| VSWR | <=2 | |
| I/O Impedance | 50 Ω | |
| Noise Figure | ≤ 5dB | |
| System Delay | ≤ 5μs | |
| RF Connector(Customers to Choose) | N -Type(Female) | |
| Operating Temperature | Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C | |
| Power Supply | AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) | |
| Weight | ≤8 kg(Net) | |
| Alarm Monitoring System | Alarm for uplink self-oscillation | |
| Indication LED | Power supply | |
Further detail pls click here for downloading the products specification:
800+900+2600 A013 Signal Repeater.pdf

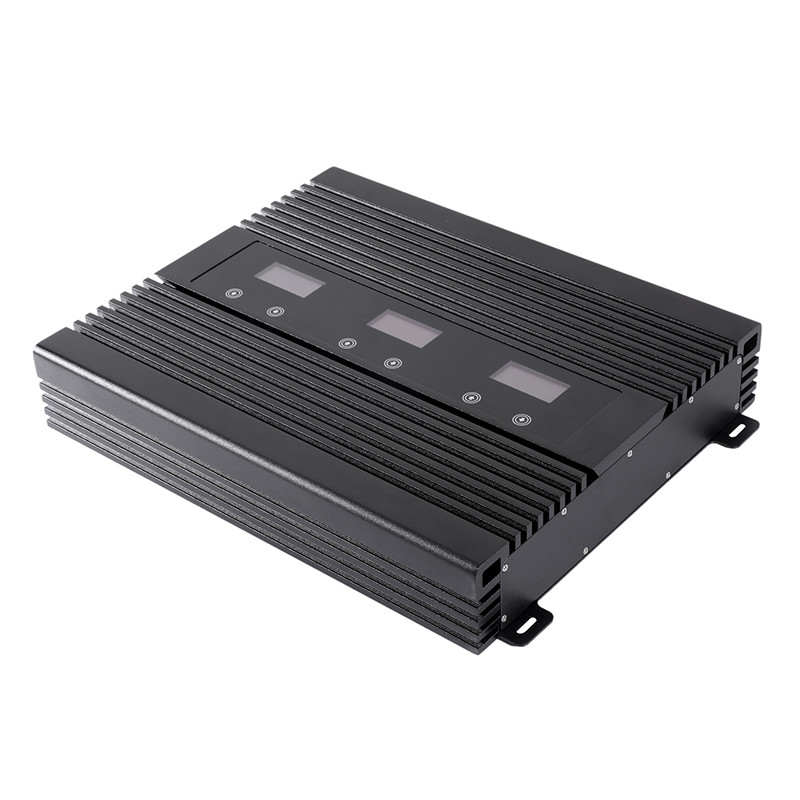

Product Description
Model No : AS-800/900/2600/H
With ALC AGC Function
Can control gain automatically. Avoid base station interference
Frequency: UL : 832 - 862MHz / 890 - 915MHz / 2500 - 2570MHz
DL : 791 - 821MHz / 935 - 960MHz / 2620 - 2690MHz
Gain : 80dB
Power Supply : AC110V～220V; DC+5V/2A
Connector Type : N - female connector
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
After installed booster signal not be very good, indoor signal coverage very small.
Solution 1: Adjust outdoor antenna's location and direction.
Solution 2: Check whether cable connected well.
Solution 3: Put more higher receiving antenna's position, which can received more good signal.
Solution 4: Change another bigger power booster.
Solution 5: Change another high gain receiving antenna.
How does it work?
1. RECEIVES SIGNAL
The powerful antenna reaches out to access a good signal, and delivers it to the booster.
2. BOOSTS SIGNAL
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3. BROADCASTS SIGNAL
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Warranty
● Please note that we always check and test the product twice before shipping and pack them well as far as possibel.If the product is broken at receiving,please contact us,we would resend you a new one.
● Three years gaurantee period for our booster,it is ioly 3 months for thr accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. How about gain and output power of your device?
Different models, gain and output power are different,for more details, please contact us.
5. Can I use your device in suburbs or remote areas?
Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
