Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS,CCC,TUV,BV, ISO
Model Number: AS-G
Document: Single band GSM 900MHz RF R...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+40---49+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Frequency Range: |
890-915MHz/935-960MHz |
Repeater Gain: |
70dB,UL Gp≥68 DL Gp≥70, Uplink Gp≥68dB Downlink Gp≥68dB, |
Output Power: |
17-20dBm |
Color For Choice: |
White,Blue,Customized |
RF Connect Type: |
SMA/Female Connector |
Trademark: |
ATNJ |
Warranty: |
3 Years |
Products Type:: |
Signal Repeater, Gsm Repeater In Pakistan |
Frequency Range: |
890-915MHz/935-960MHz |
Repeater Gain: |
70dB,UL Gp≥68 DL Gp≥70, Uplink Gp≥68dB Downlink Gp≥68dB, |
Output Power: |
17-20dBm |
Color For Choice: |
White,Blue,Customized |
RF Connect Type: |
SMA/Female Connector |
Trademark: |
ATNJ |
Warranty: |
3 Years |
Products Type:: |
Signal Repeater, Gsm Repeater In Pakistan |

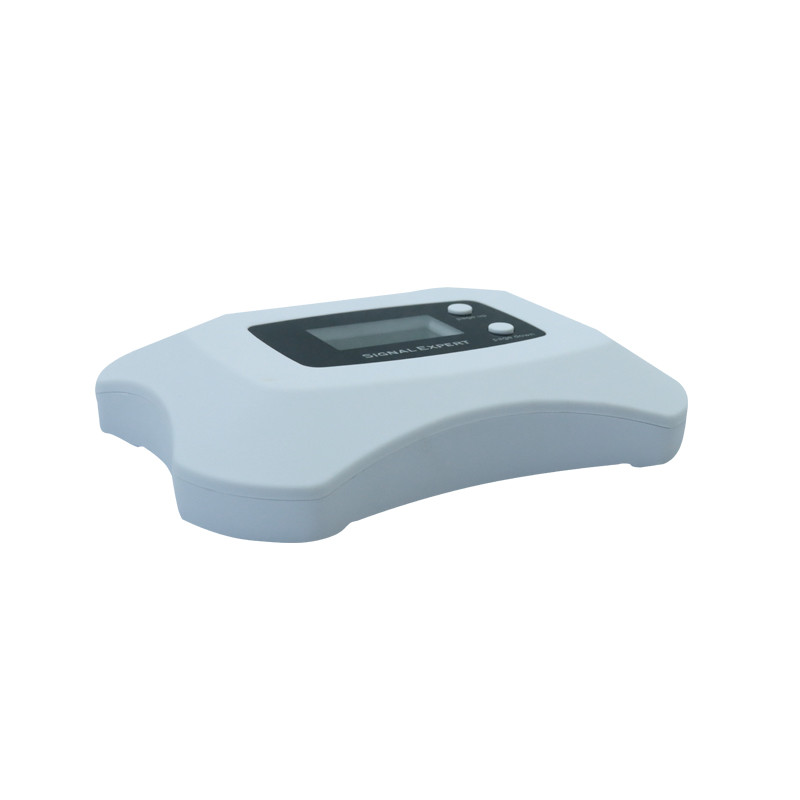

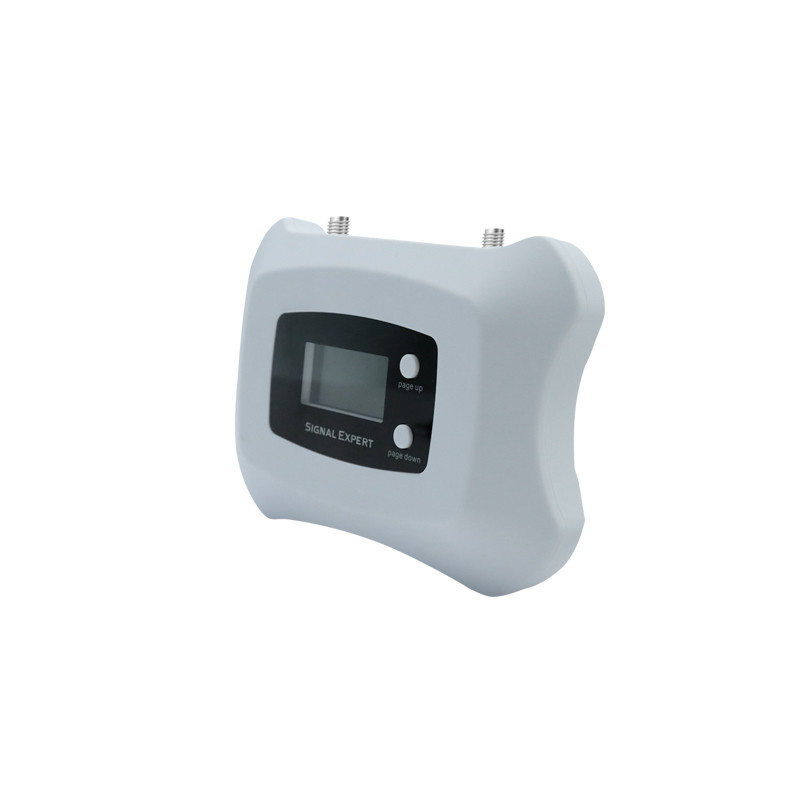

Band 8 900MHz Mobile Signal Booster Amplifier Cell Signal Antenna
Cell Phone Booster Band8 900MHz Mobile Signal Booster Amplifier Cell Signal Antenna
Model No :AS-G
With ALC AGC Function
Can control gain automatically. Avoid base station interference
(Band 8) 900MHz -- Uplink frequency: 890-915MHz/Downlink frequency : 935-960MHz
Network support : 2G, Calling
Gain :70±2dB
Power Supply :AC110V~220V;DC+5V/2A
Connector Type: SMA-female connector.
Technical Specifications
Specifications |
Parameters |
|
Frequency Range (Customers to Choose) |
Uplink |
890-915MHz |
Downlink |
935-960MHz |
|
Frequency Bandwidth |
25MHz |
|
Gain |
70dB |
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
Auto Gain Control |
20dB Min. |
|
Output Power(Customers to Choose) |
20dBm |
|
Spurious Emission |
≤ -15dBm/30kHz |
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
In-band Ripple |
≤ 3dB |
|
VSWR |
<=2 |
|
I/O Impedance |
50 Ω |
|
Noise Figure |
≤ 5dB |
|
System Delay |
≤ 5μs |
|
RF Connector(Customers to Choose) |
SMA (Female) |
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
Dimensions |
165*130*40 (mm) |
|
Origin |
Shenzhen |
Further detail pls click here for downloading the products specification:
Single band GSM 900MHz RF Repeater.pdf
Product Description
We will send the correct plug adapter which is suitable for you according with the shipping address.
Easy to Install In 6 steps!
[1] Install the outdoor antenna on the roof, Face to signal tower.
[2] Connects one end of 15 meters coaxial cable with outdoor antenna.

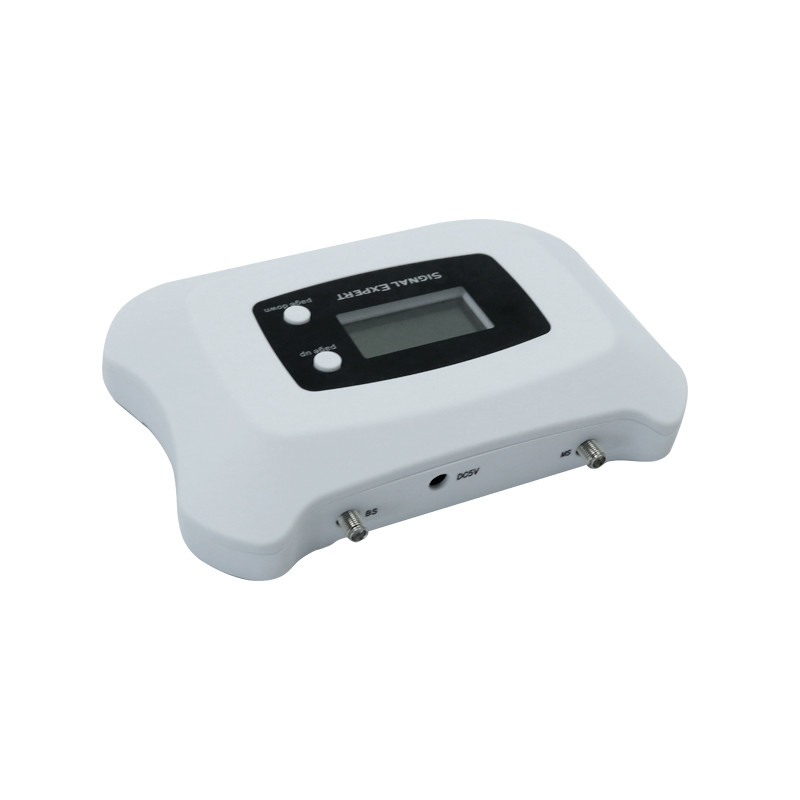

[3] The other end of 15 meters coaxial cable connects "BS" port.
[4] 5m Cable connect indoor antenna and "MS" port.
[5] Find an appropriate position to place the inside antenna.
[6] Power up and it is done. Cell phone signal would be full bars in moment.
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. What is our Certificates ?
We have CE, ROHS, CCC certificates .
Please feel free to contact us if any other questions.
