Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: JS-DB850/1700
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+100---120+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
Delivery Time: 1-3 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
850MHz Frequency Range: |
824-849MHz / 869-894MHz |
1700MHz Frequency Range: |
1710-1755MHz / 2110-2155MHz |
Color: |
Gold And Black And White And Customized |
RF Connect Type: |
N/Female |
Warranty: |
3 Years |
Products Type: |
4G Signal Booster, Amplificador De Internet |
850MHz Frequency Range: |
824-849MHz / 869-894MHz |
1700MHz Frequency Range: |
1710-1755MHz / 2110-2155MHz |
Color: |
Gold And Black And White And Customized |
RF Connect Type: |
N/Female |
Warranty: |
3 Years |
Products Type: |
4G Signal Booster, Amplificador De Internet |

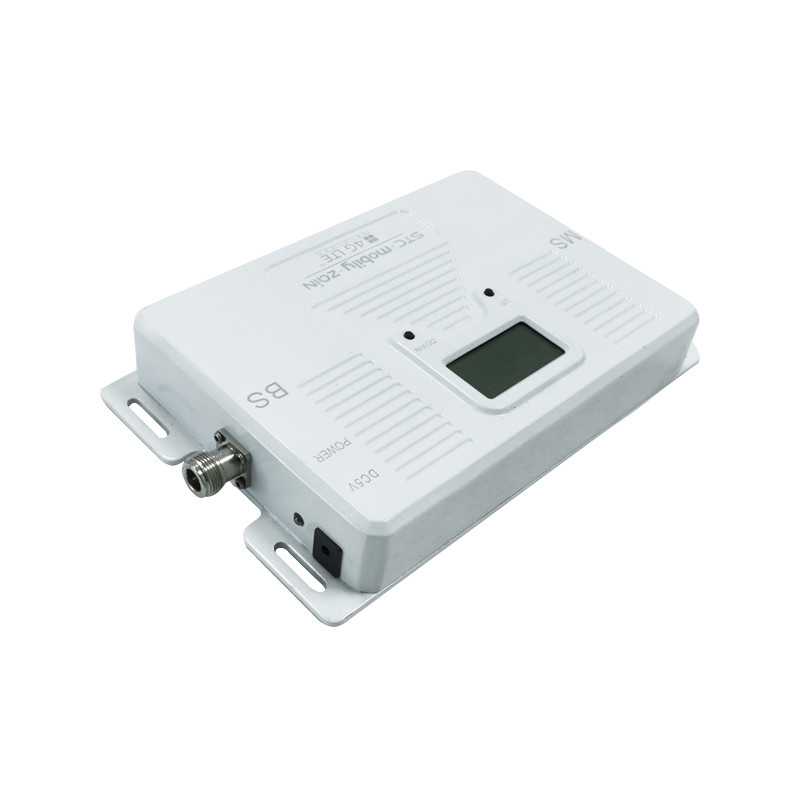

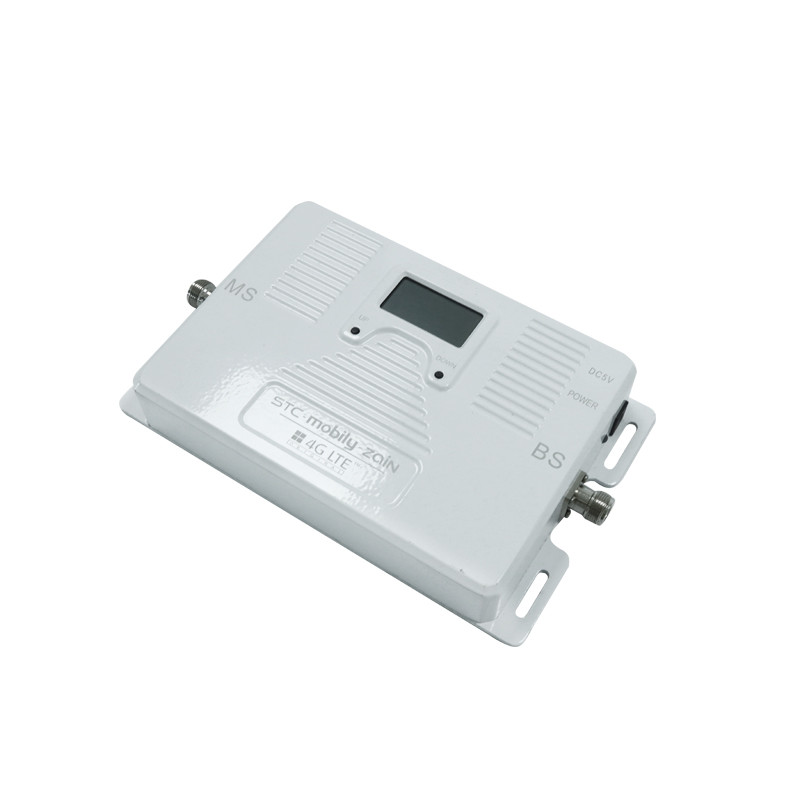

Dual Band 70dB 4G Signal Repeater Mobile Phone Network Extender
850/1700MHz 2G 3G 4G Dual Band Signal Repeater Mobile Phone Signal Extender Booster Amplify
General
The 850/1700MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Please Check Frequency before Buying How to check?
- Android mobile phone
Download App called < Network Cell Info Lite >
The App will tell the number of LTE band
- Iphone
Dial *3001#12345#*
Clink Cell Serving Info
Check Freq Band Indicator, the number is LTE Band
Selling Point
1. Intelligent to guide the installation with LCD
2. Real time display the signal strength.
3. Automatic dormancy when no user make the calling
4. Automatic alarm when installation mistake and provide the according solution
5. Automatic adjust the system gain to avoid the repeater self-excitation
6. Initiative reminding when the device was damaged.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
824-849MHz, 1710-1755MHz |
|
Downlink |
869-894MHz, 2110-2155MHz |
|
|
Frequency Bandwidth |
25MHz&45MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
850+1700MHz A032 mobile signal repeater.pdf
How does it work?
1. RECEIVES SIGNAL
The powerful antenna reaches out to access a good signal, and delivers it to the booster.
2. BOOSTS SIGNAL
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3. BROADCASTS SIGNAL
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Packaging Including:
1. Dual Band Booster
2. 20 meters cable
3. 5 meters cable
4. Indoor Ceiling antenna
5. Outdoor Log-periodic antenna
6. Power adapter

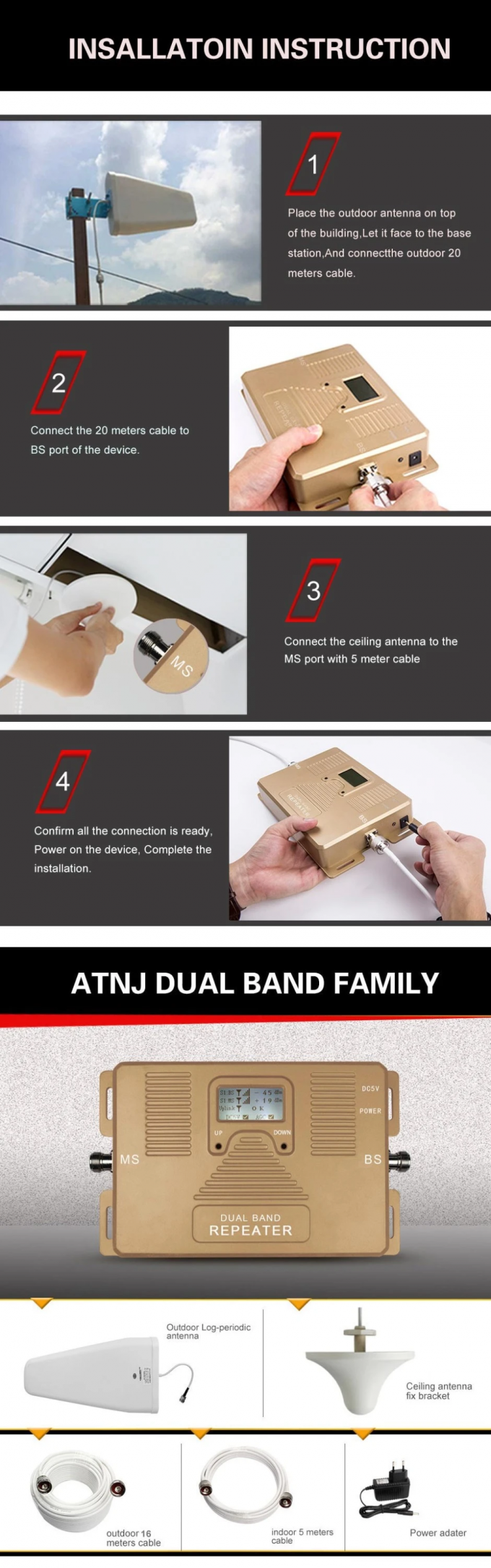

Installation Approaches
1.Fix up outdoor antenna reception on housetop and point to signal tower;
2.Connect outdoor antenna to “outdoor” port in repeater nachine through cable;
3.Connect indoor antenna(s) to “indoor” port in repeater machinethrough cable also;
4.Plug power adaptor into AC power socket and finish installation.
FAQ:
1. Q: Why choose us for cooperation?
A: We have the professional engineer to develop and make them suit for all over the world.we also will deal with all the problem when you have problem and reply to you at any time.
2. Q: Can this mobile signal repeater create a signal where there is no cell signal before?
A: The mobile signal repeater cannot produce a signal, only amplify a weak one.
3. Q: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.
4. Q: What's your device lifespan?
A: Normally our device can be used 5-10 years.
5. Q: How many square meters can be covered?
A: For different models, the covered square meters are different.
6. Q: Can I use your device in suburbs or remote areas?
A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
