Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-DB900/1800/2100
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+350---380+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
900MHz Range: |
890-915MHz/935-960MHz |
1800MHz Range: |
1710-1785MHz/1805-1880MHz |
2100MHz Range: |
1920-1980MHz/2110-2170MHz |
Gain: |
80dB |
Output Power: |
27dBm |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
RF Connect Type: |
N/Female Connector |
Products Type: |
Signal Amplifier |
900MHz Range: |
890-915MHz/935-960MHz |
1800MHz Range: |
1710-1785MHz/1805-1880MHz |
2100MHz Range: |
1920-1980MHz/2110-2170MHz |
Gain: |
80dB |
Output Power: |
27dBm |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
RF Connect Type: |
N/Female Connector |
Products Type: |
Signal Amplifier |

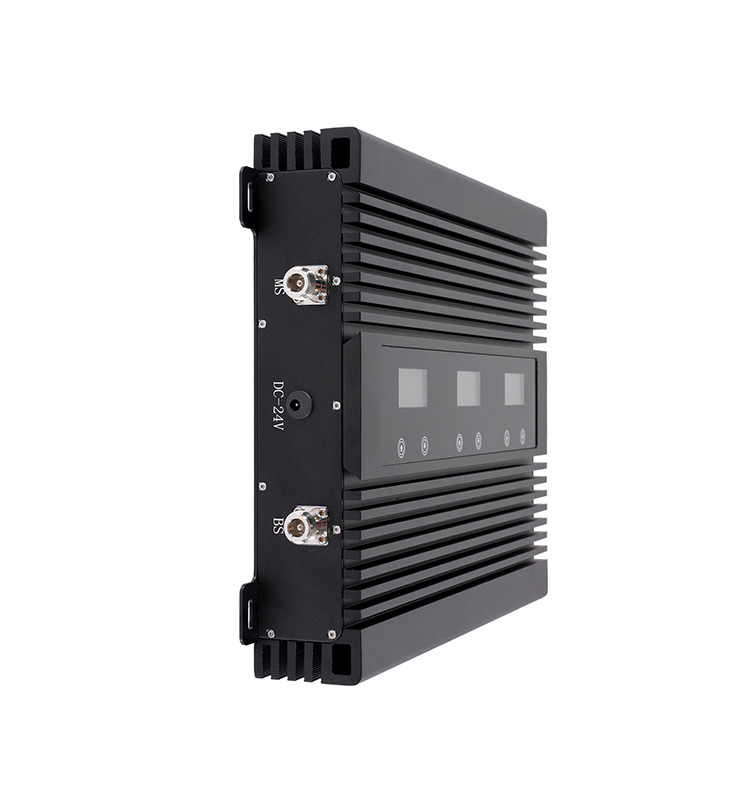

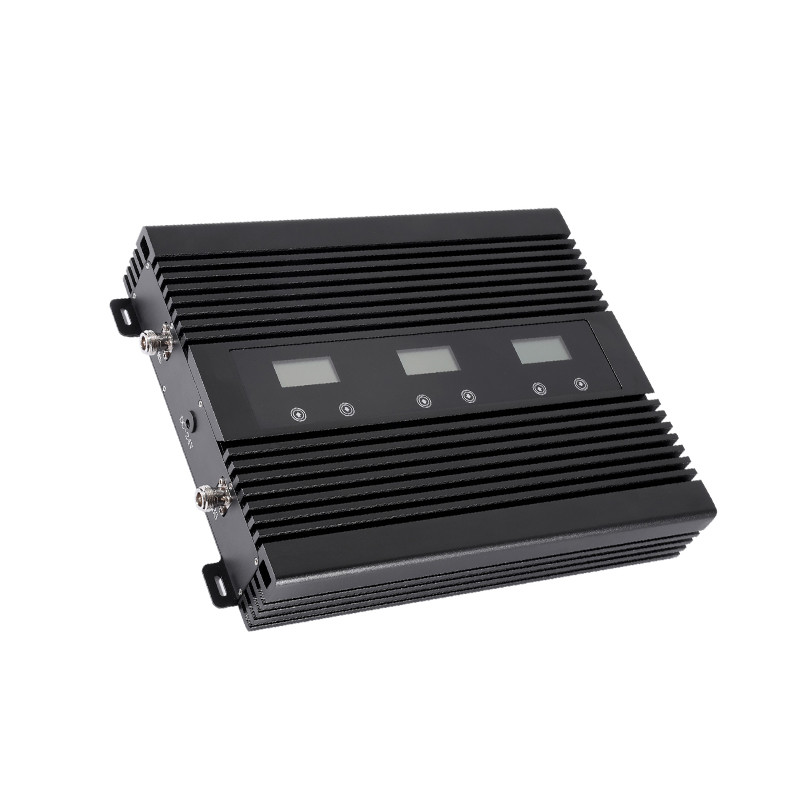

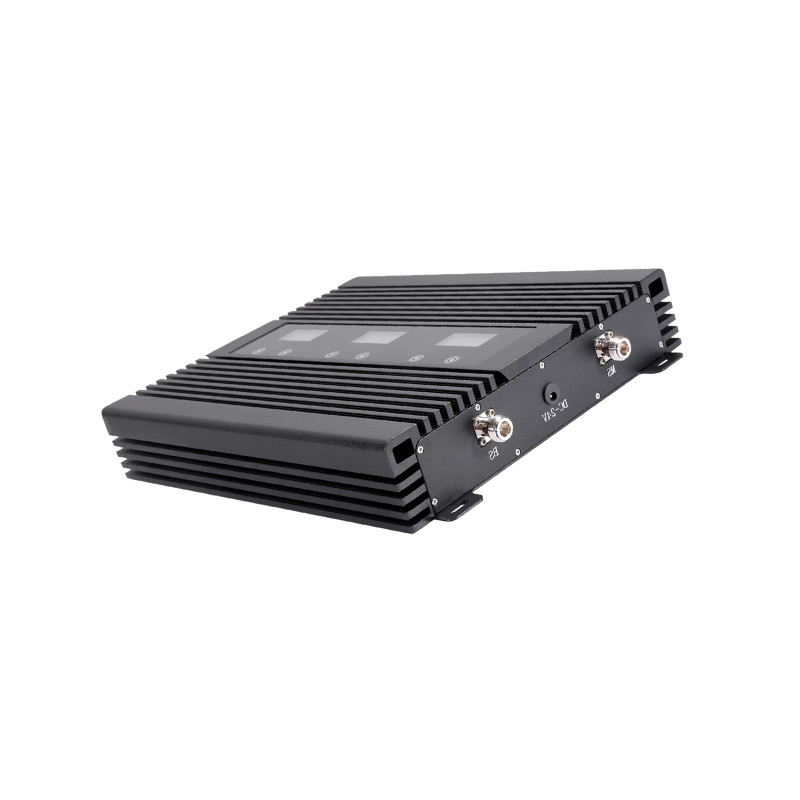

80dB Wide Range Signal Booster Multi band 900MHz 1800MHz 2100MHz
Mobile Signal Amplifier Repeater Booster Multi-band 900/1800/2100MHz
Signal Booster Description:
Indoor Single Band Signal Repeater (Signal Booster) series is an ideal solution for one wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
Do not dismantle machine, maintain or displace accessories by yourself, because in this way, the equipment may be damaged or even get an electric shock.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
890-915MHz,1710-1785MHz,1920-1980MHz |
|
Downlink |
935-960MHz, 1805-1880MHz,2110-2170MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
25MHz&75MHz&60MHz |
|
|
Gain |
80dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
27dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Type: |
Signal Repeater |
|
Further detail pls click here for downloading the products specification:
900+1800+2100 A013 Signal Repeater.pdf
Product Description
OUR Cellphone SIGNAL BOOSTER
1. Smart LCD, show the real-time signal strength. 2. Sleeping Mode: When no user calls, the device works in Sleeping mode, so as to achieve the purpose of energy saving. 3. ALC(Automatic Level Control): Automatically adjust the output gain down to optimal figure while the output gain is above the optimal figure by the ALC circuit, this can greatly optimize the calling and data transfer quality. 4.AGC (Automatic Gain Control) : When the downlink output signal is too strong or self-oscillated, booster can automatically reduce the gain and reduce the interference signal. 5.MGC (Manual Gain Control): In order to install the booster conveniently, all frequency band of the booster have the Gain attenuation adjustment function, the adjustment scope is 0-27dB.
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label? We are the factory, with good trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
● If you are satisfied with our service and product,we would be very appreciated that you put us five stars and positive review. You could also recommend it to people who needs it.Thank you very much.
