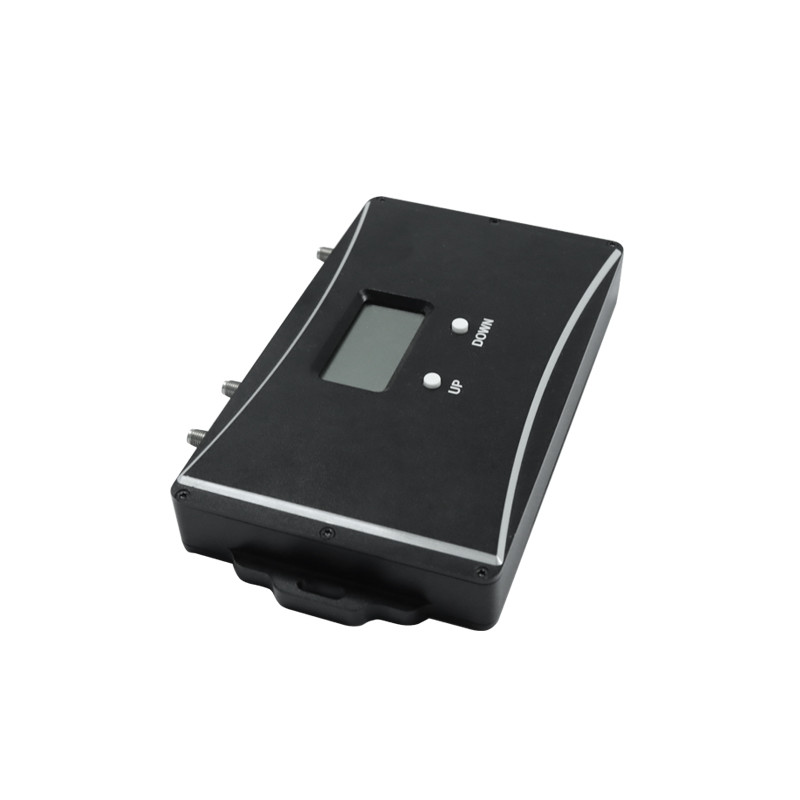

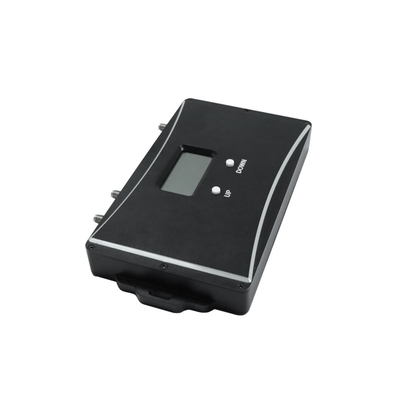

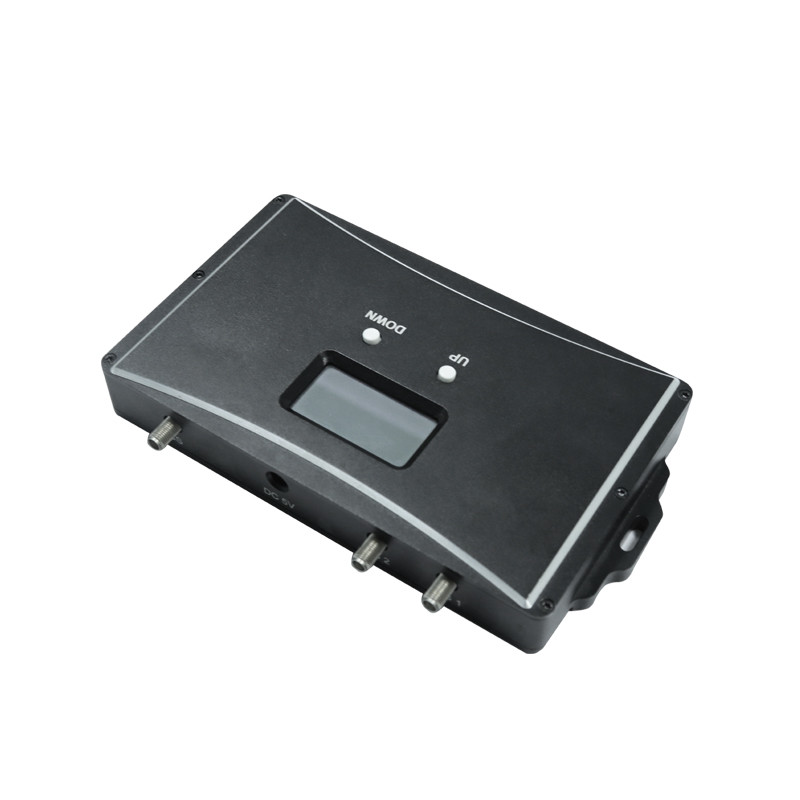

2G 3G 4G Mobile Signal Boosters 850MHz 2100MHz Dual Band Repeater

2G 3G 4G Mobile Signal Boosters 850MHz 2100MHz Dual Band Repeater

Brand Name: ATNJ
Model Number: JS-850/2100
MOQ: 1
Price: USD+75---85+kit
Packaging Details: Standard neutral packing,52x24x16cm(1 kit), 4kits as 1 carton(54x49x33cm)
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
850MHz Frequency Range:
824-849MHz / 869-894MHz
2100MHz Frequency Range:
1920-1980MHz / 2110-2170MHz
Gain:
70dB
Output Power:
20±3dBm
Color:
Black & Customized
Products Type:
Cdma, Amplificateur De Signal
Supply Ability:
1000+unit+per day.
High Light:

850MHz Mobile Signal Boosters

,

2100MHz Mobile Signal Boosters

,

850MHz Dual Band Repeater

Product Description

2G 3G 4G Mobile Signal Boosters 850MHz 2100MHz Dual Band Repeater



Mobile Signal Booster 2G 3G 4G 850 2100MHz Dual Band Repeater Amplifier



Features:



1. Cost-effective solution for weak signal zones, reduce drop/off calls.



2. Compact size, low power consumption, easy installation, great cover.Expansion and extension of the signal of the base station. Optimization of the quality of the signal and source



3. High linear design, ALC function design, low interference to BTS.



4. Support any cellular devices (voice & data & video)



5. Wideband signal booster, or customize selective band booster.



6. Support System CDMA800, GSM, DCS, PCS, WCDMA, LTE 4G, etc



Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

824-849MHz, 1920-1980MHz

Downlink

869-894MHz, 2110-2170MHz

Frequency Bandwidth (3dB Bandwidth)

25MHz&60MHz

Gain

70dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

20dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

SMA(Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Dimensions

165*130*40 (mm)

Weight

≤0.8 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

Indication LED

Power supply

Further detail pls click here for downloading the products specification:

850+2100MHz AT005 mobile signal booster.pdf



Product Description



With ALC AGC Function

Can control gain automatically. Avoid base station interference



Network support : CDMA 2/3G + WCDMA 3/4G



(Band 5) 850MHz -- Uplink frequency : 824-849MHz / Downlink frequency : 869-894MHz
(Band 1) 2100MHz -- Uplink frequency : 1920-1980MHz / Downlink frequency : 2110-2170MHz


Gain : 70dB
Connector Type : SMA-female connector



Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 0Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 1Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 2Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 3Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 4Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 5Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 6Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 7





Installation:



The booster is fixed onto the wall through expansion bolts.



A. Drill holes on the targeted place and install expansion bolts.



B. Align the holes with the expansion bolts, place flat washers, spring washers, and nuts in turn, and tighten the nuts to fasten the installing support.



C. Place the booster on and fasten it.



D. Connect cables and power cables to the booster respectively.



E. After installing the booster as described above, power on the booster to check the operation status.





Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 8





Accessories



a. One dual band signal booster;



b. Two indoor antenna;



c. One outdoor antenna;



d. 20meter cable and 5meter cable;



e. User manual;



f. Power adapter.





Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 9





The repeater makes the signal stronger in places with poor signal coverage such as:



1) Underground areas: basements, parking lots, tunnels;



2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;



3) Places distant from the BTS like private houses.







Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 10

Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 11Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 12









FAQ:


(1) Frequency
We can customize Single/Double/Triple/Quand/Penta Band for cellphone signal like 2G/3G/4G(GSM/CDMA/DCS/PCS/WCDMA/LTE, etc,)



(2) Payment Method
T/T, Western Union, Paypal, and Credit Card are available, but we suggest paying by Alibaba Trade Assurance, the most favor, and security method.
* Other methods please contact us with more details.



(3) What should I do if I don't know about frequency in my country?

Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.



(4) Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
