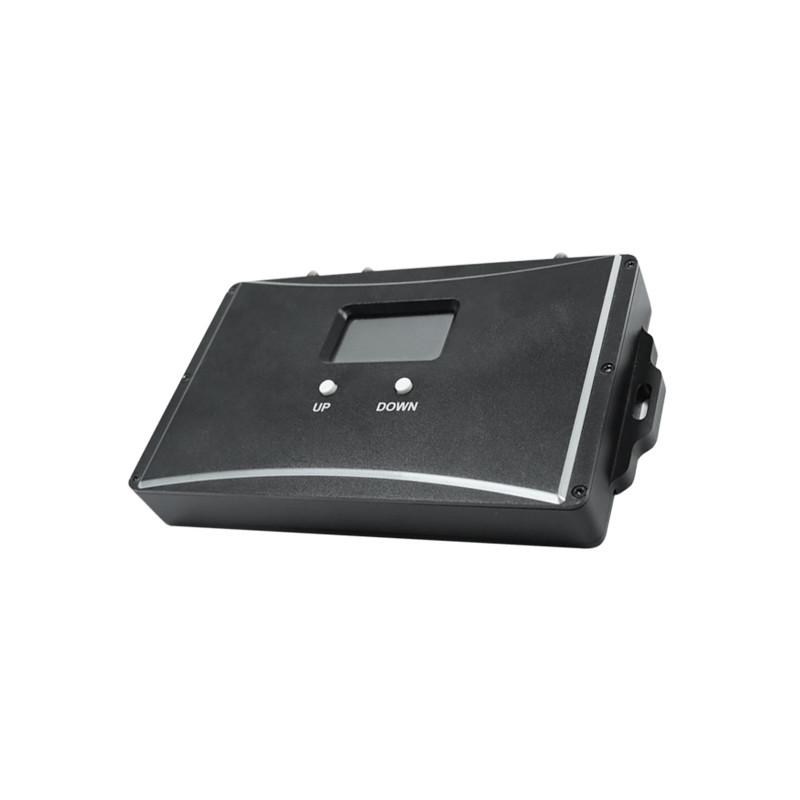

850MHz 1800MHz Mobile Signal Amplifier Dual Band Network Repeater

850MHz 1800MHz Mobile Signal Amplifier Dual Band Network Repeater

Brand Name: ATNJ
Model Number: JS-850/1800
MOQ: 5Pcs
Price: USD+75---85+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
850MHz Frequency Range:
1710-1785MHz / 1805-1880MHz
Products Type:
Signal Booster 4G
Gain:
70dB
Output Power:
≥20dBm
Color:
Black Or Customized
Weight:
4kg
Supply Ability:
1000+unit+per day.
Highlight:

1800MHz Mobile Signal Amplifier

,

850MHz Mobile Signal Amplifier

,

1800MHz Mobile Network Amplifier

Product Description

850MHz 1800MHz Mobile Signal Amplifier Dual Band Network Repeater



Dual Band Mobile Signal Booster 2G 3G 4G 850 / 1800MHz Repeater Network Amplifier





Selling Point



1. Intelligent to guide the installation with LCD


2. Real time display the signal strength.


3. Automatic dormancy when no user make the calling


4. Automatic alarm when installation mistake and provide the according solution


5. Automatic adjust the system gain to avoid the repeater self-excitation


6. Initiative reminding when the device was damaged.





Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

824-849MHz,1710-1785MHz

Downlink

869-894MHz,1805-1880MHz

Frequency Bandwidth (3dB Bandwidth)

25MHz&75MHz

Gain

70dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

20dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

SMA(Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Dimensions

165*130*40 (mm)

Weight

≤0.8 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

Indication LED

Power supply

Further detail pls click here for downloading the products specification:

850+1800MHz AT005 mobile signal booster.pdf



Product Description



With ALC AGC Function

Can control gain automatically. Avoid base station interference

(Band 3) 1800MHz -- Uplink frequency : 1710 - 1785MHz / Downlink frequency : 1805 - 1880MHz
(Band 5) 850MHz -- Uplink frequency : 824 - 849MHz / Downlink frequency : 869 - 894MHz

Gain : 70±2dB
Power Supply : AC110V~220V;DC+5V/2A
Connector Type : SMA-female connector

Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 0Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 1Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 2Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 3Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 4Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 5Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 6Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 7





The booster is fixed onto the wall through expansion bolts.



A. Drill holes on the targeted place and install expansion bolts.



B. Align the holes with the expansion bolts, place flat washers, spring washers, and nuts in turn, and tighten the nuts to fasten the installing support.



C. Place the booster on and fasten it.



D. Connect cables and power cables to the booster respectively.



E. After installing the booster as described above, power on the booster to check the operation status.





Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 8

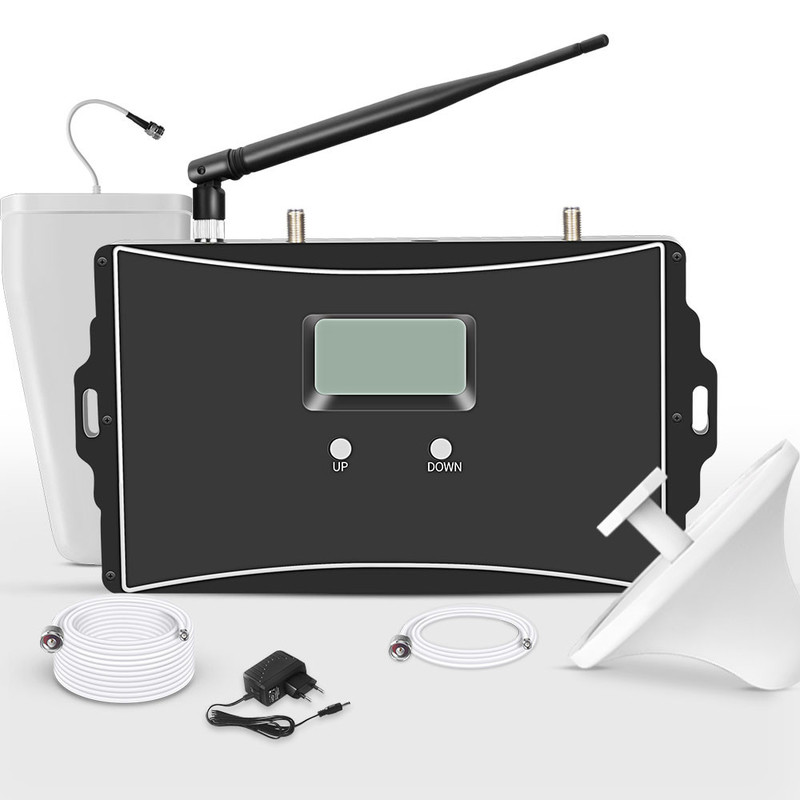

Accessories



a. One dual band signal booster;



b. Two indoor antenna;



c. One outdoor antenna;



d. 20meter cable and 5meter cable;



e. User manual;



f. Power adapter.





Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 9





The repeater makes the signal stronger in places with poor signal coverage such as:



1) Underground areas: basements, parking lots, tunnels;



2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;



3) Places distant from the BTS like private houses.







Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 10

Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 11Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 12







FAQ:

1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.



5. How many square meters can be covered?

For different models, the covered square meters are different.



6. How about gain and output power of your device?

Different models, gain and output power are different,for more details, please contact us.
