Home > products > Signal Booster Accessories > 698MHz 2700MHz Signal Booster Accessories RF 3 Way Power Splitter

698MHz 2700MHz Signal Booster Accessories RF 3 Way Power Splitter

Product Details

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS,CCC,TUV,BV, ISO

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD+4--7+unit

Packaging Details: Standard neutral packing,52x21x16cm(1kit),

Delivery Time: 3-5 work days

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 1000+unit+per day.

Get Best Price
Highlight:

2700MHz Signal Booster Accessories

,

300W 3 Way Power Splitter

,

ROHS RF Power Splitter

Model Number:
3-Way Splitter
Impedance:
50OHm
IM3:
-150dBC
Frequency:
698 - 2700MHz
Connector:
N / Female
PIM (IM3):
< -155dBc @ + 43dBm*2
Power Rating:
> 300W
Products Type:
Cellular Amplifier
Model Number:
3-Way Splitter
Impedance:
50OHm
IM3:
-150dBC
Frequency:
698 - 2700MHz
Connector:
N / Female
PIM (IM3):
< -155dBc @ + 43dBm*2
Power Rating:
> 300W
Products Type:
Cellular Amplifier

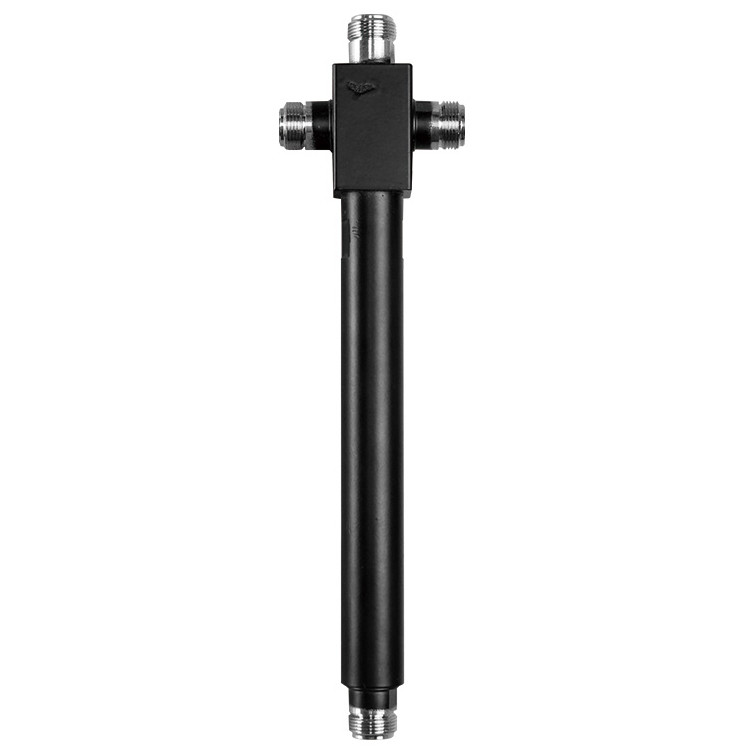

698MHz 2700MHz Signal Booster Accessories RF 3 Way Power Splitter



698MHz 2700MHz Signal Booster Accessories RF 3 Way Power Splitter



RF 3 way Power Splitter 698-2700MHz for 2G 3G 4G Mobile Phone Signal Repeater



  RF 3 way Power Splitter is an equal power-distribution device and low insertion loss BTS/IBS passive component. It can be applied to indoor or outdoor signal distribution system, featured as dividing one input signal into three signal outputs with the same amplitude.


Specification
Power Splitter, 698 - 2700MHz
Product Type
3 - way Splitter
Model Number
SP3 - 0727 - D500
Frequency Range(MHz)
698 – 2700MHz
Insertion Loss
< 5.2dB
Return Loss / VSWR
≤ 1.25
PIM(IM3)
≤ -155dBc @ + 43dBm*2
Power Handling
300W
Input Impendence
50Ω
Environmental Specifications
Applied Environment
Outdoor or Indoor , IP65
Relative Humidity
5 to 95%
Operating Temperature
- 25 to + 70℃
Protection Class
IP65
Mechanical Specifications
Connector Type
N - Female
Material
Cavity : Aluminum ; Connector : Copper
Processing
Silver plated inner conductor
Dimension
238x82x38mm
Net Weight
0.3Kg

Further detail pls click here for downloading the products specification:

ATNJ Mobile Signal Repeater.pdf



698MHz 2700MHz Signal Booster Accessories RF 3 Way Power Splitter 0

698MHz 2700MHz Signal Booster Accessories RF 3 Way Power Splitter 1698MHz 2700MHz Signal Booster Accessories RF 3 Way Power Splitter 2698MHz 2700MHz Signal Booster Accessories RF 3 Way Power Splitter 3698MHz 2700MHz Signal Booster Accessories RF 3 Way Power Splitter 4

FAQ :



Q1 : what's your company MOQ?
A1 : In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.



Q2 : What's your delivery time?
A2 : This please ask our stock in first, products can send out once receive your deposit.
If use customer brands, we will take a 3-5days to prepare materials and mass production.



Q3 : Can your company accept customize?
A3 : Welcome OEM & ODM.



Q4 : How do you solve after sale service?
A4 : This please ask us for technical support if you have workers know how to repair.
If do not have engineers, please send back the items, we can repair the items for you.



Q5 : Can you send a sample for us to develop?
A5 : Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order
