GSM Signal Booster
>
ATNJ dual-band Band20 Band8 800 900MHz LTE GSM Mobile Signal Booster 2G 4G Cell Phone Repeater

ATNJ dual-band Band20 Band8 800 900MHz LTE GSM Mobile Signal Booster 2G 4G Cell Phone Repeater

Brand Name: ATNJ
Model Number: AS-012-800/900
MOQ: 1
Price: USD+250---270+kit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit)
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
Band20 800MHz Range:
832-862MHz/791-821MHz
Band8 900MHz Range:
890-915MHz/935-960MHz
Gain:
80dB
Output Power:
27dBm
Color:
Black
Products Type:
Signal Amplifier
RF Connect Type:
SMA/Female
Power Supply:
AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A Power Adapter)
Shipping Way:
DHL, FedEx, UPS, Etc.
Application:
Indoor
Supply Ability:
1000+unit+per day.
High Light:

900MHz GSM Mobile Signal Booster

,

900MHz LTE Mobile Signal Booster

,

GSM Repeater 900mhz

Product Description

Signal Booster Description:



When the cellphone is connected to the external antenna and the booster, it will think that the cell tower is nearby. Data rates are improved, and dropped calls will be prevented. And best of all, the phone's battery life will be extended, because the phone is not using its full power to find signal. An antenna is mounted outside the vehicle and gets the signal from the network before it is blocked by glass and metal.



Brand: ATNJ

Frequency : LTE 800 / GSM 900

Up Link: 832-862MHz / 890-915MHz

Down Link: 791-821MHz / 935-960MHz

Gain:82dB

Output Power: 27dBm

Bandwidth:25M/75M/60M

Noise Figure:<=6

VSWR:<=3

Connector Type:N Female

LCD Display: Done

Sleeping Mode: Done

AGC Function (Automatical Gain Control): Done

800 900MHz LTE GSM Mobile Signal Booster 2G 4G Cell Phone Repeater



Dual Band LTE/GSM Mobile Signal Repeater Ampilifier 2G/4G Cell Phone Booster 800/900MHz





Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

832-862MHz,890-915MHz

Downlink

791-821MHz, 935-960MHz

Frequency Bandwidth (3dB Bandwidth)

30MHz&25MHz

Gain

80dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

27dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

N(Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A power adapter)

Dimensions

165*130*40 (mm)

Weight

≤0.8 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

Indication LED

Power supply

Further detail pls click here for downloading the products specification:

800+900 A012 Signal Repeater.pdf

Product Description

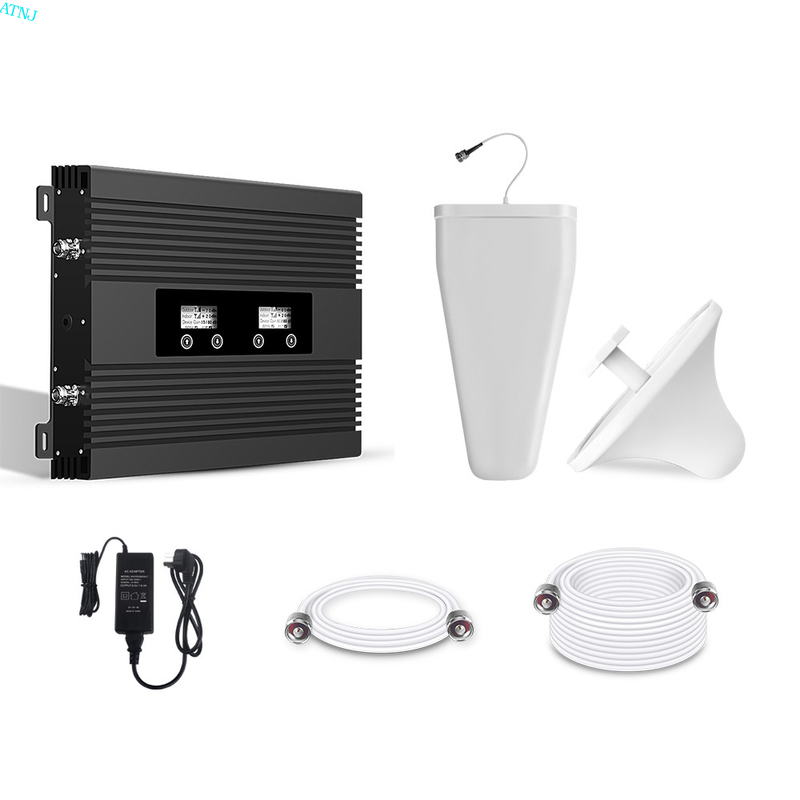

Packaging Including:

[1] Tri Band Booster Base Unit

[2] AC Power Cord

[3] Outdoor Panel Antenna

[4] Indoor Panel Antenna

[5] 35 Meters White Coax. Cable

ATNJ dual-band Band20 Band8 800 900MHz LTE GSM Mobile Signal Booster 2G 4G Cell Phone Repeater 0ATNJ dual-band Band20 Band8 800 900MHz LTE GSM Mobile Signal Booster 2G 4G Cell Phone Repeater 1ATNJ dual-band Band20 Band8 800 900MHz LTE GSM Mobile Signal Booster 2G 4G Cell Phone Repeater 2ATNJ dual-band Band20 Band8 800 900MHz LTE GSM Mobile Signal Booster 2G 4G Cell Phone Repeater 3ATNJ dual-band Band20 Band8 800 900MHz LTE GSM Mobile Signal Booster 2G 4G Cell Phone Repeater 4ATNJ dual-band Band20 Band8 800 900MHz LTE GSM Mobile Signal Booster 2G 4G Cell Phone Repeater 5ATNJ dual-band Band20 Band8 800 900MHz LTE GSM Mobile Signal Booster 2G 4G Cell Phone Repeater 6ATNJ dual-band Band20 Band8 800 900MHz LTE GSM Mobile Signal Booster 2G 4G Cell Phone Repeater 7ATNJ dual-band Band20 Band8 800 900MHz LTE GSM Mobile Signal Booster 2G 4G Cell Phone Repeater 8ATNJ dual-band Band20 Band8 800 900MHz LTE GSM Mobile Signal Booster 2G 4G Cell Phone Repeater 9

ATNJ dual-band Band20 Band8 800 900MHz LTE GSM Mobile Signal Booster 2G 4G Cell Phone Repeater 10

ATNJ dual-band Band20 Band8 800 900MHz LTE GSM Mobile Signal Booster 2G 4G Cell Phone Repeater 11ATNJ dual-band Band20 Band8 800 900MHz LTE GSM Mobile Signal Booster 2G 4G Cell Phone Repeater 12

ATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeaterATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeaterATNJ dual-band Band20 Band8 800 900MHz LTE GSM Mobile Signal Booster 2G 4G Cell Phone Repeater 15ATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeaterATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeater



We are manufacturer, and have our own factory.



Signal problem & installation technique supporting



1. If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.



2. If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.



3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.



4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.



FAQ:

1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3:  Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

5.
What are the benefits of using a mobile signal booster?

  • No more dropped calls and missed texts
  • Improved voice quality on calls
  • More reliable internet access without depending on WiFi
  • Faster data speeds for downloading and streaming
  • Longer mobile phone battery life
  • Wider coverage area inside your home or business
  • Peace of mind!
