Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-012-800/900
Document: 800+900 A012 Signal Repeate...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+250---270+kit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Band20 800MHz Range: |
832-862MHz/791-821MHz |
Band8 900MHz Range: |
890-915MHz/935-960MHz |
Gain: |
80dB |
Output Power: |
27dBm |
Color: |
Black |
Products Type: |
Signal Amplifier |
RF Connect Type: |
SMA/Female |
Power Supply: |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A Power Adapter) |
Shipping Way: |
DHL, FedEx, UPS, Etc. |
Application: |
Indoor |
Band20 800MHz Range: |
832-862MHz/791-821MHz |
Band8 900MHz Range: |
890-915MHz/935-960MHz |
Gain: |
80dB |
Output Power: |
27dBm |
Color: |
Black |
Products Type: |
Signal Amplifier |
RF Connect Type: |
SMA/Female |
Power Supply: |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A Power Adapter) |
Shipping Way: |
DHL, FedEx, UPS, Etc. |
Application: |
Indoor |
Signal Booster Description:
When the cellphone is connected to the external antenna and the booster, it will think that the cell tower is nearby. Data rates are improved, and dropped calls will be prevented. And best of all, the phone's battery life will be extended, because the phone is not using its full power to find signal. An antenna is mounted outside the vehicle and gets the signal from the network before it is blocked by glass and metal.
Brand: ATNJ
Frequency : LTE 800 / GSM 900
Up Link: 832-862MHz / 890-915MHz
Down Link: 791-821MHz / 935-960MHz
Gain:82dB
Output Power: 27dBm
Bandwidth:25M/75M/60M
Noise Figure:<=6
VSWR:<=3
Connector Type:N Female
LCD Display: Done
Sleeping Mode: Done
AGC Function (Automatical Gain Control): Done

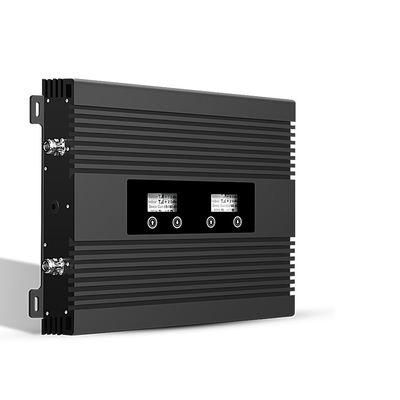

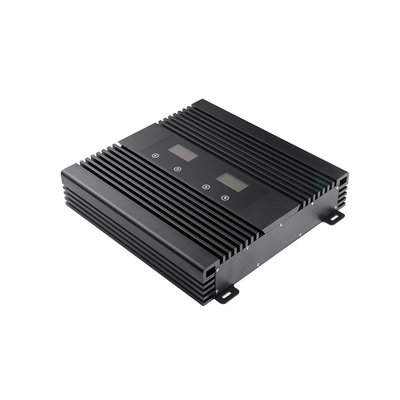

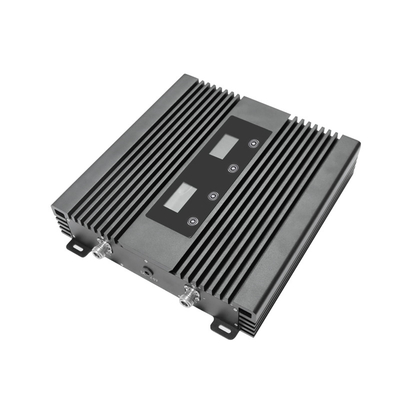

800 900MHz LTE GSM Mobile Signal Booster 2G 4G Cell Phone Repeater
Dual Band LTE/GSM Mobile Signal Repeater Ampilifier 2G/4G Cell Phone Booster 800/900MHz
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
832-862MHz,890-915MHz |
|
Downlink |
791-821MHz, 935-960MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
30MHz&25MHz |
|
|
Gain |
80dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
27dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
800+900 A012 Signal Repeater.pdf
Product Description

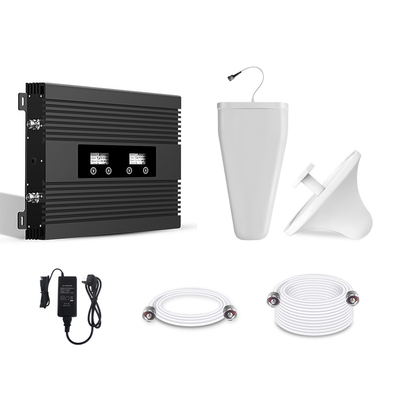

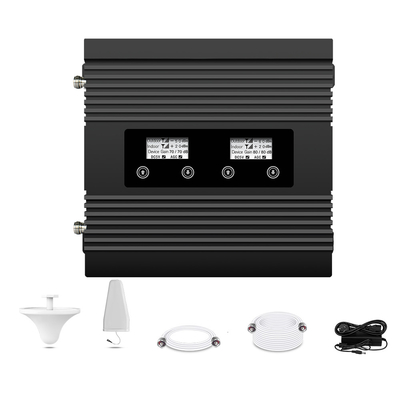

Packaging Including:
[1] Tri Band Booster Base Unit
[2] AC Power Cord
[3] Outdoor Panel Antenna
[4] Indoor Panel Antenna
[5] 35 Meters White Coax. Cable
We are manufacturer, and have our own factory.
Signal problem & installation technique supporting
1. If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2. If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5.What are the benefits of using a mobile signal booster?
