Product Details:
|
| Booster Gain: | 68±2dB | Booster Power: | 17--20dBm |
|---|---|---|---|
| Frequency Range: | 880-915MHz，925-960MHz | Connector Type:: | SMA/F |
| Products Name: | Cellular Amplifier | Booster Bandwidth: | Wide Range,Supports From 0.2 To 20MHz Bandwidth Adjusted |
| Support Network: | 2G 3G, Voice | WIFI Contronal: | Done |
| Highlight: | EGSM 900MHz Mobile Signal Repeater,900MHz 68dB Mobile Signal Repeater,68dB GSM Repeater 900mhz |
||
Digital EGSM Band8 900MHz mobile phone signal repeater Selective Band with Wifi control
Digital GSM Band8 GSM 900MHz Band Selective Mobile Signal Repeater Amplifier
Product Detail:
Model No :AS-BS-G
With ALC AGC Function
Can control gain automatically. Avoid base station interference
(Band 8) 900MHz -- Uplink frequency: 880-915MHz/Downlink frequency : 925-960MHz
Network support : 2G Voice,4G
Gain :70±2dB
Power Supply :AC110V～220V;DC+5V/2A
Connector Type: SMA-F
Wide Range,Supports 10MHz from 0.2 to 10MHz bandwidth adjusted by Wifi(Customized)
Different kind of frequencies digital band selective for your choice:
Different kinds of frequencies for your choice:
Band 5 : Uplink : 824 - 849 MHz Downlink : 869 - 894 MHz (B20 800 available )
Band 8: Uplink : 880 - 915 MHz Downlink : 925 - 960 MHz
Band 3 : Uplink : 1710 - 1785 MHz Downlink : 1805 - 1880 MHz
Band 2 : Uplink : 1850 - 1910 MHz Downlink : 1930 - 1990 MHz
Band 1 : Uplink : 1920 - 1980 MHz Downlink : 2110 - 2170 MHz
Band 40: Uplink : 2305 - 2315MHz Downlink : 2350 - 2360 MHz
Band 7 : Uplink : 2500 - 2570 MHz Downlink : 2620 - 2690 MHz
.......etc.
Band Options : Single Band, Dual Band, Tri Band, Four Band, Free combinations.
|
Single Band Repeater with AGC/MGC |
||||
|
Model |
AS-BS-G |
|||
|
Frenquecy Range |
UplinK:880~915MHz Downlink:925~960MHz |
|||
|
Working System |
Band8 EGSM 900MHz |
|||
|
Gain |
70dB |
|||
|
Device Output Power |
17-20dBm |
|||
|
Bandwidth |
Wide Range,Supports from 0.2 to 20MHz bandwidth adjusted(Customized) |
|||
|
Ripple in Band |
≤4dB |
|||
|
Noise Figure @ Max.Gain |
≤6dB |
|||
|
V.S.W.R |
≤2dB |
|||
|
MTBF |
>50000Hours |
|||
|
Power Supply |
AC110V～220V;DC+5V/2A |
|||
|
Power Comsumption |
<20W |
|||
|
Impedance Matching |
50ohm |
|||
|
Mechanical Specification |
||||
|
RF Connector |
SMA/F |
|||
|
Cooling |
Heatsink Convection Cooling |
|||
|
Dimension |
170*130*26(mm) |
|||
|
Net Weight |
0.35KG |
|||
|
Installation Type |
Wall Installation or Desk |
|||
|
Environment Conditions |
IP40 |
|||
|
Origin |
Shenzhen |
|||
|
Operating Temperature |
-10°C~55°C |
|||
Further detail pls click here for downloading the products specification:
EGSM 900MHz B08 RF Repeater.docx.pdf
Selling Point
⭐ Intelligent to guide the installation with LCD .
⭐ Real time display the signal strength .
⭐ Automatic dormancy when no user make the calling .
⭐ Automatic alarm when installation mistake and provide the according solution .
⭐ Automatic adjust the system gain to avoid the repeater self-excitation .
⭐ Initiative reminding when the device was damaged .
⭐ Supports from 0.2 to 20MHz bandwidth adjusted(Customized) .
⭐ Supports 5G bandwidth, 40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .
⭐With WIFI Monitor+Control(Customized),NMS(network management system),Function Optional .
⭐ A variety of appearance customization.

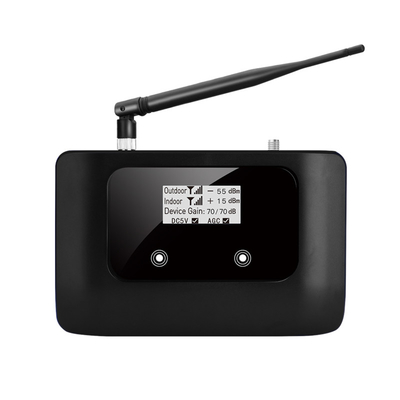

Product Pictures
