Product Details:
|
| Frequency Range: | According To Customer's Need,(Band 20) 800MHz -- Uplink Frequency: 832-862MHz/Downlink Frequency : 791-821MHz (Band 8) 900MHz -- Uplink Frequency: 890-915MHz/Downlink Frequency : 935-960MHz | Gain: | 70dB |
|---|---|---|---|
| Output Power: | 20±3dBm | Color: | Gold Black White Customized |
| AGC Intelligent Function: | Done,31dB @ 1dB/ Step | ALC Intelligent Function: | Done |
| MGC: | Done | RF Connect Type: | N/Female |
| Power Supply: | AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter) | Inter-Modulation Attenuation ACPR: | ≤ -40dBc / 30kHz (measured Under Rated Output Power) |
| Weight: | 4kg | Packing Size: | 52x21x16cm |
| High Light: | 70dB High Gain Signal Booster,2100MHz High Gain Signal Booster,70dB 2G 3G 4G Signal Booster |
||

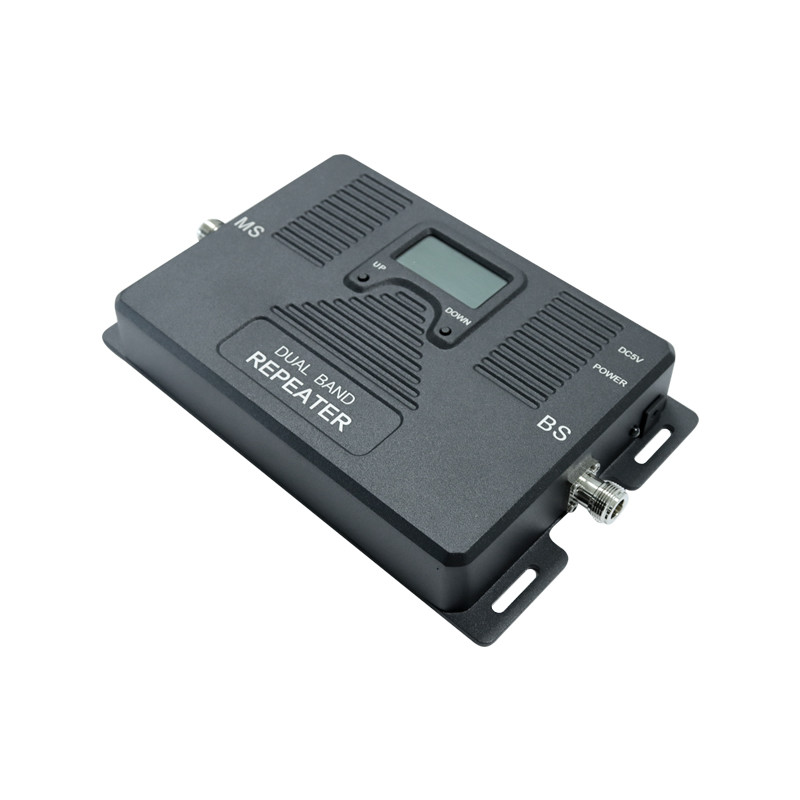

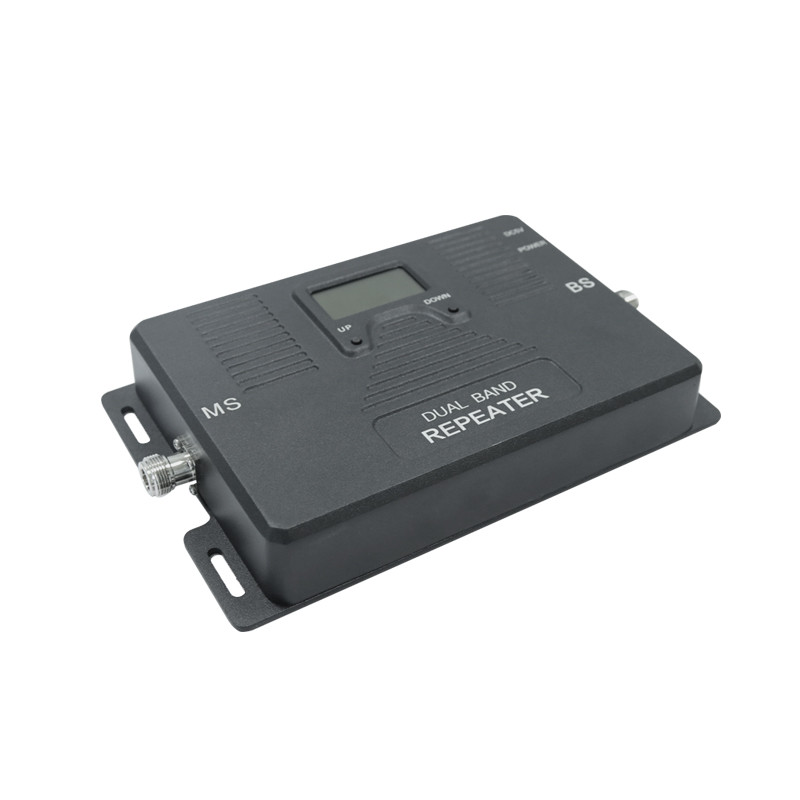

Automatic 70dB High Gain Signal Booster Dual Band E900 2100MHz
Dual Band E900 / 2100MHz 2G 3G 4G Signal Booster High Gain Mobile Repeater Amplifier
Selling Point
1. Intelligent to guide the installation with LCD
2. Real time display the signal strength.
3. Automatic dormancy when no user make the calling
4. Automatic alarm when installation mistake and provide the according solution
5. Automatic adjust the system gain to avoid the repeater self-excitation
6. Initiative reminding when the device was damaged.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
880-915MHz, 1920-1980MHz |
|
Downlink |
925-960MHz, 2110-2170MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
35MHz&60MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
♦ Outdoor Antenna:
Receive outside phone signal from Base Station
♦ Signal Booster:
Strengthen outside phone signal to inside use
♦ Indoor Antenna:
Transmiss the phone signal strengthened inside home
♦ Jump Cable:
For connecting the antennas to the signal booster
Accessories
a. One dual band signal booster;
b. One indoor antenna;
c. One outdoor antenna;
d. 20meter cable and 5meter cable;
e. User manual;
f. Power adapter.
It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.
FAQ:
1.
Q: Are you trading company or manufacturer ? Could I use our own logo and label?
A: We are factory, with trading service. We provide OEM/OEM service.
2.
Q: Can I have a sample order? What is your MOQ?
A: Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3.
Q: How many square meters can be covered?
A: For different models, the covered square meters are different.
4.
Q: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.
5.
Q: Can I use your device in suburbs or remote areas?
A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
