Multi Band 85dB Mobile Signal Boosters For Full Network 2G 3G 4G 5G

Multi Band 85dB Mobile Signal Boosters For Full Network 2G 3G 4G 5G

Brand Name: ATNJ
Model Number: AT-5 Bands
MOQ: 1
Price: USD+1100---1400+kit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit)
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
Support Frequency Range:
Customized
Device Gain:
82±3dB
Device Output:
25±2dBm
Color For Choice:
Black ,Cuztomized
AGC Intelligent Function:
Done,31dB @ 1dB/ Step
RF Connect Type:
N/Female
Products Type:
Cellular Signal Booster, 5g Signal Booster
Supply Ability:
1000+unit+per day.
High Light:

82dB Mobile Signal Boosters

,

5μs DC24V Mobile Signal Boosters

,

ROHS 82dB 3G 4G Signal Booster

Product Description

Multi Band 82dB Mobile Signal Boosters For Full Network 2G 3G 4G 5G



Full Network for 2G 3G 4G 5G Multi Band mobile signal booster repeater





A cell phone booster is a device that gathers the signal from the air, usually through an outdoor unit (such as an antenna), and “conveys” this signal to an indoor unit that is supposed to boost the signal. This conveying is done through a wired connection between the outdoor antenna and the indoor unit. The indoor cell phone booster, in turn, is provided with external power through a power outlet and has a complex circuitry that allows it to amplify the weak signal that has been received by the outdoor antenna. The indoor unit then sends the electrical signal to the indoor antenna that is directly connected to the unit, and the antenna converts the electrical signal to waves of the same frequency as were received by the outdoor unit. This, the frequency range of the waves does not change, and the cell phones do not notice any difference, except for a dramatic increase in the signal power that they are receiving.



Thus, as we can see, cell phone signal boosters are devices that literally boost the cell phone signal that you are receiving. This is done through some complex circuitry that works through the use of external power and boosts the signal to usable levels.



DEVICE REPEATER PARAMETER

Band5 CDMA 850MHz

825-835MHz/870-880MHz(Uplink / Downlink )

Band8 GSM 900MHz

889-915MHz/934-960MHz(Uplink / Downlink )

Band3 DCS 1800MHz

1710-1755MHz/1805-1850MHz(Uplink / Downlink )

Band1 WCDMA 2100MHz

1940-1955MHz/2130-2145MHz(Uplink / Downlink )

Band3 FDD-LTE 1800MHz

1755-1785MHz/1850-1880MHz(Uplink / Downlink )

Band38 TDD-LTE 2600MHz

2575-2675MHz(Uplink / Downlink )





Uplink

Downlink

Max Gain

75

82

Max Gain error

3 ±

3 ±

ALC Working Range

 ≥ 20

≥ 20

Passband Ripple

 ≥ 6

≥ 6

Receiver Sensitivity

 ≥ 90

...

Max Power

20 ± 3

27±3

Spurious Emission

≤- 36dBm/100KHz

≤- 36dBm / 100KHz

Intermodulation Attenuation

≤- 45

≤- 45

VSWR

≤ 25

≤ 25

System Delay

≤ 2μs





Working Voltage

DC24V

Working Current

 < 5A

Power Supply

AC 100~240V 50 / 60Hz

Working Temperature

-25°c ~+ 55°c

Working Relative Humidity

 ≤ 85°c

RF connector

N-K

FDDI connector

FC / APC

Dimensions

416X268X71mm

Weight

8.5kg

Further detail pls click here for downloading the products specification:

Multi-Band High Power RF Repeater.pdf

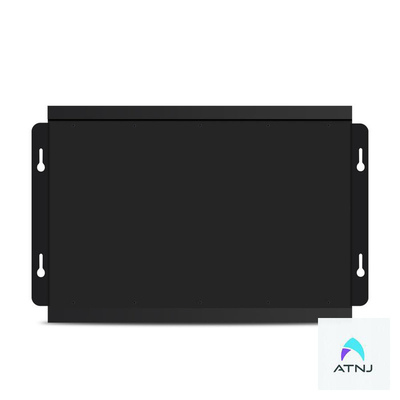

Multi Band 85dB Mobile Signal Boosters For Full Network 2G 3G 4G 5G 0

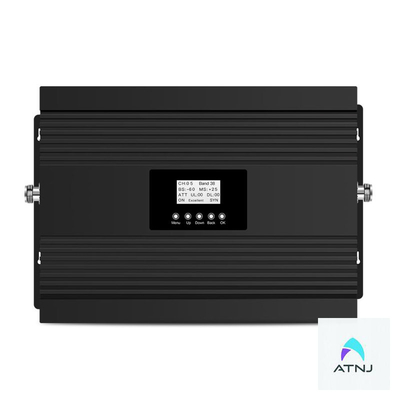

Multi Band 85dB Mobile Signal Boosters For Full Network 2G 3G 4G 5G 1





5 Band Mobile signal booster Installation DiagramMulti Band 85dB Mobile Signal Boosters For Full Network 2G 3G 4G 5G 2

Signal Booster Structure Size

Multi Band 85dB Mobile Signal Boosters For Full Network 2G 3G 4G 5G 3





We are manufacturer, and have our own factory.



Shipping
● We will send your parcel as soon as possible after payment confirmed, Within 48 hours for normal,Except weekend and Chinese holidays.
● Please provide your correct address,full name,and zip code.
● We generally would declare the parcel with lower value to avoid or lessen the Customs Tax.Import Tax is not including in the price. When it happens, it is buyers responsibility to pay for the tax and custom clearance.
● Shipping is out of our control. If you want to get the product fast, please choose fast shipping methods, like EMS, UPS and DHL. If you find the package is beyond promised delivered time, please contact us, we will contact with the carriers and find out the reason.


Feedback
● If you are satisfied with our service and product,we would be very appreciated that you put us five stars and positive review. You could also recommend it to people who needs it.Thank you very much.



FAQ:

1. Are you trading company or manufacturer ? Could I use our own logo and label?

   We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
    Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3. Is it easy to set up your items?
    Yes. We have a user manual and support technical support 24/7.



4. Can this mobile signal repeater create a signal where there is no cell signal before?

    The mobile signal repeater cannot produce a signal, only amplify a weak one.
