| Brand Name: | ATNJ |
| Model Number: | AT-5 Bands |
| MOQ: | 5Pcs |
| Price: | USD+1800---2300+kit |
| Packaging Details: | Standard neutral packing,48x46x18cm(1 kit) |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |

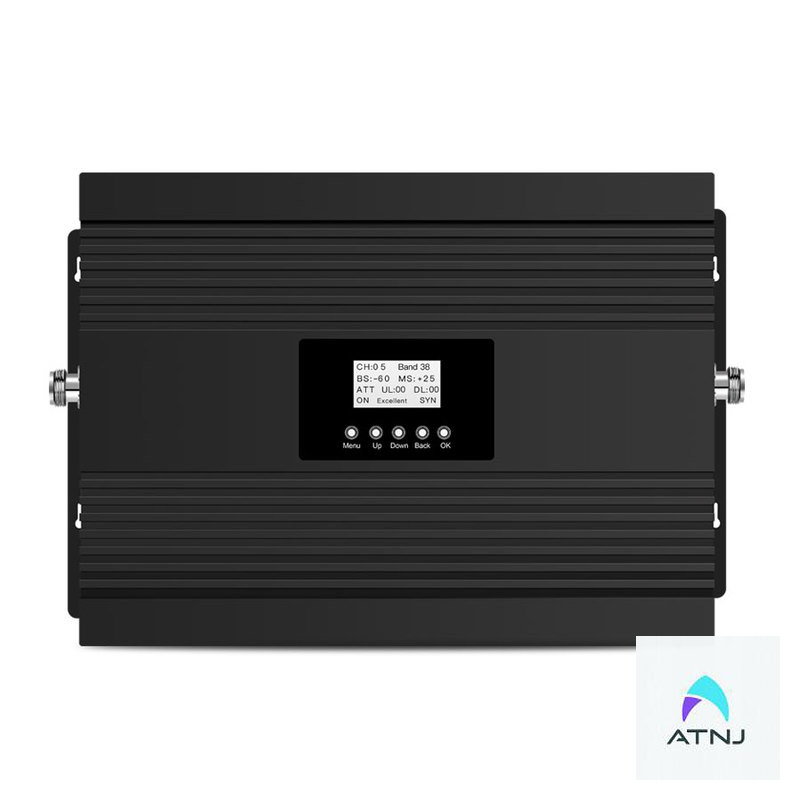

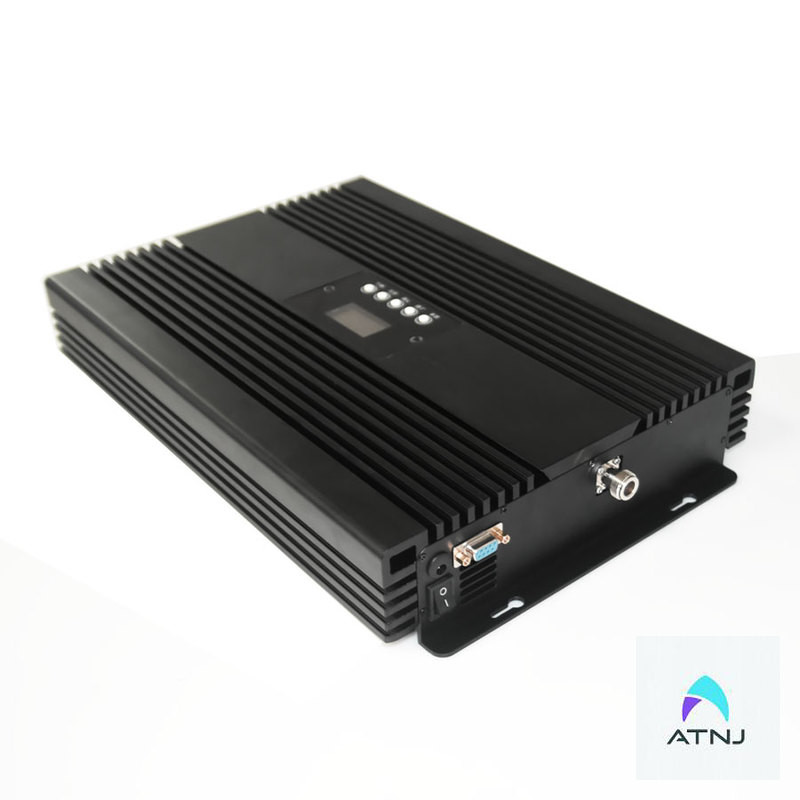

2G 3G 4G 5G Signal Booster
Penta-band full Network for 2G 3G 4G 5G Multi Band Repeater cellular amplifier signal booster
|
Band5 CDMA 850 |
825-835MHz/870-880MHz(Uplink / Downlink ) |
|
Band8 GSM 900 |
889-915MHz/934-960MHz(Uplink / Downlink ) |
|
Band3 DCS 1800 |
1710-1755MHz/1805-1850MHz(Uplink / Downlink ) |
|
Band1 WCDMA 2100 |
1940-1955MHz/2130-2145MHz(Uplink / Downlink ) |
|
Band3 FDD-LTE 1800 |
1755-1785MHz/1850-1880MHz(Uplink / Downlink ) |
|
Band38 TDD-LTE 2600 |
2575-2675MHz(Uplink / Downlink ) |
|
|
Uplink |
Downlink |
|
Max Gain |
75 |
82 |
|
Max Gain error |
3± |
3± |
|
ALC Working Range |
≥20 |
≥20 |
|
Passband Ripple |
≥6 |
≥6 |
|
Receiver Sensitivity |
≥90 |
... |
|
Max Power |
20±3 |
27±3 |
|
Spurious Emission |
≤-36dBm/100KHz |
≤-36dBm/100KHz |
|
Intermodulation Attenuation |
≤-45 |
≤-45 |
|
VSWR |
≤25 |
≤25 |
|
System Delay |
≤2μs |
|
|
|
|
|
5 Band Mobile signal booster Parameter index
|
Working Voltage |
DC24V |
|
Working Current |
<5A |
|
Power Supply |
AC 100~240V 50/60Hz |
|
Working Temperature |
-25°c~+55°c |
|
Working Relative Humidity |
≤85°c |
|
RF connector |
N-K |
|
FDDI connector |
FC/APC |
|
Dimensions |
416X268X71mm |
|
Weight |
8.5kg |
Further detail pls click here for downloading the products specification:
Multi-Band High Power RF Repeater.pdf
5 Band Mobile signal booster Installation Diagram
Selling Point
⭐ Intelligent to guide the installation with LCD .
⭐ Real time display the signal strength .
⭐ Automatic dormancy when no user make the calling .
⭐ Automatic alarm when installation mistake and provide the according solution .
⭐ Automatic adjust the system gain to avoid the repeater self-excitation .
⭐ Initiative reminding when the device was damaged .
⭐ Supports from 0.2 to 20MHz bandwidth adjusted(Customized) .
⭐ Supports 5G bandwidth, 40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .
⭐With WIFI Monitor+Control(Customized),NMS(network management system),Function Optional .
⭐ A variety of appearance customization.
Signal Booster Structure Size
FAQ
1. What is your advantage?
---Your inquiry will be replied in 24hours .
---OEM&ODM, for any of your customized products we can help you to design and put into product .
---All our products with 36months guarantee .
2. What is our Payment methods?
We agree T/T, Western Union, PayPal.L/C for old customers.
3. What is our Shipping & Trade terms?
Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc .
Delivered time: 1-3 business days for sample, 10-25 days for mass order .
Trade terms: EXW, FOB , CIF etc .
4. What is our Warranty and Certificates?
Our warranty is 36 months .
We have CE, ROHS, FCC certificates .
5. What is your MOQ?
1pc sample test is welcomed .
|
