Product Details:
|
| Frequency Range: | According To Customer's Need,(Band 3)1800MHz -- Uplink Frequency: 1710-1785MHz/Downlink Frequency :1805-1880MHz (Band 8)900MHz -- Uplink Frequency: 880-915MHz/Downlink Frequency : 925-960MHz | Gain: | ≥70dB |
|---|---|---|---|
| Output Power: | 20dBm | Color: | Gold And Black And White Or Cuztomized |
| AGC Intelligent Function: | Done,31dB @ 1dB/ Step | ALC Intelligent Function: | Done |
| MGC: | Done | Warranty: | 2 Years |
| Weight: | 4kg | Packing Size: | 52x21x16cm |
| Highlight: | 2G 4G Dual Band Signal Booster,20dBm Dual Band Signal Booster,20dBm Cell Phone Signal Repeater |
||
2G 4G Dual Band Signal Booster

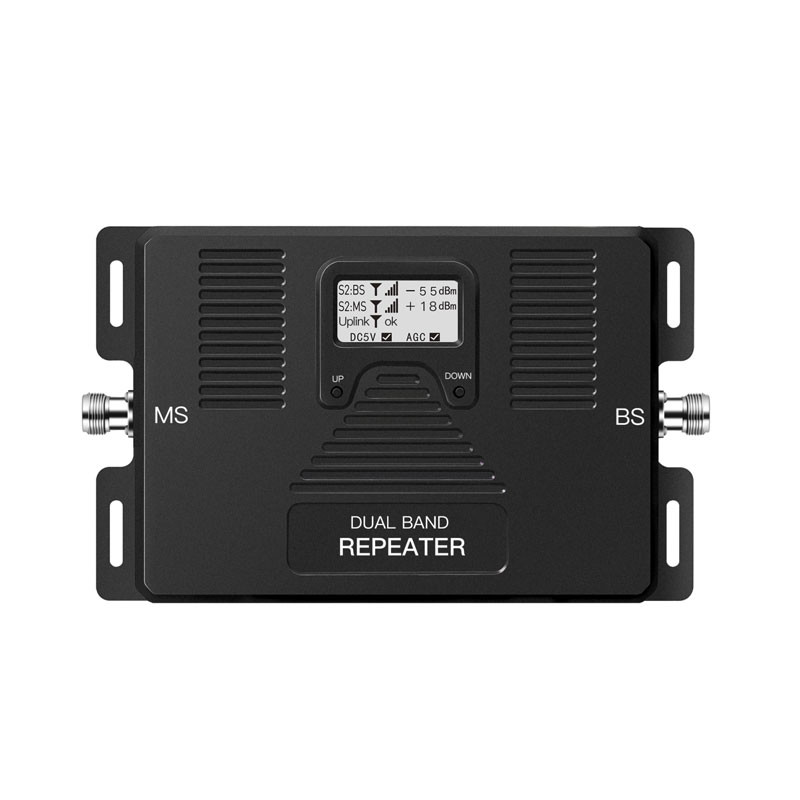

2G 4G Dual Band Signal Booster E900/1800MHz Cell Phone Signal Repeater Amplifier
Check the frequency range before you buy
To make sure that the amplifier you buy is suitable for your mobile operator, please follow the steps and detect the frequency range of your mobile phone. This signal booster can only work on Band 8, Band 3.
Band 8 = B8 = 2G GSM900/EGSM900
Band 3 = B3 = 4G LTE1800/4G LTE1800
Band 1 = B1 = 3G WCDMA2100/3G UMTS2100
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
880-915MHz,1710-1785MHz |
|
Downlink |
925-960MHz,1805-1880MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
35MHz&75MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
E900+1800MHz A032 mobile signal repeater.pdf
Product Description
LCD Display
Even a non-technical person can easily install and use this signal booster. The display shows all important information and prompts: input and output signal strength, installation details, power, AGC (automatic gain control), etc.
AGC MGC Function
The AGC and MGC functions can prevent the amplified signal from causing interference to the base station. Even if it is installed incorrectly, the amplifier can protect the normal operation of the base station.
Adjustable Gain
Automatic adjust the system gain to avoid the repeater self-excitation

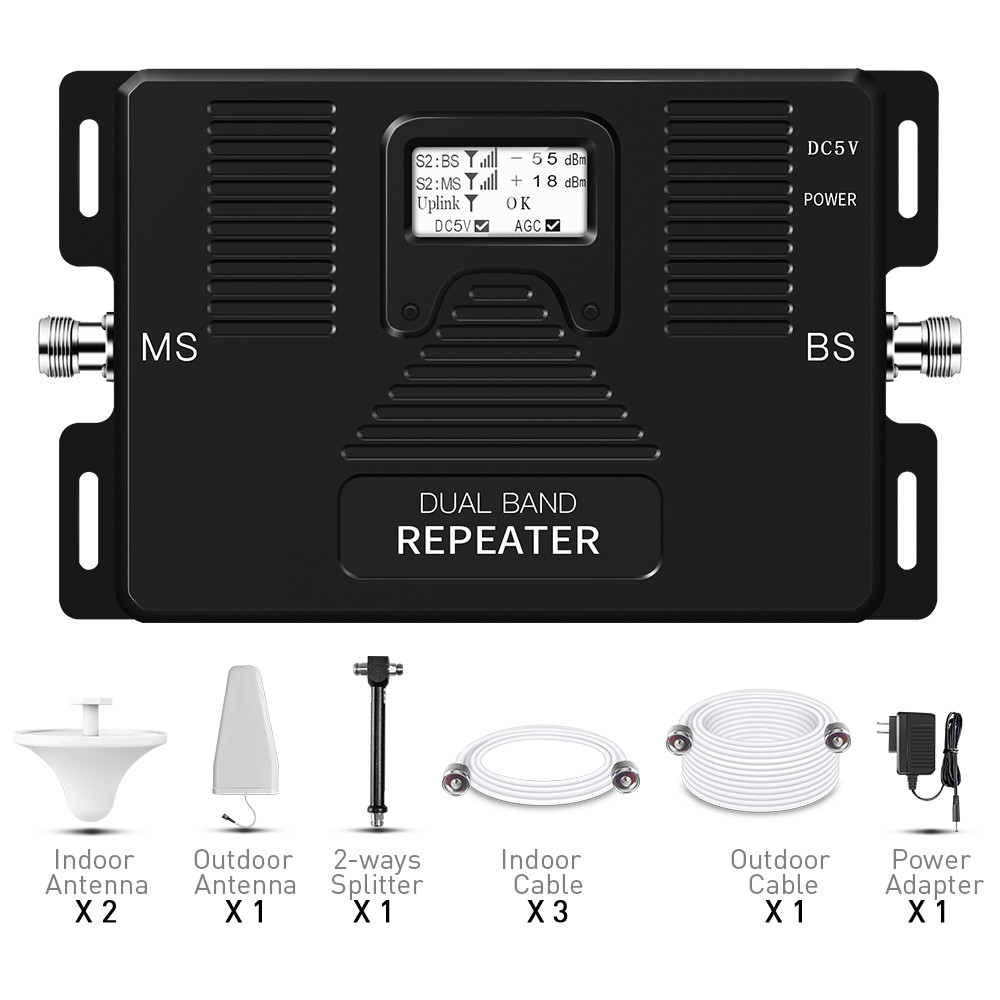

Accessories
a. One dual band signal booster;
b. One indoor antenna;
c. One outdoor antenna;
d. 20meter cable and 5meter cable;
e. User manual;
f. Power adapter.
Installation Approaches
1.Fix up outdoor antenna reception on housetop and point to signal tower;
2.Connect outdoor antenna to “outdoor” port in repeater nachine through cable;
3.Connect indoor antenna(s) to “indoor” port in repeater machinethrough cable also;
4.Plug power adaptor into AC power socket and finish installation.
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
