Dual Band Signal Booster
>
70dB Gain Dual Band Signal Booster 2G 4G Cellular Repeater Amplifier

70dB Gain Dual Band Signal Booster 2G 4G Cellular Repeater Amplifier

Brand Name: ATNJ
Model Number: JS-DB800/1800
MOQ: 1
Price: USD+100---120+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
800MHz Frequency Range:
832-862MHz / 791-821MHz
1800MHz Frequency Range:
1710-1785MHz / 1805-1880MHz
Color:
Gold And Black And White And Customized
AGC Intelligent Function:
Done,31dB @ 1dB/ Step
ALC Intelligent Function:
Done
MGC:
Done
Weight:
4kg
Products Type:
Repetidor De Seal, Band 3
Supply Ability:
1000+unit+per day.
High Light:

70dB Gain Dual Band Signal Booster

,

800MHz Dual Band Signal Booster

,

1800MHz Cellular Repeater Amplifier

Product Description

70dB Gain Dual Band Signal Booster 2G 4G Cellular Repeater Amplifier



70dB Gain Dual Band Signal Booster 800 1800MHz 2G 4G Cellular Repeater Amplifier



General
The 800/1800MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.





Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

832-862MHz, 1710-1785MHz

Downlink

791-821MHz, 1805-1880MHz

Frequency Bandwidth

30MHz&75MHz

Gain

70dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

20dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

N(Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Dimensions

165*130*40 (mm)

Weight

≤0.8 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

Indication LED

Power supply

Further detail pls click here for downloading the products specification:

800+1800MHz A032 mobile signal repeater.pdf



Selling Point



1. Intelligent to guide the installation with LCD


2. Real time display the signal strength.


3. Automatic dormancy when no user make the calling


4. Automatic alarm when installation mistake and provide the according solution


5. Automatic adjust the system gain to avoid the repeater self-excitation


6. Initiative reminding when the device was damaged.







Product Description



With ALC AGC Function

Can control gain automatically. Avoid base station interference



Network support : LTE800 4G + DCS 2/4G


Gain : 70dB
Power Supply : AC110V~220V; DC+5V/2A
Connector Type : N - female connector





Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 0Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 1Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 2Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 3Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 4

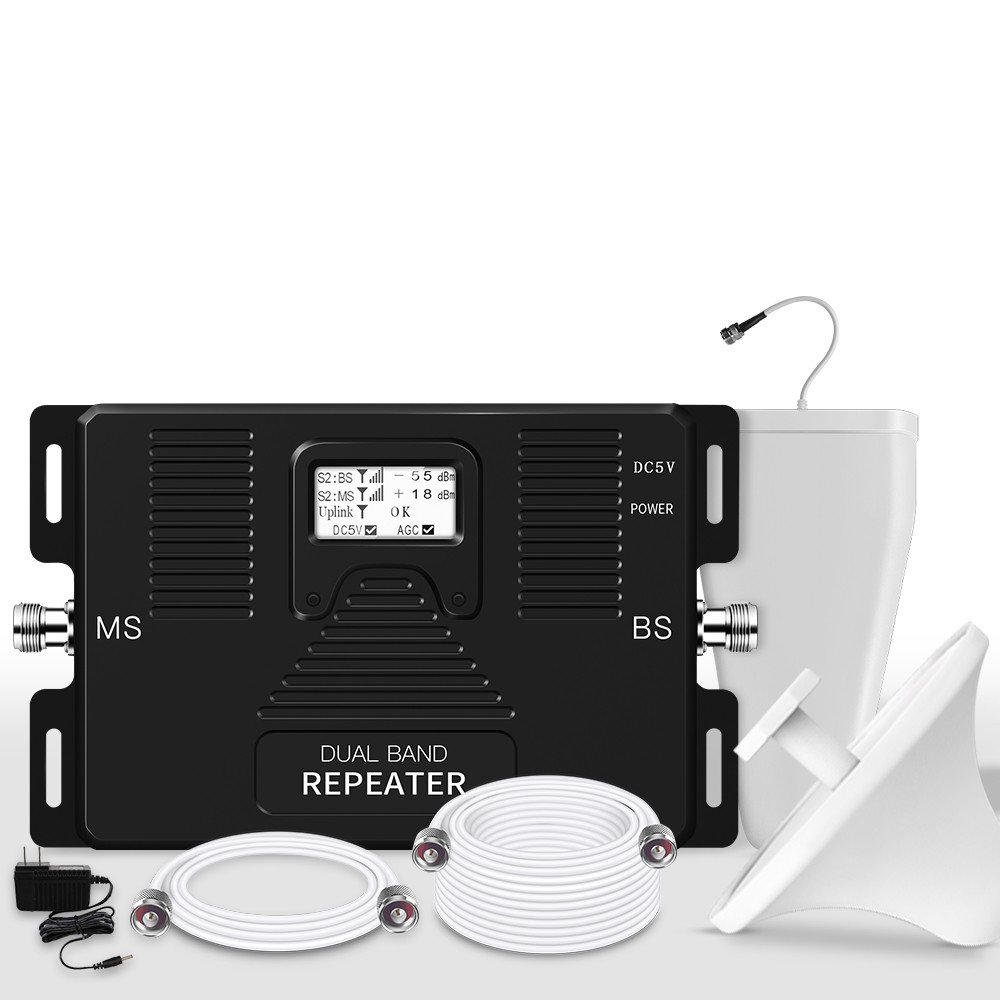

Accessories



a. Dual band signal booster;



b. Indoor Ceiling antenna;



c. Outdoor Log-periodic antenna;



d. Outdoor 20meter cable



e. Indoor 5meter cable;



f. User manual;



g. Power adapter.





Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 5

Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 6

Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 7

Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 8





The repeater makes the signal stronger in places with poor signal coverage such as:



1) Underground areas: basements, parking lots, tunnels;



2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;



3) Places distant from the BTS like private houses.





Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 9Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 10Dual Band Signal Booster 2G 3G 4G 850/2100MHz 70dB Gain Repeater Amplifier 11



FAQ:




Q1: Do you have CE or any other certification?
A: Yes,we CE, ISO, ROHS and CCC certification,etc.

Q2: What's your device lifespan?
A: Normally our device can be used 5-10 years.

Q3: How many square meters can be covered?
A: For different models, the covered square meters are different.

Q4: Can I use your device in suburbs or remote areas?
A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.

Q5: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.
