Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: JS-DB850/1700
Document: 850+1700MHz A032 mobile si...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+100---120+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
Delivery Time: 3 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
850MHz Frequency Range: |
824-849MHz / 869-894MHz |
1700MHz Frequency Range: |
1710-1755MHz / 2110-2155MHz |
Color: |
Gold & Black & White & Customized |
RF Connect Type: |
N/Female |
Weight: |
4kg |
Products Type: |
4G Signal Repeater, Aws Signal Booster |
850MHz Frequency Range: |
824-849MHz / 869-894MHz |
1700MHz Frequency Range: |
1710-1755MHz / 2110-2155MHz |
Color: |
Gold & Black & White & Customized |
RF Connect Type: |
N/Female |
Weight: |
4kg |
Products Type: |
4G Signal Repeater, Aws Signal Booster |

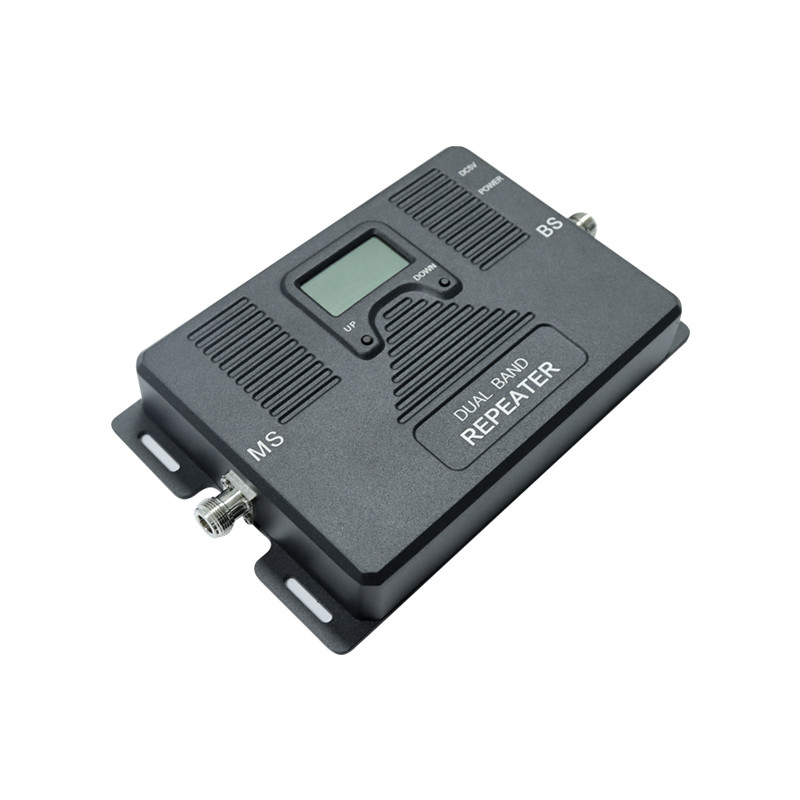

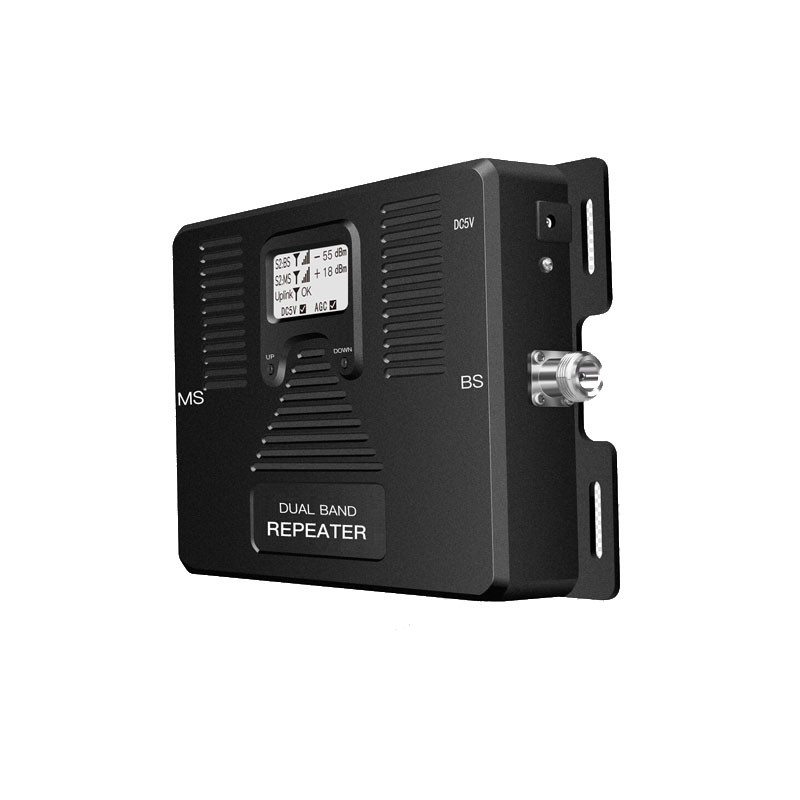

850MHz 1700MHz Dual Band Signal Booster ALC Automatic Level Control
850 1700 Dual Band Signal Booster 2G 3G 4G Mobile Phone Signal Repeater Amplifier
Selling Point

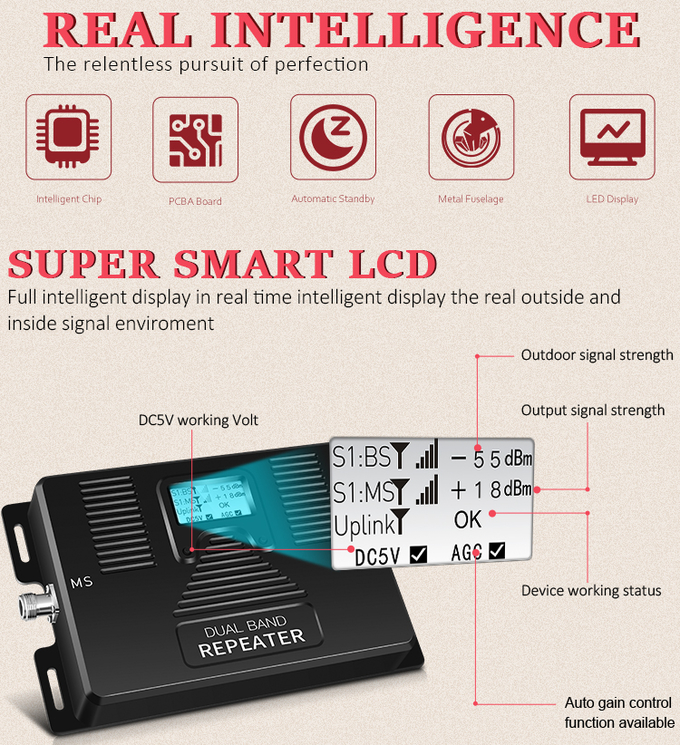

1. Smart LCD: Show the real-time signal strength.
2. Sleeping Mode : When no user calls, the device works in Sleeping mode, so as to achieve the purpose of energy saving.
3. ALC(Automatic Level Control) : Automatically adjust the output gain down to optimal figure while the output gain is above the optimal figure by the ALC circuit, this can greatly optimize the calling and data transfer quality.
4. AGC (Automatic Gain Control) : When the downlink output signal is too strong or self-oscillated, booster can automatically reduce the gain and reduce the interference signal.
5. MGC (Manual Gain Control) : In order to install the booster conveniently, all frequency band of the booster have the Gain attenuation adjustment function, the adjustment scope is 0-27dB.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
824-849MHz, 1710-1755MHz |
|
Downlink |
869-894MHz, 2110-2155MHz |
|
|
Frequency Bandwidth |
25MHz&45MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20±3dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
850+1700MHz A032 mobile signal repeater.pdf
Product Description
Please Check Frequency before Buying How to check?
- Android mobile phone
Download App called < Network Cell Info Lite >
The App will tell the number of LTE band
- Iphone
Dial *3001#12345#*
Clink Cell Serving Info
Check Freq Band Indicator, the number is LTE Band
With ALC AGC Function
Can control gain automatically. Avoid base station interference
Network support : CDMA 2/3G + AWS 3/4G
Gain : 70dB
Power Supply : AC110V～220V; DC+5V/2A
Connector Type : N-female connector
Accessories
a. One dual band signal booster;
b. One indoor antenna;
c. One outdoor antenna;
d. 20meter cable and 5meter cable;
e. User manual;
f. Power adapter.
It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. What's your device lifespan?
Normally our device can be used 5-10 years.
5. How many square meters can be covered?
For different models, the covered square meters are different.
6. Can I use your device in suburbs or remote areas?
Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
7. How about gain and output power of your device?
Different models, gain and output power are different,for more details, please contact us.
