LTE800 GSM LTE2600 Tri Band Repeater

LTE800 GSM LTE2600 Tri Band Repeater

Brand Name: ATNJ
Model Number: AS-800/900/2600/H
MOQ: 1
Price: USD+315---330+kit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit),
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
Frequency Range:
Band20 800MHz+Band8 900MHz+Band 7 2600MHz
Device Gain:
80±2dB
Output Power:
27±3dBm
Color:
Black
Power Supply:
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter)
Inter-Modulation Attenuation ACPR:
≤ -40dBc / 30kHz (measured Under Rated Output Power)
Packing Weight::
10kg
Packing Size:
48x46x18cm
Supply Ability:
1000+unit+per day.
High Light:

GSM 4G Tri Band Repeater

,

TUV 2600MHz Tri Band Repeater

,

ROHS 800MHz GSM 4G Booster

Product Description

GSM 4G Tri Band Repeater

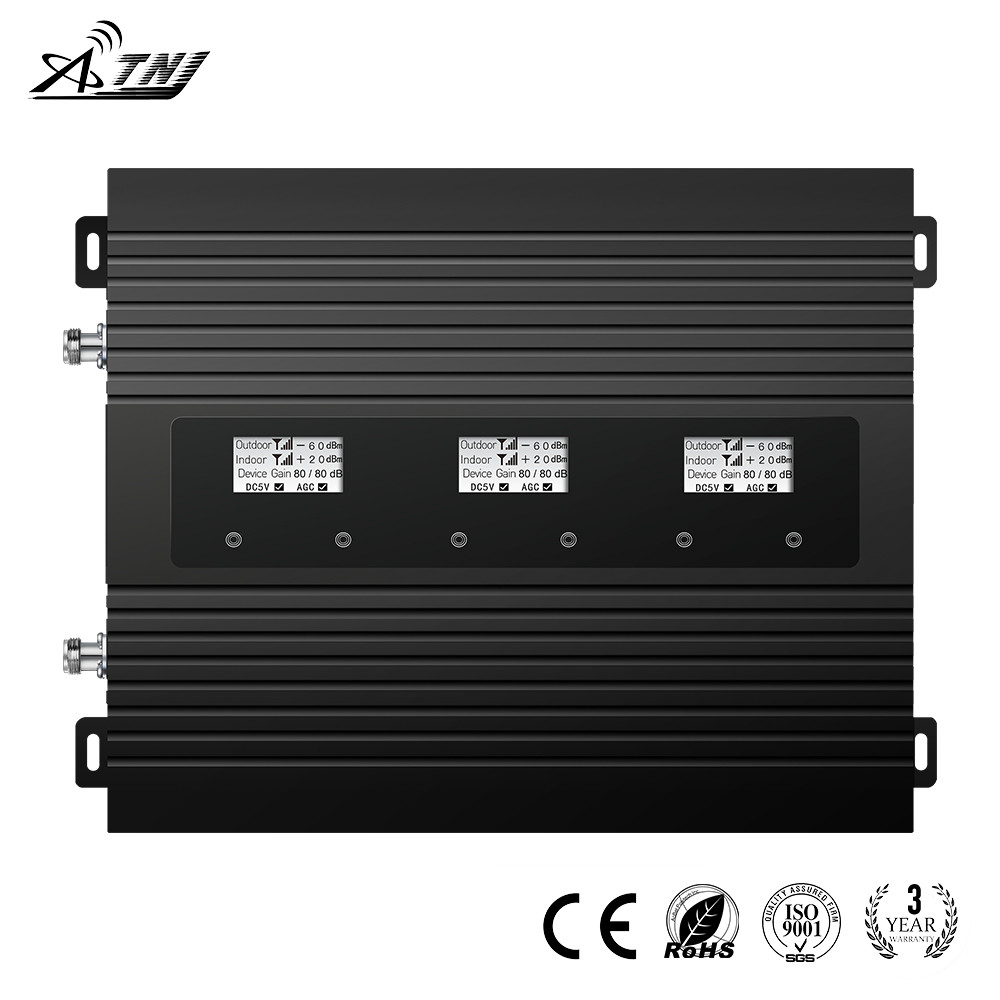

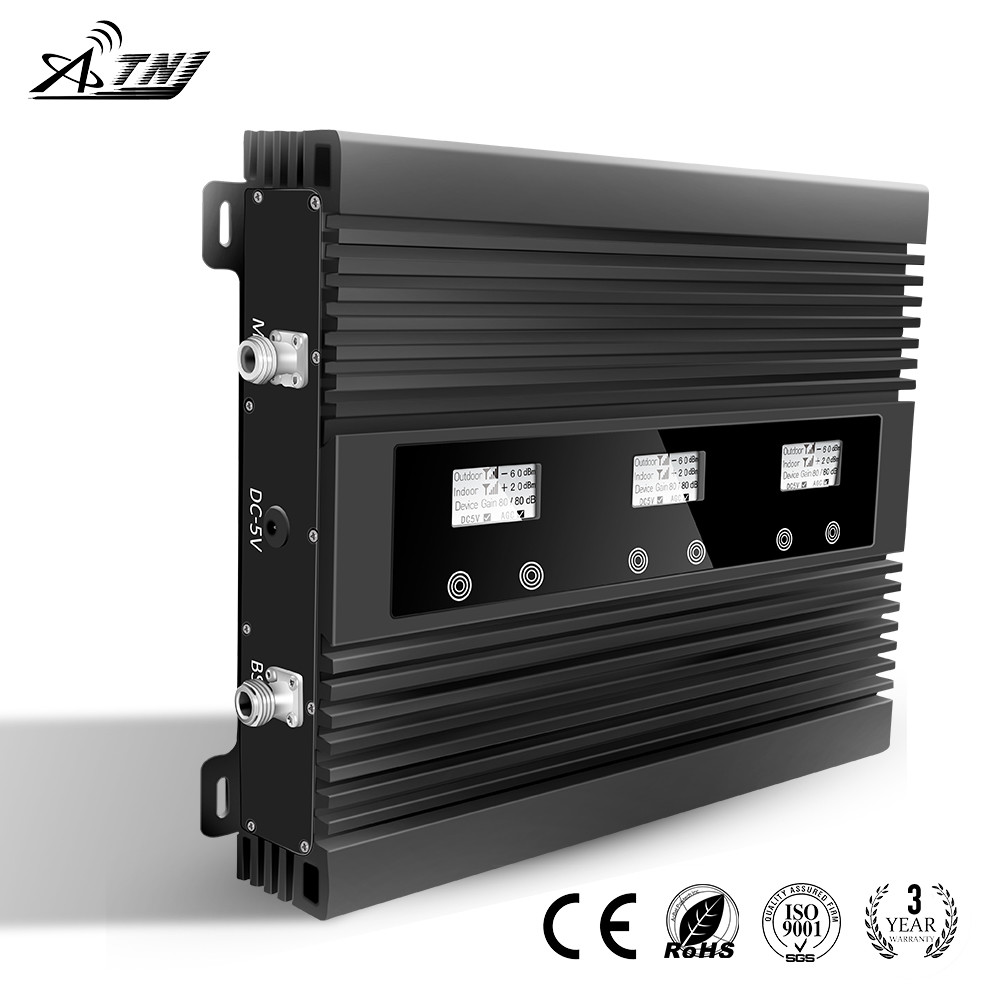

800/900/2600MHz Tri Band Signal Repeater GSM Amplifier 4G Booster Tri LCD Display



Selling Point



[1] Improve LTE 800 GSM 900 and FDD LTE 2600 at the same time

[2] Support more than 20 cell phones to use at the same time

[3] Support different operators which has LTE800 GSM900 or FDD LTE2600 frequency band

[4] Easy to install. This repeater set includes everything you need.

[5] LED signal light indicates the signal status.

[6] One year warranty.



Technical Specifications:

Specifications Parameters
Frequency Range (Customers to Choose) Uplink 832-862MHz, 890-915MHz, 2500-2570MHz
Downlink 791-821MHz, 935-960MHz, 2620-2690MHz
Frequency Bandwidth (3dB Bandwidth) 30MHz, 25MHz, 70MHz
Gain 80dB
Automatic gain control (Step Attenuation) 31dB @ 1dB/ Step
Auto Gain Control 20dB Min.
Output Power(Customers to Choose) 27dBm
Spurious Emission ≤ -15dBm/30kHz
9kHz~1GHz: ≤ -36dBm/30kHz
1GHz~12.75GHz: ≤ -30dBm/30kHz
Inter-Modulation Attenuation ACPR ≤ -40dBc / 30kHz (measured under rated output power)
In-band Ripple ≤ 5dB
VSWR <=2
I/O Impedance 50 Ω
Noise Figure ≤ 5dB
System Delay ≤ 5μs
RF Connector(Customers to Choose) N -Type(Female)
Operating Temperature Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C
Power Supply AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)
Weight ≤8 kg(Net)
Alarm Monitoring System Alarm for uplink self-oscillation
Indication LED Power supply

Further detail pls click here for downloading the products specification:

800+900+2600 A013 Signal Repeater.pdf

Product Description





Multi-band Mobile Signal Booster 800/900/1800MHz Amplifier Repeater 2G 4G 0





Model No : AS-800/900/2600/H


Network support : GSM 2G + LTE800 4G + LTE2600 4G


Gain : 80dB
Connector Type : N-female connector







LTE800 GSM LTE2600 Tri Band Repeater 1LTE800 GSM LTE2600 Tri Band Repeater 2LTE800 GSM LTE2600 Tri Band Repeater 3LTE800 GSM LTE2600 Tri Band Repeater 4LTE800 GSM LTE2600 Tri Band Repeater 5





Installation Approaches



1. Fix up outdoor antenna reception on housetop and point to signal tower;



2. Connect outdoor antenna to “outdoor” port in repeater nachine through cable;



3. Connect indoor antenna(s) to “indoor” port in repeater machinethrough cable also;



4. Plug power adaptor into AC power socket and finish installation.





LTE800 GSM LTE2600 Tri Band Repeater 6





The repeater makes the signal stronger in places with poor signal coverage such as:



1) Underground areas: basements, parking lots, tunnels;



2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;



3) Places distant from the BTS like private houses.





LTE800 GSM LTE2600 Tri Band Repeater 7

Multi-band Mobile Signal Booster 800/900/1800MHz Amplifier Repeater 2G 4G 15

LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 17





FAQ

Q1: Do you have CE or any other certification?
A: Yes,we CE, ISO, ROHS and CCC certification,etc.

Q2: What's your device lifespan?
A: Normally our device can be used 5-10 years.

Q3: How many square meters can be covered?
A: For different models, the covered square meters are different.

Q4: Can I use your device in suburbs or remote areas?
A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.

Q5: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.
