| Brand Name: | ATNJ |
| Model Number: | AS-800/900/2600/H |
| MOQ: | 5Pcs |
| Price: | USD+315---330+kit |
| Packaging Details: | Standard neutral packing,48x46x18cm(1 kit), |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |

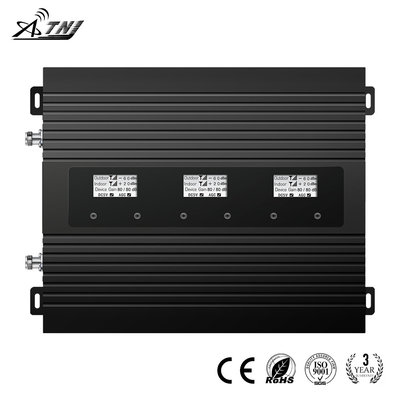

GSM 4G Tri Band Repeater
800/900/2600MHz Tri Band Signal Repeater GSM Amplifier 4G Booster Tri LCD Display
Selling Point
[1] Improve LTE 800 GSM 900 and FDD LTE 2600 at the same time
[2] Support more than 20 cell phones to use at the same time
[3] Support different operators which has LTE800 GSM900 or FDD LTE2600 frequency band
[4] Easy to install. This repeater set includes everything you need.
[5] LED signal light indicates the signal status.
[6] One year warranty.
Technical Specifications:
| Specifications | Parameters | |
| Frequency Range (Customers to Choose) | Uplink | 832-862MHz, 890-915MHz, 2500-2570MHz |
| Downlink | 791-821MHz, 935-960MHz, 2620-2690MHz | |
| Frequency Bandwidth (3dB Bandwidth) | 30MHz, 25MHz, 70MHz | |
| Gain | 80dB | |
| Automatic gain control (Step Attenuation) | 31dB @ 1dB/ Step | |
| Auto Gain Control | 20dB Min. | |
| Output Power(Customers to Choose) | 27dBm | |
| Spurious Emission | ≤ -15dBm/30kHz | |
| 9kHz~1GHz: ≤ -36dBm/30kHz | ||
| 1GHz~12.75GHz: ≤ -30dBm/30kHz | ||
| Inter-Modulation Attenuation ACPR | ≤ -40dBc / 30kHz (measured under rated output power) | |
| In-band Ripple | ≤ 5dB | |
| VSWR | <=2 | |
| I/O Impedance | 50 Ω | |
| Noise Figure | ≤ 5dB | |
| System Delay | ≤ 5μs | |
| RF Connector(Customers to Choose) | N -Type(Female) | |
| Operating Temperature | Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C | |
| Power Supply | AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) | |
| Weight | ≤8 kg(Net) | |
| Alarm Monitoring System | Alarm for uplink self-oscillation | |
| Indication LED | Power supply | |
Further detail pls click here for downloading the products specification:
800+900+2600 A013 Signal Repeater.pdf
Product Description
Model No : AS-800/900/2600/H
Network support : GSM 2G + LTE800 4G + LTE2600 4G
Gain : 80dB
Connector Type : N-female connector
Installation Approaches
1. Fix up outdoor antenna reception on housetop and point to signal tower;
2. Connect outdoor antenna to “outdoor” port in repeater nachine through cable;
3. Connect indoor antenna(s) to “indoor” port in repeater machinethrough cable also;
4. Plug power adaptor into AC power socket and finish installation.
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
|
|
| Brand Name: | ATNJ |
| Model Number: | AS-800/900/2600/H |
| MOQ: | 5Pcs |
| Price: | USD+315---330+kit |
| Packaging Details: | Standard neutral packing,48x46x18cm(1 kit), |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |
GSM 4G Tri Band Repeater
800/900/2600MHz Tri Band Signal Repeater GSM Amplifier 4G Booster Tri LCD Display
Selling Point
[1] Improve LTE 800 GSM 900 and FDD LTE 2600 at the same time
[2] Support more than 20 cell phones to use at the same time
[3] Support different operators which has LTE800 GSM900 or FDD LTE2600 frequency band
[4] Easy to install. This repeater set includes everything you need.
[5] LED signal light indicates the signal status.
[6] One year warranty.
Technical Specifications:
| Specifications | Parameters | |
| Frequency Range (Customers to Choose) | Uplink | 832-862MHz, 890-915MHz, 2500-2570MHz |
| Downlink | 791-821MHz, 935-960MHz, 2620-2690MHz | |
| Frequency Bandwidth (3dB Bandwidth) | 30MHz, 25MHz, 70MHz | |
| Gain | 80dB | |
| Automatic gain control (Step Attenuation) | 31dB @ 1dB/ Step | |
| Auto Gain Control | 20dB Min. | |
| Output Power(Customers to Choose) | 27dBm | |
| Spurious Emission | ≤ -15dBm/30kHz | |
| 9kHz~1GHz: ≤ -36dBm/30kHz | ||
| 1GHz~12.75GHz: ≤ -30dBm/30kHz | ||
| Inter-Modulation Attenuation ACPR | ≤ -40dBc / 30kHz (measured under rated output power) | |
| In-band Ripple | ≤ 5dB | |
| VSWR | <=2 | |
| I/O Impedance | 50 Ω | |
| Noise Figure | ≤ 5dB | |
| System Delay | ≤ 5μs | |
| RF Connector(Customers to Choose) | N -Type(Female) | |
| Operating Temperature | Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C | |
| Power Supply | AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) | |
| Weight | ≤8 kg(Net) | |
| Alarm Monitoring System | Alarm for uplink self-oscillation | |
| Indication LED | Power supply | |
Further detail pls click here for downloading the products specification:
800+900+2600 A013 Signal Repeater.pdf
Product Description
Model No : AS-800/900/2600/H
Network support : GSM 2G + LTE800 4G + LTE2600 4G
Gain : 80dB
Connector Type : N-female connector
Installation Approaches
1. Fix up outdoor antenna reception on housetop and point to signal tower;
2. Connect outdoor antenna to “outdoor” port in repeater nachine through cable;
3. Connect indoor antenna(s) to “indoor” port in repeater machinethrough cable also;
4. Plug power adaptor into AC power socket and finish installation.
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
