Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-BS-W1
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+120---130+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Frequency Range: |
1920-1980MHz/2110-2170MHz |
Device Gain: |
70dB |
Device Output Power: |
17-20dBm |
AGC MGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
Products Name: |
Signal Repeater |
RF Connect Type: |
SMA/Female |
WIFI Control: |
Done,with WIFI Monitor+Control |
Packing Size: |
54x19x16cm |
Frequency Range: |
1920-1980MHz/2110-2170MHz |
Device Gain: |
70dB |
Device Output Power: |
17-20dBm |
AGC MGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
Products Name: |
Signal Repeater |
RF Connect Type: |
SMA/Female |
WIFI Control: |
Done,with WIFI Monitor+Control |
Packing Size: |
54x19x16cm |

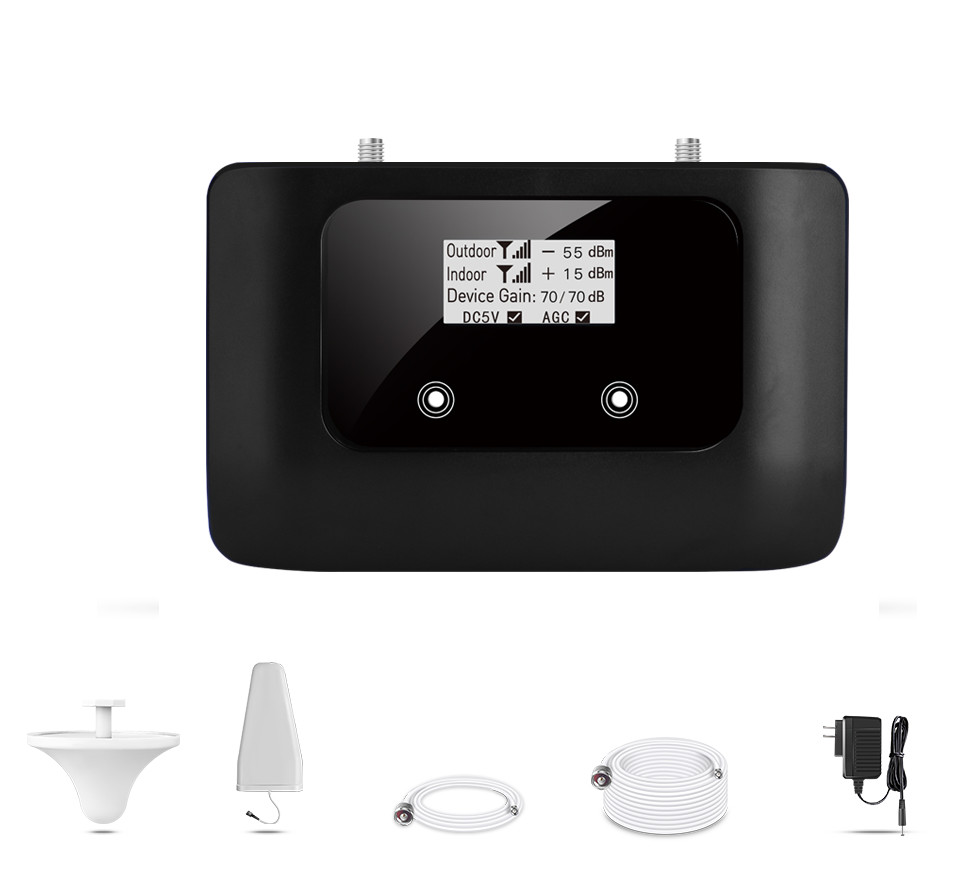

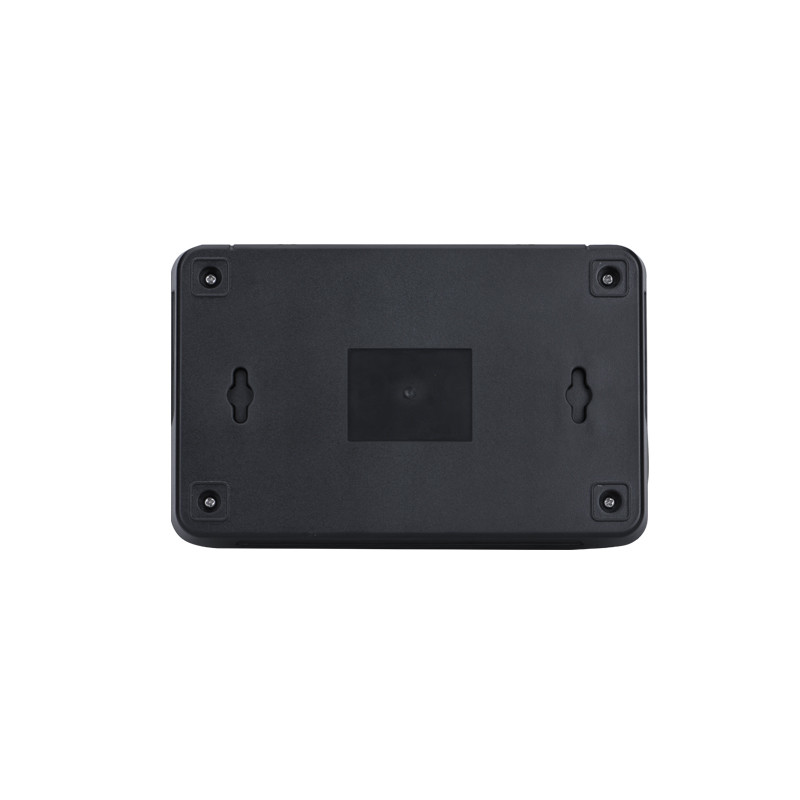

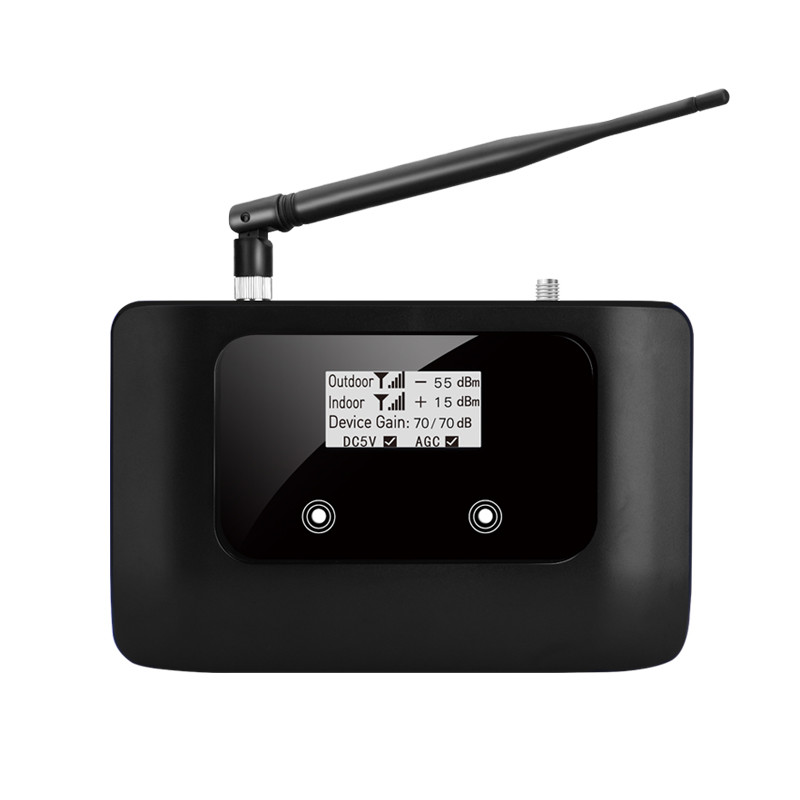

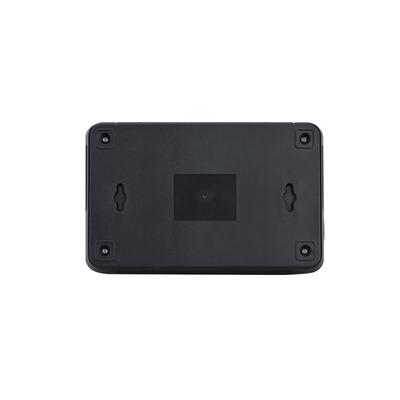

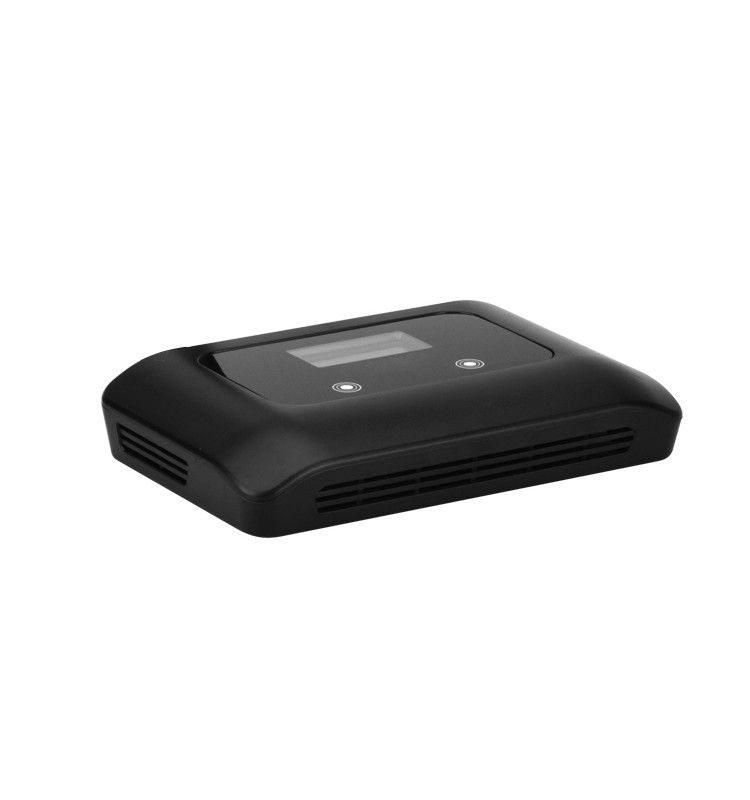

WIFI Control Digital 2100MHz Band1 Mobile Signal Repeater 3G Band Selective Amplifier
2022 new upgraded Micro power smart single band signal repeater for residential use with WIFI monitoring and control function, it could cover 100- 300sqm (standard kit), and could support max 2 to 3 indoor antennas to cover over 800sqm. Analog repeater and Digital(Customized Selected Band) repeater for choice.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
1920-1980MHz |
|
Downlink |
2110-2170MHz |
|
|
Frequency Bandwidth (Adjustable) |
Wide Range, from 0.2 to 20MHz bandwidth adjusted |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA (Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
WIFI Monitor+ Control |
Done |
|
Further detail pls click here for downloading the products specification:
Digital 2100MHz Band Selective RF Repeater.pdf
Selling Point
⭐ Intelligent to guide the installation with LCD .
⭐ Real time display the signal strength .
⭐ Automatic dormancy when no user make the calling .
⭐ Automatic alarm when installation mistake and provide the according solution .
⭐ Automatic adjust the system gain to avoid the repeater self-excitation .
⭐ Initiative reminding when the device was damaged .
⭐ Supports 10MHz from 0.2 to 10MHz bandwidth adjusted .
⭐With WIFI Monitor+Control.
Product Description
We are manufacturer, and have our own factory.
FAQ:
Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
Q2. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.
Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
Q4. Shipment Date
|
Sample |
3-5 business days |
|
<20 pcs |
7-15 days |
|
20-200 pcs |
15-24 days |
|
>200 pcs |
Negotiate |
Q5: Delivery Date of the sample by DHL/FedEx
|
USA/Canada/Europe/Asia |
3-5 days |
|
Middle East/Latin American |
5-7 days |
|
African |
3-7 days |
Q6. Payment Method
T/T, Western Union, Paypal, and Credit Card are available, but we suggest paying by Alibaba Trade Assurance, the most favor, and security method.
*Other methods please contact us with more details.
Q7. Others
(1)Frequency
We can customize Single/Double/Triple/Quand/Penta Band for cellphone signal like 2G/3G/4G/5G(GSM/CDMA/DCS/PCS/WCDMA/LTE, etc,)
(2)Output Power & Coverage Areas
|
Output Power |
Coverage Areas |
|
20dBm |
500-1500m² |
|
23dBm |
1500-2500m² |
|
25dBm |
2500-4000m² |
|
27dBm |
3000-5000m² |
|
30dBm |
5000-8000m² |
*Coverage is related to local signal strength, please contact us with your local condition, we can offer the best solution.
(3)Antenna
Cellphone signal booster must attach one indoor antenna and one outdoor antenna by two coaxial cables.
Website's price only includes a signal booster, please contact us if you need one set of devices with antenna, splitter, and coupler.
