Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS,CCC,TUV,BV, ISO
Model Number: AS-G3
Document: GSM 900MHz B07 Signal Repea...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+40---49+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Booster Gain: |
70dB |
Booster Power: |
17--20dBm |
Frequency Range: |
890-915MHz,935-960MHz |
Connector Type:: |
SMA/F |
Material: |
Zinc Alloy ,Plastic |
Booster Bandwidth: |
25MHz |
Support Network: |
2G 3G, Voice |
Warranty: |
36 Month |
Booster Gain: |
70dB |
Booster Power: |
17--20dBm |
Frequency Range: |
890-915MHz,935-960MHz |
Connector Type:: |
SMA/F |
Material: |
Zinc Alloy ,Plastic |
Booster Bandwidth: |
25MHz |
Support Network: |
2G 3G, Voice |
Warranty: |
36 Month |

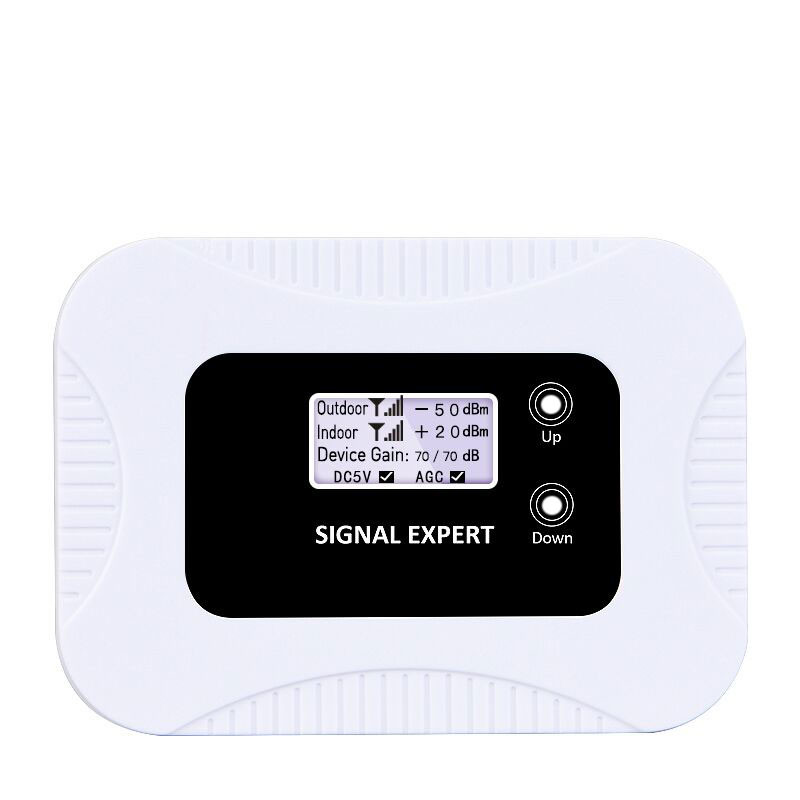

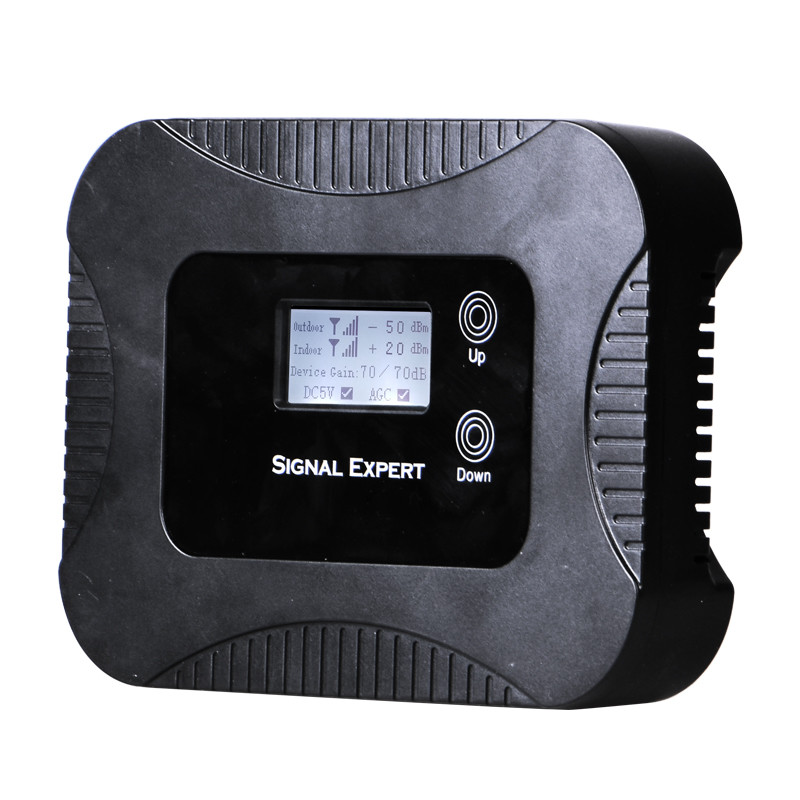

900MHz GSM Signal Booster
ATNJ Home Design Band8 900MHz GSM signal Booster Repeater for Voice Calling
Model No :AS-G3
With ALC AGC Function
Can control gain automatically. Avoid base station interference
(Band 8) 900MHz -- Uplink frequency: 890-915MHz/Downlink frequency : 935-960MHz
Network support : 2G 3G, Voice
Gain :70±2dB
Power Supply :AC110V~220V;DC+5V/2A
Connector Type: SMA-female .
Selling Point
1, Intelligent to guide the installation with LCD.
2, Real time display the signal strength.
3, Automatic dormancy when no user make the calling.
4, Automatic alarm when installation mistake and provide the according solution.
5, Automatic adjust the system gain to avoid the repeater self-excitation.
6, initiative reminding when the device was damaged.
Single Band Repeater with AGC/MGC |
||||
Model |
AS-G3 |
|||
Frenquecy Range |
UplinK:890~915MHz Downlink:935~960MHz |
|||
Working System |
GSM 900MHz |
|||
Gain |
70dB |
|||
Device Output Power |
17-20dBm |
|||
Bandwidth |
Wide Band |
|||
Ripple in Band |
≤4dB |
|||
Noise Figure @ Max.Gain |
≤6dB |
|||
V.S.W.R |
≤2dB |
|||
MTBF |
>50000Hours |
|||
Power Supply |
AC:90~265V; 50/60Hz DC:9V 3A |
|||
Power Comsumption |
<20W |
|||
Impedance Matching |
50ohm |
|||
Mechanical Specification |
||||
RF Connector |
SMA Female |
|||
Cooling |
Heatsink Convection Cooling |
|||
Dimension |
170*130*26(mm) |
|||
Net Weight |
0.35KG |
|||
Installation Type |
Wall Installation or Desk |
|||
Environment Conditions |
IP40 |
|||
LCD Intelligent Guide |
Done |
|||
Operating Temperature |
-10°C~55°C |
1.What is your advantage?
---Your inquiry will be replied in 24hours .
---OEM&ODM, for any of your customized products we can help you to design and put into product .
---All our products with 36months guarantee .
2.What is our Payment methods?
We agree T/T, Western Union, PayPal.L/C for old customers.
3.What is our Shipping & Trade terms?
Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc .
Delivered time: 1-3 business days for sample, 10-25 days for mass order .
Trade terms: EXW, FOB , CIF etc .
4. What is our Warranty and Certificates?
Our warranty is 36 months .
We have CE, ROHS, FCC certificates .
