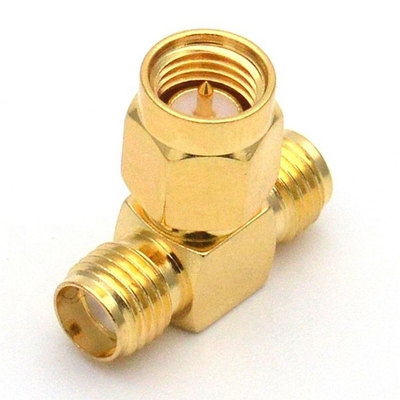

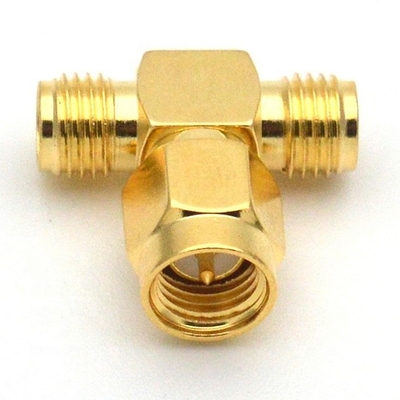

T Type Cell Phone Booster Cable Adapters SMA Male To Dual Female

T Type Cell Phone Booster Cable Adapters SMA Male To Dual Female

Brand Name: ATNJ
Model Number: SMA Male to Dual Female
MOQ: 1
Price: USD+1--3+kit
Packaging Details: Standard neutral packing3.5x3.5x3.5cm(1pcs),
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
Impedance:
50OHm
Description:
SMA Male To Dual Female T Adapter
Specifications:
SMA Male
Voltage:
335V Max
Insulation Resistance:
≥ 5000 MΩ
Frequency Range:
DC ~ 12.4GHz
Application:
Antenna Splitter
Termination:
Male To Female
Shell Material:
BRASS
Products Type:
Signal Amplifier
Supply Ability:
1000+unit+per day.
High Light:

50OHm Cell Phone Booster Cable Adapters

,

335V Cell Phone Booster Cable Adapters

,

50OHm T Type Adapter

Product Description



T Type Cell Phone Booster Cable Adapters SMA Male To Dual Female





  RF coaxial adaptor has high reliability, strong vibration resistance, mechanical and electrical characteristics of excellent performance. It is widely used in vibration and environment under the condition of radio equipment and instrument , ground launch system, and it can join all kinds of coaxial cables.



Electrical Characteristics

Name SMA connector /Adapter
Impedance 50Ω/75Ω
Frequency range 0~12.4GHz
Working Voltage 2700V max
Withstand Voltage 4000V rms

VSWR

Straight

Rigth Angle



≤ 1.2

≤ 1.3

Contact resistance

-center contact

-outer contact



≤ 5mΩ

≤ 5mΩ

Insulation resistance ≥ 10000MΩ
Temperature range - 55°C ~ + 155°C
Durability(matings) > 500



Construction

Piece part Material Plating
Body Brass Gold/Nickel plated
Center conductor Brass or Phosphor Bronze Gold or silver plated
Crimping suite Copper alloy Nickel plated
O-ring sealing 6146 silastic
Insulator PTFE

Note: We can provide other materials and plating specifications according to customers'requirements Male SMA Type Plug Connector.



Further detail pls click here for downloading the products specification:

ATNJ Mobile Signal Repeater.pdf

RF Coaxial Antenna Splitter Connector SMA Male to Dual Female T AdapterRF Coaxial Antenna Splitter Connector SMA Male to Dual Female T AdapterRF Coaxial Antenna Splitter Connector SMA Male to Dual Female T Adapter

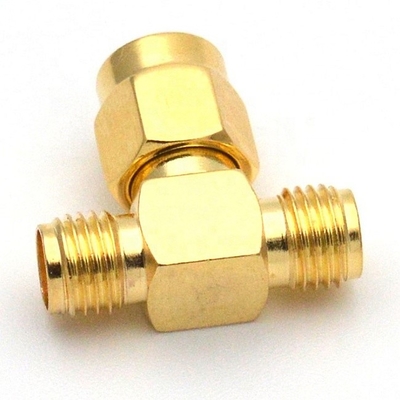

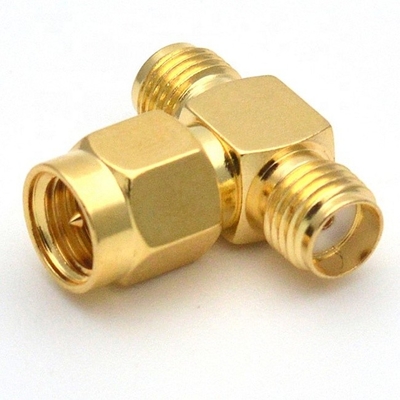

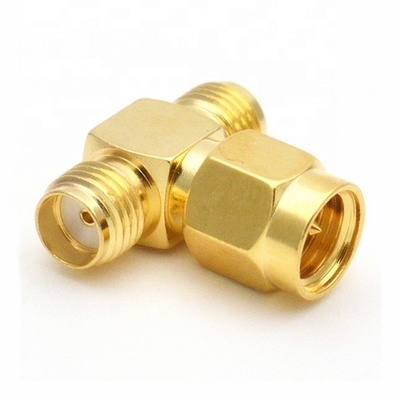

T Type Cell Phone Booster Cable Adapters SMA Male To Dual Female 3T Type Cell Phone Booster Cable Adapters SMA Male To Dual Female 4T Type Cell Phone Booster Cable Adapters SMA Male To Dual Female 5

T Type Cell Phone Booster Cable Adapters SMA Male To Dual Female 6



① . PACKAGE: Natural carton package or OEM service.
② . LEADTIME: 3-5days for samples, order depand on the quantity.
③ . SHIPPING METHOD: DHL, EMS, UPS etc as you want.

④ . RETURN and WARRANTY: 100% QC inspection before shipment. Accept exchange within 7 working days after you received. Pls contact us before you return. Our service representitive will help you.
⑤ . MINIMUM ORDER: 1 pcs, Sample order and trial order are welcome.
